Description

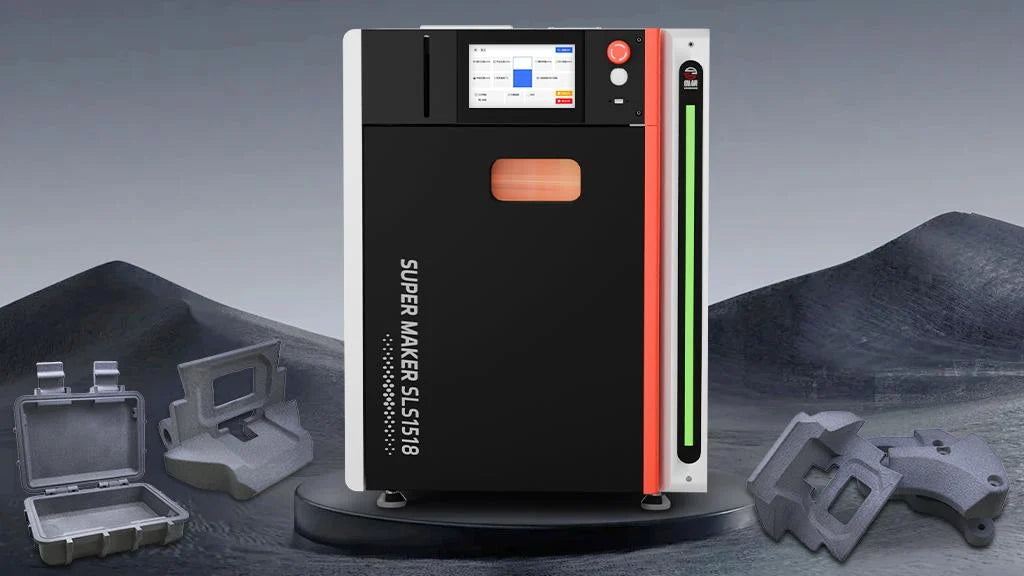

The Qaadir SLS Desktop Printer (SLS1518) is a compact yet powerful Selective Laser Sintering (SLS) system designed for insole production and small-batch industrial production. Combining a small footprint with a generous build volume, it delivers exceptional accuracy, stability, and cost efficiency, making it an ideal solution for orthotics and prosthetics professionals seeking to streamline production of functional devices and custom components.
Prints 12 Pairs of 1/2 insole shells per build.
Key Features
-
Compact & Efficient – Small machine size (600 × 550 × 800 mm) with a large build area (150 × 150 × 180 mm).
-
Low Cost of Use – Requires only 1 kg of boot powder to start a job, minimizing material waste and operating costs.
-
High Precision – Equipped with a high-precision industrial galvanometer and a 5W, 450 nm diode laser for consistent and accurate sintering.
-
Controlled Thermal Environment – 4-zone semi-gold plated far infrared heating ensures stable build conditions.
-
Air Filtration System – Integrated 2-stage carbon and HEPA filters improve safety and workshop air quality.
-
User-Friendly Operation – 7-inch touch display and VoxelDance slicing software for intuitive job setup.
-
Fast Heating & Cooling – Heats up in 15–25 minutes (from 25 °C) and cools in under 6 hours for full cylinder.
Technical Specifications
-
Build Volume: 150 × 150 × 180 mm
-
Max. Part Size: 135 × 135 × 180 mm
-
Layer Thickness: 100–150 microns (default 110 µm)
-
Laser Source: 5 W, 450 nm diode laser
-
Operating Environment: 18–28 °C, <80% RH
-
Connection Type: USB
-
Power Requirement: Standard single-phase supply
-
Compatible Materials: PA11, PA12, TPU, CF/GF reinforced powders
-
Radiation Level: Class 1 laser product (safe for workshop use)
Applications in Orthotics & Prosthetics
-
Custom Insoles & Foot Orthoses – Lightweight, precise, and patient-specific designs.
-
Prosthetic Sockets & Components – Strong, functional parts using PA12 or reinforced powders.
-
AFOs & KAFOs – Complex geometries produced with high accuracy and repeatability.
-
Small Batch Production – Manufacture durable end-use orthotic or prosthetic devices in short runs.
The Qaadir SLS1518 Desktop Printer combines industrial-grade performance with desktop convenience, offering O&P professionals a reliable tool to accelerate innovation, reduce turnaround times, and produce high-quality customized solutions for patients.
