Descripción

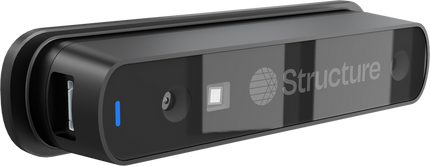

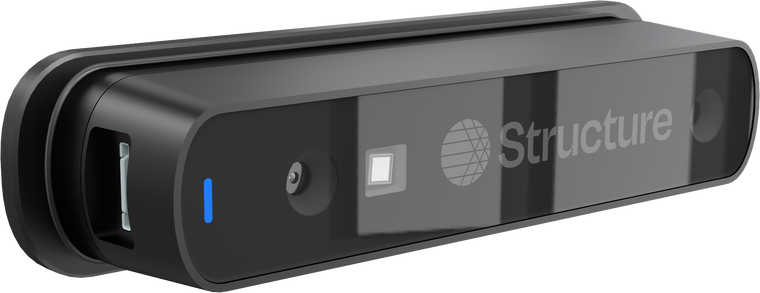

Transform your iPad into a powerful 3D scanning system with the Structure Sensor 3—a durable, high-performance depth scanner built for clinical, field, and design use.
Key Features & Benefits
-
Triple Performance, Battery & Durability
With a completely redesigned internal architecture, Structure Sensor 3 delivers 3× the scanning performance, 3× the battery life, and 3× the durability compared to its predecessor.
A custom heatsink and optimized power usage reduce thermal loads during intensive scanning.
-
Compact & Rugged Design
Encased in 30% thicker housing, the sensor features an integrated aluminum mounting plate, a rigid internal chassis, and has passed extensive durability testing—making it well suited for busy clinical or workshop environments.
-
High Accuracy & Wide Range
-
Depth accuracy: ~1 mm
-
Working range: 0.2 m (minimum) to 5 m (typical maximum)
-
Field of view: approximately 51.8° × 59.9° (Horizontal × Vertical)
-
IR projector: 940 nm Class 1 laser
-
Broad iPad Compatibility
Works with many modern iPad models, including the 9th, 10th, 11th Gen iPads, iPad Pro, iPad Air, and iPad mini devices (depending on model).
Note: different iPads require matching brackets and cable types (USB-C or Lightning) which are included or selectable.
-
All-In Bundle & Easy Setup
The package includes:
-
Structure Sensor 3 unit
-

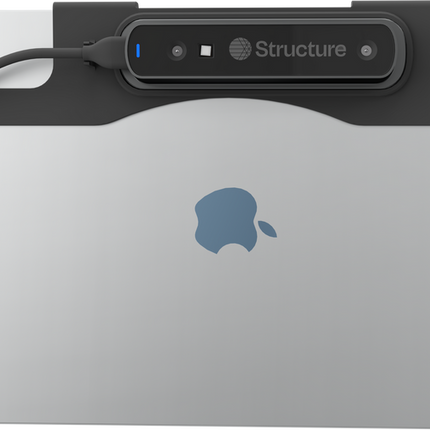

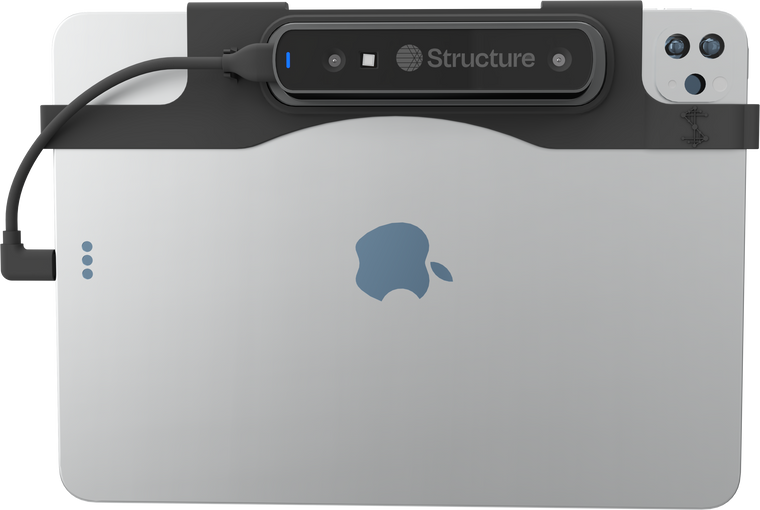

Bracket suited to your iPad model
-
USB charging / data cable
-
Magnetic screwdriver + M1.6 screws
-
User manual and startup guide
Setup is streamlined: mount the sensor, connect to your iPad, calibrate via the companion app, and start scanning.
-
Optimized for Professional Use
-
The updated Structure SDK (3.5.0) supports advanced functionality such as anatomical landmark detection, depth mapping, and scan quality feedback.
-
A free 1-year subscription to Structure Capture is included, enabling seamless mesh generation, post-processing, and cloud-based workflows.
Typical Use Cases in Orthotics & Prosthetics
-
Capture residual limb geometry (shape, volume, contours) for socket or liner design
-
Scan intact limbs, joints, and anatomical structures for custom orthoses
-
Digitally archive patient limb data for future reference or modification
-
Perform comparative scans over time to monitor limb volume changes
| Spec |
Value |
| Weight |
~115 g
|
| Dimensions |
~115.5 mm × 29.1 mm × 25.5 mm
|
| Depth resolution |
1040 × 1200 (max) |
| Frame rate |
30 fps (typical), up to 60 fps (fast mode)
|
| Battery life |
~3 hours (active) / ~48 hours (standby)
|
Structure Sensor 3 for iPad is designed to bring high-accuracy, robust 3D scanning to your iPad-based workflows—making it an ideal tool for prosthetists, orthotists, and clinicians seeking a mobile, reliable scanning solution.
