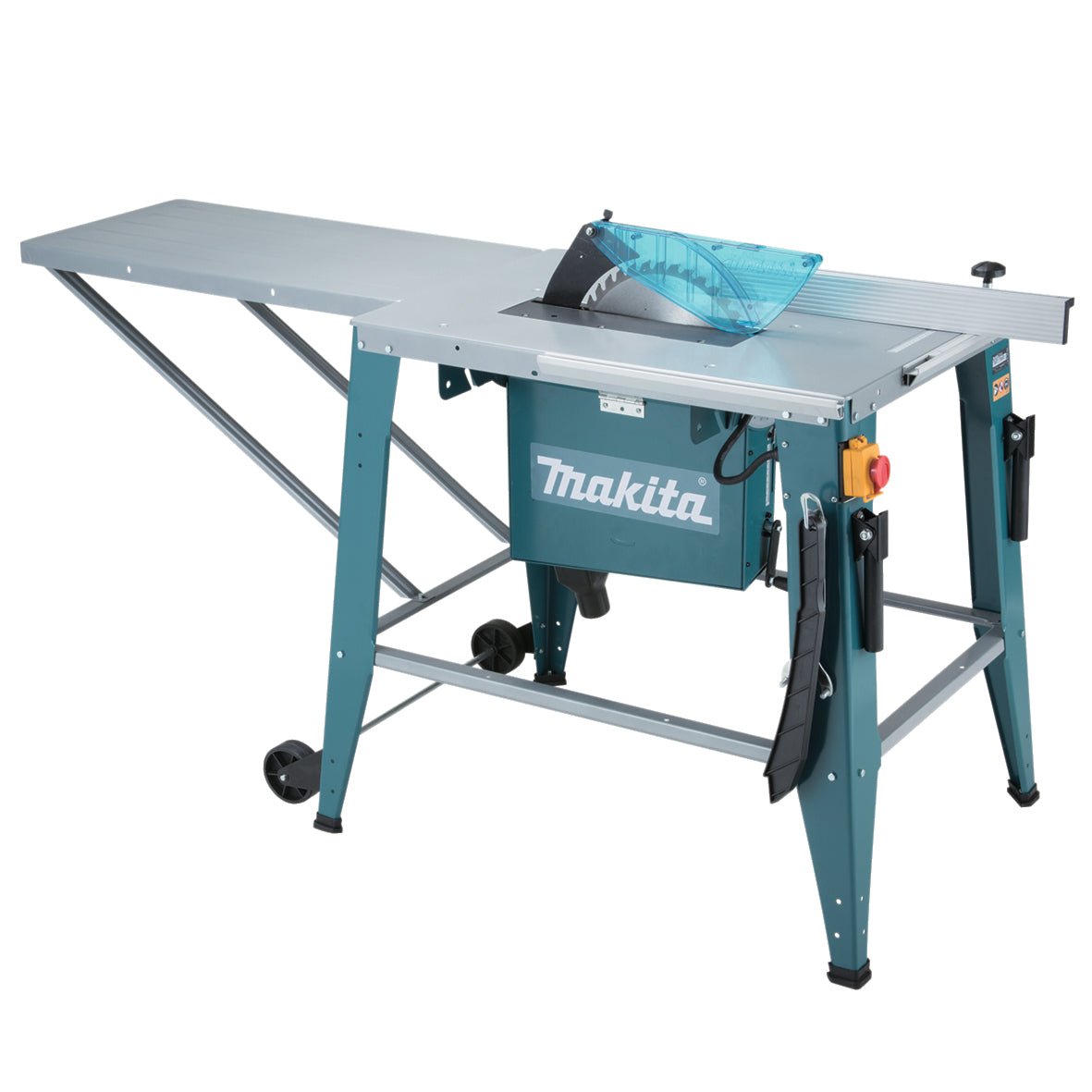

Makita 2712 Table Saw

Description

In an O&P workshop (orthotic & prosthetic device production), a high-precision table saw like the Makita 2712 can serve several critical functions. Below is how it can be integrated usefully, along with benefits and recommendations.

Use Cases / Workflow Integration

  1. Cutting thermoplastic sheets / polymer blanks

    • Many orthoses (e.g. AFO shells, KAFOs, spinal orthoses) begin from thermoplastic sheets (e.g. polypropylene, polyethylene, polycarbonate).

    • The 2712’s power and depth allow cutting thick sheets or multi-layer laminates.

    • Bevel / angled cuts (0–45°) help in shaping flanges, tapering edges, or faceting joint regions.

  2. Prototype trimming & shaping of laminated composite parts

    • For hybrid composite constructions (e.g. reinforced carbon / fiberglass plates), the saw can pre-cut laminates or backing materials before finer finishing.

    • Larger workpieces — shell blanks or support members — can be dimensioned before finishing on finer tools.

  3. Cutting of wood, composite, MDF or foam molds / patterns

    • Workshops often use male/female molds or foam cores for forms; the table saw can precisely cut wood, MDF or foam boards for casting or vacuum forming.

    • Useful in fabrication of jigs, support frames, or model prototypes.

  4. Cutting plastic (acrylic / polycarbonate) covers, fairings, or cosmetic panels

    • Prosthetic covers or cosmetic shells (transparent or colored plastics) often require accurate cuts; the saw’s smooth cutting capability is advantageous.

  5. Batch / recurring part slicing

    • Because of its stable guide and fence, the 2712 is well-suited for repetitive cuts (e.g. multiple identical blanks) with minimal setup drift, improving throughput consistency.

Benefits Specific to O&P Workshops

  • Precision & Repeatability: Strong guides and fences help produce consistent blanks, reducing error margins that would otherwise require rework.

  • Throughput & Efficiency: Being able to cut thicker materials in one pass reduces the need for multiple passes or secondary cutting.

  • Flexibility: The ability to bevel and handle oversized materials adds design flexibility — critical when customizing orthoses to patient morphology.

  • Robustness / Longevity: Induction motor and structural build support heavy usage with lower breakdown risk, which is important in a busy workshop environment.

  • Mobility: Wheels and handles mean the machine can be relocated in the workshop or in modular workshop setups.

Recommendations & Best Practices

  • Blade selection: Use high-quality carbide tipped blades suited for plastics / composite materials (fine teeth, minimal chip). Avoid using default wood blades for thermoplastics to prevent melting or chipping.

  • Feed rate & cooling: For plastic and composite cuts, use slower feed and minimal heat load. Consider external cooling or air blast to prevent melting.

  • Dust / particle control: Install proper dust extraction / vacuum connection to remove debris, especially from plastic and composite materials. The 2712 supports dust extraction.

  • Safety & jigs: Use push sticks, featherboards, and jigs, especially when cutting smaller blanks. Maintain blade guards.

  • Calibration & alignment: Frequently check fence alignment, blade squareness, and flatness; O&P parts require tight tolerances.

  • Vibration dampening & mounting: Mount on sturdy bench or base to avoid vibration transfer to softer components being cut (which can blur edges).

  • Workflow placement: Situate the saw early in the raw-material-to-finished-part flow (i.e. after sheet stock unpacking, before finer trimming/grinding) to relieve downstream tools.

Key Specifications

  • Motor / Power: 2,000 W (220 V); 1,760 W (127 V)

  • No-load speed: 3,400 min⁻¹ (rpm)

  • Blade / Cutting Capacity:
     • Max depth at 90°: 93 mm
     • Max depth at 45° bevel: 64 mm (or 58 mm, depending on spec sheet)
     • Blade size: 315 mm diameter, arbor bore 30 mm

  • Bevel Range: 0° to 45° (left)

  • Table & Dimensions:
     • Table size ~ 550 × 800 mm
     • Overall dimensions (L × W × H): 1670 × 700 × 810 mm
     • Net weight (without cable): ~52.9 kg

  • Noise & Vibration: Sound pressure ~93 dB(A); sound power ~105 dB(A)

  • Additional features:
     • Solid front & back guides, precise rip fence
     • Table extension for larger workpieces
     • Wheels and handles for portability
     • Induction motor for quieter, maintenance-free operation

Value proposition / usability highlights

  • Built for precision and durability, with strong guides and fences to maintain cut accuracy

  • Capacity to cut thick materials (up to ~93 mm) makes it suitable for heavier or thicker substrate tasks

  • Beveling and combining table extension gives flexibility for angled and oversized cutting jobs

  • Portability (wheels, handles) and robust frame make it usable in workshops where relocating the machine occasionally is needed

  • Induction motor helps reduce vibration, noise, and maintenance — beneficial in a workshop environment

Makita 2712 Table Saw

Product form

In an O&P workshop (orthotic & prosthetic device production), a high-precision table saw like the Makita 2712 can serve several... Read more

Qaadir SKU: JS1204

  • HS Code:
  • NUPCO Code:
  • OB Code:

$395.00 Excl. VAT

    Description

    In an O&P workshop (orthotic & prosthetic device production), a high-precision table saw like the Makita 2712 can serve several critical functions. Below is how it can be integrated usefully, along with benefits and recommendations.

    Use Cases / Workflow Integration

    1. Cutting thermoplastic sheets / polymer blanks

      • Many orthoses (e.g. AFO shells, KAFOs, spinal orthoses) begin from thermoplastic sheets (e.g. polypropylene, polyethylene, polycarbonate).

      • The 2712’s power and depth allow cutting thick sheets or multi-layer laminates.

      • Bevel / angled cuts (0–45°) help in shaping flanges, tapering edges, or faceting joint regions.

    2. Prototype trimming & shaping of laminated composite parts

      • For hybrid composite constructions (e.g. reinforced carbon / fiberglass plates), the saw can pre-cut laminates or backing materials before finer finishing.

      • Larger workpieces — shell blanks or support members — can be dimensioned before finishing on finer tools.

    3. Cutting of wood, composite, MDF or foam molds / patterns

      • Workshops often use male/female molds or foam cores for forms; the table saw can precisely cut wood, MDF or foam boards for casting or vacuum forming.

      • Useful in fabrication of jigs, support frames, or model prototypes.

    4. Cutting plastic (acrylic / polycarbonate) covers, fairings, or cosmetic panels

      • Prosthetic covers or cosmetic shells (transparent or colored plastics) often require accurate cuts; the saw’s smooth cutting capability is advantageous.

    5. Batch / recurring part slicing

      • Because of its stable guide and fence, the 2712 is well-suited for repetitive cuts (e.g. multiple identical blanks) with minimal setup drift, improving throughput consistency.

    Benefits Specific to O&P Workshops

    • Precision & Repeatability: Strong guides and fences help produce consistent blanks, reducing error margins that would otherwise require rework.

    • Throughput & Efficiency: Being able to cut thicker materials in one pass reduces the need for multiple passes or secondary cutting.

    • Flexibility: The ability to bevel and handle oversized materials adds design flexibility — critical when customizing orthoses to patient morphology.

    • Robustness / Longevity: Induction motor and structural build support heavy usage with lower breakdown risk, which is important in a busy workshop environment.

    • Mobility: Wheels and handles mean the machine can be relocated in the workshop or in modular workshop setups.

    Recommendations & Best Practices

    • Blade selection: Use high-quality carbide tipped blades suited for plastics / composite materials (fine teeth, minimal chip). Avoid using default wood blades for thermoplastics to prevent melting or chipping.

    • Feed rate & cooling: For plastic and composite cuts, use slower feed and minimal heat load. Consider external cooling or air blast to prevent melting.

    • Dust / particle control: Install proper dust extraction / vacuum connection to remove debris, especially from plastic and composite materials. The 2712 supports dust extraction.

    • Safety & jigs: Use push sticks, featherboards, and jigs, especially when cutting smaller blanks. Maintain blade guards.

    • Calibration & alignment: Frequently check fence alignment, blade squareness, and flatness; O&P parts require tight tolerances.

    • Vibration dampening & mounting: Mount on sturdy bench or base to avoid vibration transfer to softer components being cut (which can blur edges).

    • Workflow placement: Situate the saw early in the raw-material-to-finished-part flow (i.e. after sheet stock unpacking, before finer trimming/grinding) to relieve downstream tools.

    Key Specifications

    • Motor / Power: 2,000 W (220 V); 1,760 W (127 V)

    • No-load speed: 3,400 min⁻¹ (rpm)

    • Blade / Cutting Capacity:
       • Max depth at 90°: 93 mm
       • Max depth at 45° bevel: 64 mm (or 58 mm, depending on spec sheet)
       • Blade size: 315 mm diameter, arbor bore 30 mm

    • Bevel Range: 0° to 45° (left)

    • Table & Dimensions:
       • Table size ~ 550 × 800 mm
       • Overall dimensions (L × W × H): 1670 × 700 × 810 mm
       • Net weight (without cable): ~52.9 kg

    • Noise & Vibration: Sound pressure ~93 dB(A); sound power ~105 dB(A)

    • Additional features:
       • Solid front & back guides, precise rip fence
       • Table extension for larger workpieces
       • Wheels and handles for portability
       • Induction motor for quieter, maintenance-free operation

    Value proposition / usability highlights

    • Built for precision and durability, with strong guides and fences to maintain cut accuracy

    • Capacity to cut thick materials (up to ~93 mm) makes it suitable for heavier or thicker substrate tasks

    • Beveling and combining table extension gives flexibility for angled and oversized cutting jobs

    • Portability (wheels, handles) and robust frame make it usable in workshops where relocating the machine occasionally is needed

    • Induction motor helps reduce vibration, noise, and maintenance — beneficial in a workshop environment
