nora® Lunatec combi T1 is a three layer vulcanised expanded EVA composite sheet developed for orthopaedic insoles and foot beddings requiring excellent cushioning, shear force reduction, and reliable stabilising support. The material combines three EVA layers with different hardness levels that are permanently fused during manufacturing, creating a smooth transition between layers without the need for adhesive bonding. The special design of nora® Lunatec combi T1 features a softer middle layer embedded between two firmer layers. This structure reduces shear forces during walking and relieves stress on the musculoskeletal system. The result is improved comfort, excellent damping properties, and effective pressure distribution, making the material particularly suitable for rheumatic, diabetic, and highly sensitive feet. Because the layers are vulcanised together during production, the composite sheet offers consistent quality, clean processing, and reliable performance without displacement, glue lines, or hardening caused by adhesive films. Material construction Top layer Material: nora® Lunasoft SLW Hardness: approx. 30 Shore A Density: approx. 0.20 g/cm³ Colour: 80 anthracite Thickness: approx. 3 mm Middle cushioning layer Material: nora® Lunasoft Z Hardness: approx. 25 Shore A Density: approx. 0.17 g/cm³ Colour: 307 medium grey Thickness: approx. 4 mm Base stabilising layer Material: nora® Lunasoft AL Hardness: approx. 52 Shore A Density: approx. 0.26 g/cm³ Colour: 09 white Thickness: approx. 8 mm Composite sheet Three layer vulcanised construction Trimmed edges for precise processing Smooth transition between hardness levels No adhesive between materials Intended applications Orthopaedic foot beddings Insoles for rheumatic feet Insoles for sensitive feet Diabetic insoles Cushioning insoles with stabilising base Pressure relief foot beddings Orthopaedic shoe insoles Multilayer orthotic constructions Key properties Excellent cushioning and damping Very good shear force reduction High comfort for sensitive feet Soft middle layer for pressure relief Integrated stabilising base Secure composite without glue No displacement during thermoforming No bubble formation at joints Reliable dimensional stability Advantages of Lunatec combi composite sheets Ready made multilayer material No gluing required between layers Faster and cleaner processing Consistent material quality Reduced production time Improved comfort for high risk patients Efficient insole manufacture Processing notes Thermoformable using standard EVA processing Suitable for vacuum forming and deep drawing Additional stabilising materials such as Norit, Lunacell, or Lunalight can be added if required Adapt pressure according to material flexibility nora® Lunatec combi T1 is ideal for orthopaedic shoe engineering and prosthetic orthotic workshops requiring a multilayer EVA composite with excellent damping, shear reduction, and stabilising support for the manufacture of high quality orthopaedic insoles and foot beddings for rheumatic, diabetic, and highly sensitive feet.

Read more less

nora® Lunatec combi cork 1 is a vulcanised composite expanded EVA sheet developed for the manufacture of durable orthopaedic insoles and foot beddings requiring a combination of resilient cushioning and strong stabilising support. The sheet combines a permanently resilient EVA cushioning layer with a high cork content stabilising layer, permanently fused during manufacturing to create a secure composite without the need for adhesive bonding. The stabilising layer contains a high proportion of cork, providing excellent rigidity and long term dimensional stability, making the material ideal for orthopaedic insoles that must withstand high mechanical stress. The upper cushioning layer made from nora® Lunalastik offers permanently resilient comfort together with a slightly roughened, velvety surface that is well suited for attaching leather covers or top layers. Because the layers are vulcanised together during production, the composite sheet provides consistent quality, clean processing, and reliable bonding without displacement, bubble formation, or hardening caused by adhesive films. Material construction Top cushioning layer Material: nora® Lunalastik Hardness: approx. 25 Shore A Density: approx. 0.23 g/cm³ Colour: 07 beige Thickness: approx. 6 mm Base stabilising layer with cork content Material: nora® Lunatec cork H Hardness: approx. 50 Shore A Density: approx. 0.35 g/cm³ Colour: 205 cork Thickness: approx. 8 mm Total thickness Approx. 14 mm Format Approx. 1120 x 880 mm // 44.1 x 34.6 inch Composite sheet Trimmed edges for precise processing Permanently vulcanised layers High cork fraction stabilising layer No adhesive between materials Uniform bonding during manufacture Intended applications Orthopaedic foot beddings Supporting insoles Insoles for flat feet, splay feet, hollow feet, and skew feet Stabilising orthopaedic insoles Insoles for high load applications Base material for orthopaedic shoe insoles Insoles with leather top covers Multilayer orthotic constructions Key properties Permanently resilient cushioning layer High stability cork reinforced base Excellent durability under load Very good dimensional stability Roughened surface suitable for leather covers Secure composite without glue No displacement during thermoforming No bubble formation at joints No hardening caused by adhesive film Advantages of Lunatec combi cork composite sheets Ready made multilayer material No gluing required between layers Efficient and clean processing High strength composite structure Ideal for durable insoles Time and cost savings in workshop production Processing notes Thermoformable using standard EVA processing methods Suitable for vacuum forming and deep drawing Additional stabilising materials such as Norit, Lunacell, or Lunalight can be added if required Adapt pressure according to material flexibility nora® Lunatec combi cork 1 is ideal for orthopaedic shoe engineering and prosthetic orthotic workshops requiring a strong, durable composite material with cork reinforced stability and permanently resilient cushioning for the manufacture of high quality orthopaedic foot beddings and supporting insoles.

Read more less

nora® Lunatec combi motion T2 is a three layer vulcanised expanded EVA composite sheet developed for the manufacture of orthopaedic insoles and foot beddings for painful, pressure sensitive, and high risk feet. The material combines an extremely soft bedding layer with resilient cushioning and a stabilising base, permanently fused during manufacturing to create a secure multilayer structure without the need for adhesive bonding. The upper layer made from nora® Lunatec motion provides very soft bedding properties and excellent absorption of shear forces during walking. This helps reduce stress on sensitive areas and improves comfort for patients with painful feet, rheumatic conditions, or diabetes. The lower layers provide permanent elasticity together with structural stability, ensuring that the finished insole maintains shape and support even under increased load. Because the three layers are vulcanised together during production, the composite sheet offers consistent quality, clean processing, and strong bonding without displacement, glue lines, or hardening caused by adhesive films. Material construction Top bedding layer Material: nora® Lunatec motion Hardness: approx. 12 Shore A Density: approx. 0.13 g/cm³ Colour: 56 stone grey Thickness: approx. 7 mm Middle cushioning layer Material: nora® Lunasoft Z Hardness: approx. 25 Shore A Density: approx. 0.16 g/cm³ Colour: 345 green Thickness: approx. 5 mm Base stabilising layer Material: nora® Lunatec CAD 35 Hardness: approx. 35 Shore A Density: approx. 0.20 g/cm³ Colour: 60 bright grey Thickness: approx. 8 mm Total thickness Approx. 20 mm Format Approx. 1000 x 625 mm // 39.4 x 31.5 inch Composite sheet Trimmed edges for accurate processing Three layer vulcanised construction No adhesive between layers Smooth transition between hardness levels Intended applications Thick orthopaedic foot beddings Soft bedding insoles Diabetes adapted insoles Insoles for painful feet Rheumatic foot support Insoles for orthopaedic footwear Pressure relief foot beddings Insoles for sensitive feet Multilayer orthotic constructions Key properties Extremely soft top layer for pressure relief Excellent absorption of shear forces Very good pressure distribution High comfort for sensitive and painful feet Integrated stabilising base Permanently elastic structure Secure composite without glue No displacement during forming High durability Lightweight construction Advantages of Lunatec combi motion composite sheets Ready made multilayer material No bonding required between layers Faster and cleaner production Consistent quality Reduced manufacturing time Ideal for deep drawing production Cost and time savings in workshop fabrication Processing notes Thermoformable using standard EVA processing Suitable for vacuum forming and deep drawing Can be processed without adhesive Adapt pressure according to material softness Recommended for single step forming of complete foot beddings nora® Lunatec combi motion T2 is ideal for orthopaedic shoe engineering, prosthetic and orthotic workshops, and diabetic foot care applications where maximum cushioning, shear reduction, and reliable structural support are required for the manufacture of high quality orthopaedic insoles and foot beddings.

Read more less

nora® Lunatec combi motion 1 is a vulcanised composite expanded EVA sheet designed for orthopaedic insoles and foot beddings requiring maximum cushioning together with reliable stabilising support. The material combines an extremely soft bedding layer with a firm stabilising base, permanently bonded during the manufacturing process without the need for adhesive. The upper layer of nora® Lunatec motion provides very soft bedding properties and excellent absorption of shear forces generated during walking. This helps reduce stress on the musculoskeletal system and can significantly improve comfort for patients with painful or sensitive feet. The stabilising base layer of nora® Lunasoft SL ensures that the insole maintains its shape and function even under increased load. Because the layers are vulcanised together during production, the composite sheet offers secure bonding, clean processing, and consistent quality without displacement, bubble formation, or hardening caused by adhesive films. Material construction Top bedding layer Material: nora® Lunatec motion Hardness: approx. 12 Shore A Density: approx. 0.13 g/cm³ Colour: 06 silk Thickness: approx. 6 mm Base stabilising layer Material: nora® Lunasoft SL Hardness: approx. 40 Shore A Density: approx. 0.20 g/cm³ Colour: 27 light blue Thickness: approx. 10 mm Composite sheet Trimmed edges for precise processing Permanently vulcanised layers No adhesive between materials Uniform bonding during manufacture Intended applications Orthopaedic insoles Diabetic insoles Insoles for rheumatic foot conditions Foot beddings for sensitive feet Cushioning insoles for painful joints Pressure relief insoles Shear reducing foot beddings Soft orthotic constructions Damping layers inside footwear Key properties Extremely soft bedding layer Excellent shear force absorption Reduces pressure and pain during walking High comfort for sensitive feet Integrated stabilising base layer Secure composite without glue No displacement during thermoforming No bubble formation at joints Reliable dimensional stability Advantages of Lunatec combi motion composite sheets Ready made multilayer material No gluing required between layers Efficient and clean processing Consistent material quality Improved comfort for high risk patients Time saving in workshop production Processing notes Thermoformable at approx. 110°C to 130°C (230°F to 266°F) Suitable for vacuum forming and deep drawing Additional EVA materials can be bonded if required Adapt pressure according to the softness of the material nora® Lunatec combi motion 1 is ideal for orthopaedic shoe engineering, prosthetic and orthotic workshops, and diabetic foot care applications where maximum cushioning, shear reduction, and reliable support are required for patients with pain sensitive, diabetic, geriatric, or rheumatic feet.

Read more less

nora® Lunatec combi 8 is a vulcanised composite expanded EVA sheet developed for the efficient production of sporty, durable, and stabilising orthopaedic insoles and foot beddings. The sheet combines two high performance nora® EVA materials that are permanently bonded together during the manufacturing process, ensuring secure strength without the need for adhesive bonding during fabrication. This composite combines the permanently resilient cushioning properties of nora® Lunatec EP with the strong stabilising support of nora® Lunatec SE. The result is a material that offers excellent elastic recovery, reliable structural stability, and high durability, making it ideal for modern orthotic insoles, sports insoles, and applications where both comfort and support are required. Because the layers are vulcanised together during production, the composite sheet provides consistent quality, clean processing, and reliable performance without the risk of layer displacement, bubble formation, or hardening caused by adhesive films. Material construction Top cushioning layer Material: nora® Lunatec EP Hardness: approx. 22 Shore A Density: approx. 0.20 g/cm³ Colour: 131 red Thickness: approx. 4 mm Base stabilising layer Material: nora® Lunatec SE Hardness: approx. 45 Shore A Density: approx. 0.28 g/cm³ Colour: 81 black Thickness: approx. 8 mm Composite sheet Trimmed edges for accurate processing Permanently vulcanised layers No adhesive between materials Uniform bonding during manufacture Intended applications Sport insoles Long sole orthotic insoles Foot beddings with high resilience Stabilising orthopaedic insoles Insoles for active use Orthotic footwear insoles Functional orthotic constructions Cushioning and support layers in orthoses High stress insole applications Key properties Permanently resilient cushioning Integrated stabilising layer Excellent elastic recovery High durability under load Secure composite without glue No displacement during thermoforming No bubble formation at joints No hardening caused by adhesive film Reliable dimensional stability Advantages of Lunatec combi composite sheets No gluing required between layers Faster and cleaner production Reduced processing steps Consistent material quality High retention of volume during forming Efficient insole manufacture Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) Suitable for vacuum forming and deep drawing Additional EVA materials can be bonded if required Adapt pressure according to material flexibility nora® Lunatec combi 8 is ideal for orthopaedic shoe engineering and prosthetic orthotic workshops requiring a composite EVA sheet that combines high resilience cushioning with strong stabilising support for modern sports insoles, durable orthotic devices, and high performance foot beddings.

Read more less

nora® Lunatec combi 7 is a vulcanised composite expanded EVA sheet designed for the efficient manufacture of orthopaedic insoles, foot beddings, and soft orthotic components requiring a combination of cushioning comfort and structural stability. The sheet combines two proven nora® EVA materials that are permanently bonded during the manufacturing process, creating a secure composite without the need for adhesive during fabrication. This combination uses nora® Lunasoft SLW as a permanently resilient cushioning layer together with nora® Lunasoft SL as a stabilising layer. The result is a composite sheet that provides soft bedding, reliable support, and excellent durability, making it suitable for orthopaedic, prosthetic, and rehabilitation applications, especially for diabetic, geriatric, and rheumatic foot management. Because the layers are vulcanised together during production, the material offers consistent strength, clean processing, and reliable performance without displacement, bubble formation, or hardening caused by adhesive films. Material construction Top cushioning layer Material: nora® Lunasoft SLW Hardness: approx. 30 Shore A Density: approx. 0.20 g/cm³ Colour: 07 beige Thickness: approx. 3 mm Base stabilising layer Material: nora® Lunasoft SL Hardness: approx. 40 Shore A Density: approx. 0.20 g/cm³ Colour: 19 stone Thickness: approx. 4 mm Composite sheet Trimmed edges for accurate processing Permanently vulcanised layers No adhesive between materials Uniform material bonding during manufacture Intended applications Orthopaedic insoles Foot beddings Diabetic insoles Geriatric foot support Rheumatic foot management Soft wall funnel shaped sleeves Soft prosthetic sockets Cushioning and stabilising orthotic layers Multilayer orthotic constructions Key properties Permanently resilient cushioning layer Integrated stabilising support layer High durability under load Good elastic recovery Secure composite without glue No displacement during thermoforming No bubble formation at joints No hardening caused by adhesive film Reliable volume retention during forming Advantages of Lunatec combi composite sheets No gluing required between layers Faster and cleaner production Reduced processing steps Consistent material quality Improved dimensional stability Efficient insole manufacture Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) Suitable for vacuum forming and deep drawing Additional EVA materials can be bonded if required Adapt pressure according to material flexibility nora® Lunatec combi 7 is ideal for orthopaedic shoe engineering and prosthetic orthotic workshops requiring a ready made composite EVA sheet that combines cushioning comfort with reliable stabilising support for efficient, high quality insole and orthotic production.

Read more less

nora® Lunatec combi 6 is a vulcanised composite expanded EVA sheet developed for the production of sporty, durable, and stabilising orthopaedic insoles and foot beddings. The sheet combines two proven nora® EVA materials that are permanently bonded during the manufacturing process, creating a strong composite without the need for adhesive bonding during fabrication. This material combines the permanently resilient cushioning properties of nora® Lunasoft SLW with the stabilising strength of nora® Lunasoft AL. The result is a composite sheet that provides excellent comfort together with reliable support, making it ideal for modern insoles, sports orthotics, and applications where both flexibility and structural stability are required. Because the layers are vulcanised together during production, the composite sheet ensures consistent strength, clean processing, and reliable performance without the risk of layer displacement, bubble formation, or hardening caused by adhesive films. Material construction Top cushioning layer Material: nora® Lunasoft SLW Hardness: approx. 30 Shore A Density: approx. 0.20 g/cm³ Colour: 137 terra Thickness: approx. 4 mm Base stabilising layer Material: nora® Lunasoft AL Hardness: approx. 52 Shore A Density: approx. 0.26 g/cm³ Colour: 81 black Thickness: approx. 10 mm Composite sheet Trimmed edges for accurate processing Permanently vulcanised layers No adhesive between materials Intended applications Sporty orthopaedic insoles Long sole sports insoles Foot beddings for active use Stabilising orthotic insoles Insoles requiring cushioning and support Orthopaedic footwear insoles Functional orthotic constructions High stress insole applications Key properties Permanently resilient cushioning Integrated stabilising layer Excellent durability under load Good elastic recovery Composite sheet vulcanised during manufacture No adhesive required between layers No displacement during thermoforming No bubble formation at joints No hardening caused by glue film Suitable for modern sporty orthotic designs Advantages of Lunatec combi composite sheets Efficient insole manufacture Reduced processing steps Consistent material quality Secure bonding without glue Improved dimensional stability Clean thermoforming Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) No bonding required between composite layers Additional EVA materials can be bonded if required Suitable for vacuum forming and deep drawing nora® Lunatec combi 6 is ideal for orthopaedic shoe engineering and orthotic workshops requiring a composite material that combines cushioning comfort with strong stabilising support, making it suitable for sports insoles, modern foot beddings, and high performance orthotic applications.

Read more less

nora® Lunatec combi 5 is a vulcanised composite expanded EVA sheet developed for the production of thin, permanently resilient orthopaedic insoles and cushioning components. The sheet combines two proven nora® EVA materials that are permanently bonded during the manufacturing process, creating a stable composite without the need for adhesive bonding during fabrication. This material combines the durable cushioning properties of nora® Lunalastik with the resilient support of nora® Lunasoft SLW, resulting in a lightweight composite sheet that offers excellent comfort, reliable shock absorption, and long-term elasticity even in thin constructions. The combination is especially suitable for insoles that require high flexibility together with permanent resilience. Because the layers are vulcanised together during production, the composite sheet provides consistent strength, clean processing, and reliable performance without the risk of layer displacement, bubble formation, or hardening caused by adhesive films. Material construction Top cushioning layer Material: nora® Lunalastik Hardness: approx. 25 Shore A Density: approx. 0.23 g/cm³ Colour: 60 bright grey Thickness: approx. 3 mm Base cushioning layer Material: nora® Lunasoft SLW Hardness: approx. 30 Shore A Density: approx. 0.20 g/cm³ Colour: 111 royal blue Thickness: approx. 4 mm Composite sheet Trimmed edges for accurate processing Permanently vulcanised layers No adhesive between materials Intended applications Thin orthopaedic insoles Long sole insoles with soft forefoot bedding Cushioning layers for orthoses Cushioning components for prostheses Soft prosthetic sockets Comfort insoles for sensitive feet Flexible orthotic constructions Lightweight orthopaedic footwear insoles Key properties Permanently resilient cushioning Excellent comfort in thin constructions Good shock absorption High elastic recovery Composite sheet vulcanised during manufacture No adhesive required between layers No displacement during thermoforming No bubble formation at joints No hardening caused by glue film Suitable for precise orthotic work Advantages of Lunatec combi composite sheets Efficient insole production Reduced processing steps Consistent material quality Reliable bonding without glue Improved dimensional stability Clean thermoforming Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) No bonding required between composite layers Additional EVA materials can be bonded if required Suitable for vacuum forming and deep drawing nora® Lunatec combi 5 is ideal for orthopaedic shoe engineering and orthotic workshops requiring a thin, permanently resilient composite material for insoles, orthoses, prosthetic cushioning, and soft socket applications where comfort, flexibility, and durability are essential.

Read more less

nora® Lunatec combi 4 is a vulcanised composite expanded EVA sheet developed for orthopaedic insoles and foot beddings requiring soft bedding comfort together with permanently resilient cushioning. The sheet combines two proven nora® EVA materials that are permanently bonded during the manufacturing process, creating a stable composite without the need for adhesive bonding during fabrication. This combination integrates the soft bedding properties of nora® Lunairflex with the durable cushioning performance of nora® Lunalastik. The result is a composite material designed for sensitive feet exposed to higher mechanical stress, providing excellent pressure distribution, reliable resilience, and long-term comfort. The material is especially suitable for diabetic, geriatric, and rheumatic foot care, where both cushioning and structural support are required. Because the layers are vulcanised together during production, the composite sheet ensures consistent strength, clean processing, and reliable performance without the risk of layer displacement, bubble formation, or hardening caused by adhesive films. Material construction Top bedding layer Material: nora® Lunairflex Hardness: approx. 22 Shore A Density: approx. 0.12 g/cm³ Colour: 07 beige Thickness: approx. 3 mm Base cushioning layer Material: nora® Lunalastik Hardness: approx. 25 Shore A Density: approx. 0.23 g/cm³ Colour: 09 white Thickness: approx. 6 mm Composite sheet Trimmed edges for accurate processing Permanently vulcanised layers No adhesive between materials Intended applications Base material for orthopaedic foot beddings Diabetes adapted insoles Insoles for sensitive feet Geriatric foot orthotics Rheumatic foot conditions Increased stress orthotic applications Cushioning insoles with resilient support Custom orthopaedic footwear insoles Recommended combinationsFor higher stability, the use of an additional stabilising layer such as nora® Lunasoft AL nora® Lunalight A nora® Lunacellis recommended depending on diagnosis, patient weight, and load requirements. Key properties Soft bedding with resilient cushioning Excellent pressure distribution Permanently bonded composite sheet No adhesive required between layers No displacement during thermoforming No bubble formation at joints No hardening caused by glue film High walking comfort Suitable for high stress applications Reliable durability Advantages of Lunatec combi composite sheets Faster fabrication Reduced processing steps Consistent material quality Secure bonding without glue Improved dimensional stability Clean thermoforming Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) No bonding required between composite layers Additional EVA materials can be bonded if required Suitable for vacuum forming and deep drawing nora® Lunatec combi 4 is an ideal composite material for orthopaedic shoe engineering and orthotic workshops requiring a soft but durable base for diabetic, geriatric, and rheumatic foot beddings, combining excellent bedding comfort with permanently resilient cushioning for higher load applications.

Read more less

nora® Lunatec combi 3 is a vulcanised composite expanded EVA sheet designed for the manufacture of orthopaedic insoles and foot beddings requiring durable cushioning, stability, and long-term resilience. The material combines two proven nora® EVA qualities that are permanently bonded during the manufacturing process, creating a reliable composite sheet without the need for adhesive bonding during fabrication. This combination integrates the permanently resilient cushioning properties of nora® Lunalastik with the supportive and durable characteristics of nora® Lunasoft SLW. The result is a composite material that offers excellent pressure distribution together with stable support, making it particularly suitable for diabetic, geriatric, and rheumatic foot care where both comfort and durability are required. Because the layers are vulcanised together during production, the composite sheet ensures consistent strength, clean processing, and reliable performance without the risk of layer displacement, bubble formation, or hardening caused by adhesive films. Material construction Top cushioning layer Material: nora® Lunalastik Hardness: approx. 25 Shore A Density: approx. 0.23 g/cm³ Colour: 07 beige Thickness: approx. 6 mm Base cushioning and stabilising layer Material: nora® Lunasoft SLW Hardness: approx. 30 Shore A Density: approx. 0.20 g/cm³ Colour: 19 stone Thickness: approx. 10 mm Composite sheet Trimmed edges for accurate processing Permanently vulcanised layers No adhesive between materials Intended applications Base material for orthopaedic foot beddings Diabetes adapted insoles Insoles for sensitive feet Geriatric foot orthotics Rheumatic foot conditions Medium stress orthotic applications Cushioning insoles with stabilising support Custom orthopaedic footwear insoles Key properties Permanently resilient cushioning Good stability under load Excellent pressure distribution Composite sheet vulcanised during manufacture No adhesive required between layers No displacement during thermoforming No bubbles at material joints No hardening caused by glue film High walking comfort Reliable durability Advantages of Lunatec combi composite sheets Faster insole fabrication Reduced processing steps Consistent material quality Secure bonding without glue Improved dimensional stability Clean thermoforming Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) No bonding required between composite layers Additional EVA materials can be bonded if required Suitable for vacuum forming and deep drawing nora® Lunatec combi 3 is ideal for orthopaedic shoe engineering and orthotic workshops requiring a durable composite base material for diabetic, geriatric, and rheumatic foot beddings, providing permanently resilient cushioning together with reliable support for medium load applications.

Read more less

nora® Lunatec combi 2 is a vulcanised composite expanded EVA sheet designed for the manufacture of orthopaedic insoles and foot beddings requiring high cushioning, stability, and long-term resilience. The sheet combines two proven nora® materials that are permanently bonded during the manufacturing process, creating a reliable composite without the need for adhesive bonding during fabrication. This combination integrates the soft bedding properties of nora® Lunairflex with the permanently resilient cushioning of nora® Lunasoft SLW. The result is a composite material that offers excellent pressure distribution together with durable support, making it particularly suitable for sensitive feet and medical orthotic applications. Because the materials are vulcanised together at production stage, the composite sheet provides consistent strength, stable processing, and reliable performance without the risk of layer separation, bubbles, or hardening caused by adhesives. Material construction Top bedding layer Material: nora® Lunairflex Hardness: approx. 22 Shore A Density: approx. 0.12 g/cm³ Colour: 07 beige Thickness: approx. 6 mm Base cushioning layer Material: nora® Lunasoft SLW Hardness: approx. 30 Shore A Density: approx. 0.20 g/cm³ Colour: 17 grey beige Thickness: approx. 10 mm Trimmed composite sheet Edges trimmed for accurate processing Permanently vulcanised layers No adhesive between materials Intended applications Base material for orthopaedic foot beddings Diabetes adapted insoles Insoles for sensitive feet Geriatric foot orthotics Rheumatic foot conditions Moderate stress orthotic applications Cushioning insoles with stabilising support Custom orthopaedic footwear insoles Key properties Soft bedding with resilient support Excellent pressure distribution Permanently bonded composite sheet No adhesive required between layers No displacement during thermoforming No bubble formation at joints No hardening caused by glue film High walking comfort Good durability under load Suitable for medical orthotic use Advantages of Lunatec combi composite sheets Faster fabrication Reduced processing steps Consistent material quality Reliable bonding without glue Improved dimensional stability Clean thermoforming Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) No bonding required between composite layers Additional EVA materials can be bonded if needed Suitable for vacuum forming and deep drawing nora® Lunatec combi 2 is an ideal composite material for orthopaedic shoe engineering and orthotic workshops requiring a soft but stable base for diabetic, geriatric, and sensitive foot applications, combining excellent bedding comfort with permanently resilient support.

Read more less

nora® Lunatec combi 1 is a vulcanised composite expanded EVA sheet designed as a ready-to-use base material for orthopaedic insoles and foot beddings. The material combines proven nora® qualities that are permanently bonded during the manufacturing process, creating a stable and resilient composite sheet without the need for adhesive bonding. The integrated cushioning layer made from nora® Lunalastik provides permanently resilient support with excellent shock absorption and stabilising function. This makes Lunatec combi 1 especially suitable for insoles exposed to higher mechanical stress, while still maintaining high walking comfort and long-term durability. Because the layers are vulcanised together during production, the composite sheet offers consistent structure, reliable strength, and easier processing compared with glued materials. The material can be thermoformed directly without risk of layer displacement, bubble formation, or hardening caused by adhesive films. Material construction Cushioning and stabilising layer Material: nora® Lunalastik Hardness: approx. 25 Shore A Density: approx. 0.23 g/cm³ Colour: 07 beige Thickness: approx. 6 mm Formats Composite sheet with trimmed edges for accurate processing Intended applications Base layer for orthopaedic foot beddings Insoles for orthopaedic footwear Cushioning and stabilising insole constructions Insoles for geriatric patients Diabetic foot orthotics Rheumatic foot conditions Sports insoles with resilient support High stress orthotic applications Key properties Permanently resilient cushioning Stabilising function under load High durability and elastic recovery Composite sheet vulcanised during manufacture No adhesive required between layers No displacement during thermoforming No bubbles at material joints No hardening caused by glue film Consistent material quality Suitable for high load insoles Advantages of Lunatec combi composite sheets Faster insole production Reduced processing steps No gluing required Improved dimensional stability Higher volume retention during forming Clean and reliable thermoforming Time and cost savings in workshop production Processing notes Thermoformable at approx. 120°C to 130°C (248°F to 266°F) No bonding required between composite layers Additional EVA materials can be bonded if required Suitable for vacuum forming and deep drawing nora® Lunatec combi 1 is an ideal composite material for orthopaedic shoe engineering and orthotic workshops requiring a reliable, permanently resilient base for foot beddings and insoles, with efficient processing and consistent performance in everyday clinical use.

Read more less

nora® Lunatec Fusion 50 is a high density expanded EVA sheet designed for orthotic and prosthetic fabrication using adhesive free fusion bonding technology. With a hardness of approximately 50 Shore A and a density of around 0.30 g/cm³, this material provides increased stability and strength while maintaining good elasticity and shock absorption. It is suitable for structural layers, stabilising components, and multilayer orthotic constructions where firm support and reliable bonding are required. As part of the Lunatec Fusion system, the material allows permanent bonding between layers without the need for adhesive. When heated and processed under pressure, the EVA surfaces fuse together during the cooling phase, creating a strong and durable bond without glue, solvents, or intermediate layers. This allows faster production, cleaner working conditions, and environmentally friendly fabrication. Material specification Hardness: approx. 50 Shore A Density: approx. 0.30 g/cm³ Surface: smooth or perforated Sheet format: approx. 1020 × 675 mm (40.2 inch × 26.6 inch) Edges: trimmed for accurate processing Thermoforming temperature: approx. 130°C (266°F) Bonding: fusion bonding without adhesive within the Lunatec Fusion range Available versions Smooth Colour: 27 light blue Thickness: 8 mm, 12 mm Perforated Colour: 27 light blue Thickness: 4 mm, 8 mm Intended applications Orthotic insoles and footbeds Stabilising layers in orthoses Multi layer EVA constructions Midsole and reinforcement layers Sandwich constructions without adhesive Structural components in orthopaedic footwear CAD CAM and manual fabrication workflows High load orthotic builds Key properties High stability with good elasticity Dimensionally stable under load Good elastic recovery Reliable cushioning performance Fusion bonding without glue Clean and fast workshop processing No discoloration from adhesive Strong bond after cooling Suitable for deep drawing and vacuum forming Fusion bonding principle Lunatec Fusion materials bond directly to each other when heated and pressed together. During the cooling phase, the warmed EVA layers fuse permanently without adhesive or intermediate layers. Testing of peel resistance according to DIN EN 1392 has shown that the bond created can be stronger than the material itself, meaning the material may tear before the fused layers separate. The Lunatec Fusion range was developed to allow healthy and environmentally friendly fabrication without the use of adhesive, while still allowing the option of conventional EVA bonding when required. Processing instructions Roughen all bonding surfaces before heating Use perforated material where possible for optimal bonding Oven setting: approx. 130°C / 266°F Follow recommended heating times Apply sufficient pressure during vacuum forming Rule of thumb: heating time multiplied by two equals ideal cooling time Perforated sheets heat faster and may reduce heating time Cooling time depends on total material thickness Advantages of fusion processing No adhesive required Reduced fabrication time Clean working environment No solvent fumes No glue contamination No drying time Immediate use after cooling Strong permanent bond Environmentally friendly production nora® Lunatec Fusion 50 is ideal for orthotic, prosthetic, and orthopaedic footwear workshops that require a firm EVA material with strong bonding capability, good elastic recovery, and efficient adhesive free processing within the Lunatec Fusion system.

Read more less

nora® Lunacell is a high-hardness expanded EVA sheet developed for applications requiring exceptional stability, durability, and resistance to deformation. With a hardness of approximately 68 Shore A and a density of around 0.37 g/cm³, Lunacell is one of the firmest EVA materials available for orthotic, prosthetic, and orthopaedic footwear fabrication. It is particularly suitable where thin but strong layers are required, or where high mechanical stress demands long-lasting performance. The material is available in smooth and perforated versions, allowing use as both structural and covering material. Lunacell provides excellent trim properties, strong bonding performance, and reliable thermoforming behaviour, making it ideal for workshop fabrication as well as CAD/CAM workflows. Material specification Hardness: approx. 68 Shore A Density: approx. 0.37 g/cm³ Surface: smooth or perforated expanded EVA Thermoforming temperature: 120° – 170°C (248° – 338°F) Bonding: compatible with standard EVA adhesives High resistance to compression, tearing, and deformation Available formats Format 850 × 540 mm (33.5" × 21.3") Colour: 07 beige — 2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 mm Colour: 81 black — 10 | 20 mm Format 1080 × 850 mm (42.5" × 33.5") Colour: 07 beige — 1.5 mm Colour: 81 black — 1.5 mm Also available: Perforated version — 07 beige Typical applications Covering material for smooth or thermoformed insoles Lift sheets for high-load orthopaedic footwear Thomas heels with frontal median support Ladies’ block heels and wedge bottoms Midsole and stabilising components Insoles and foot beddings requiring reinforcement High-stress reinforcing layers in orthoses Thin but durable insole constructions Key properties Very hard and rigid EVA Highly dimensionally stable Anti-slip surface Scratch-resistant and tear-resistant Excellent durability even in thin layers Clean grinding and finishing Reliable bonding and thermoforming Suitable for high-load footwear and orthotic builds nora® Lunacell is a preferred material for orthotic, prosthetic, and orthopaedic footwear workshops when maximum stability, strength, and durability are required, especially in thin constructions or high-stress applications.

Read more less

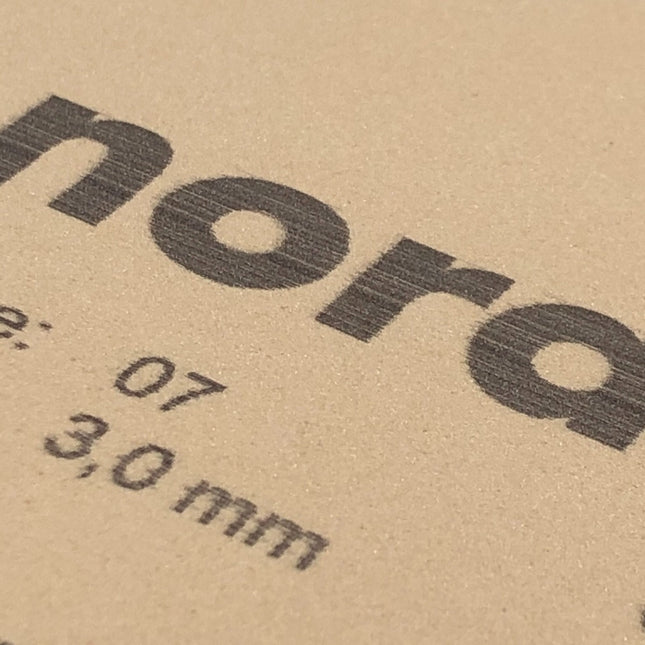

nora® Lunalight A is a high-density expanded EVA sheet designed for applications requiring increased rigidity, dimensional stability, and durable structural support. With a hardness of approximately 60 Shore A and a density of around 0.35 g/cm³, this material provides excellent resistance to compression while maintaining the workability needed for orthotic and prosthetic fabrication. It is widely used for lift constructions, mid-soles, shell bottoms, and corrective build-ups where a firm and stable EVA layer is required. The smooth surface finish allows clean bonding and precise finishing, making Lunalight A suitable for both manual fabrication and CAD/CAM milling workflows. The material can be thermoformed and bonded using standard EVA processing techniques, ensuring compatibility with existing workshop equipment. Material specification Hardness: approx. 60 Shore A Density: approx. 0.35 g/cm³ Sheet format: approx. 860 × 550 mm (33.9" × 21.7") Surface: smooth, closed-cell expanded EVA Thermoforming temperature: 120° – 170°C (248° – 338°F) Bonding: compatible with standard EVA adhesives Available colours 05 light beige 07 beige 09 white 17 grey beige 19 stone 35 medium brown 41 pale brown 46 dark brown 56 stone grey 60 bright grey 78 dark blue 80 anthracite 81 black 89 red 352 jeans blue Available thicknesses 3 mm 4 mm 5 mm 6 mm 8 mm 10 mm 12 mm 14 mm 16 mm 20 mm 24 mm (selected colours available in multiple thickness options) Typical applications Lift sheets for orthopaedic footwear Roll soles (butterfly rolls, joint rolls) Outer and inner edge elevation Mid-sole construction Shell bottoms and base layers Structural orthotic build-ups Prosthetic foot and sole components Key properties High rigidity and stability Excellent compression resistance Dimensionally stable under load Clean grinding and finishing Reliable bonding with standard adhesives Suitable for thermoforming and milling nora® Lunalight A is a proven material for orthopaedic, prosthetic, and footwear workshops requiring a firm EVA sheet that maintains shape and performance even under high mechanical stress.

Read more less

The nora® Lunasoft AL expanded EVA sheets are lightweight and stable materials developed for orthopedic footwear, orthotic devices, and shoe modifications where reliable lifting, support, and dimensional stability are required. This grade is particularly suitable as a lifting material for sports shoes, leisure footwear, and flexible street shoes where low weight and high stability must be combined. With a hardness of approximately 53 Shore A and moderate density, Lunasoft AL offers strong support while remaining lighter than many traditional lifting materials. The material provides good resilience, excellent restoration capability, and reliable shape retention, making it ideal for structural orthotic elements and stabilising components. The smooth surface allows easy bonding, grinding, and thermoforming, enabling efficient workshop processing. Lunasoft AL can be thermoformed for precise shaping, making it suitable for custom foot beddings, insoles, and orthopedic shoe modifications. The closed cell structure ensures the material is hygienic, washable, and resistant to moisture, which is important for medical and orthopedic applications. Key Features Expanded EVA sheet with smooth surface Lightweight with high stability Suitable for lifting and build up applications Good resilience and restoration capability Dimensionally stable under load Comfortable during walking Hygienic closed cell structure Washable and moisture resistant Thermoformable for precise shaping Reliable nora quality material Technical Specifications Material: nora® Lunasoft AL expanded EVA Hardness: approximately 53 Shore A Density: approximately 0.26 g per cubic centimetre Sheet size: approximately 920 × 560 mm (36.2 × 22.0 inches) Surface: smooth Available colours and thicknesses 07 beige — 6 mm, 10 mm, 20 mm 09 white — 6 mm, 8 mm, 10 mm, 20 mm 17 grey beige — 6 mm, 10 mm, 20 mm 19 stone — 6 mm, 10 mm, 20 mm 56 stone grey — 6 mm, 10 mm, 20 mm 46 dark brown — 6 mm, 10 mm, 14 mm, 20 mm 81 black — 6 mm, 8 mm, 10 mm, 14 mm, 20 mm Performance and properties Lightweight but stable material High resistance to compression Good resilience and recovery Suitable for structural orthotic use Durable for daily walking Excellent bonding with standard EVA adhesives Hygienic and easy to clean Processing notes Thermoformable at approximately 120 to 170 degrees Celsius Suitable for standard EVA bonding methods Easy to cut, grind, and shape Adapt pressure according to material thickness Typical applications in orthotics, prosthetics, and footwear Lift material for shoes Insoles and sport insoles Foot beddings Rearfoot support elements Orthotic shaping components Stabilising layers Orthopedic footwear modifications Flexible street shoes Sports footwear Workshop fabrication The nora® Lunasoft AL expanded EVA sheet is a lightweight and stable lifting material designed for orthopedic and orthotic fabrication, providing reliable support, easy processing, and long term durability for professional workshop use.

Read more less

The nora® Lunatec SE expanded EVA sheets are stable, resilient materials developed for orthopedic footwear, orthotic devices, and shoe modifications where strong support, lifting capability, and dimensional stability are required. This grade is especially suitable as a lifting material for sports shoes, street footwear, and orthopedic treatment applications. With a hardness of approximately 45 Shore A and higher density than standard EVA cushioning materials, Lunatec SE provides excellent restoration capability, high resilience, and reliable shape retention under load. The material remains flexible while offering strong support, making it ideal for structural elements such as rearfoot stabilisation, wedges, and shaping components. The smooth surface allows easy bonding, grinding, and thermoforming. Lunatec SE can be formed in a single block process, which makes it particularly suitable for foot beddings and orthotic constructions requiring stable support. The closed cell structure ensures the material remains hygienic, washable, and resistant to moisture, which is important for medical and orthopedic use. Key Features Expanded EVA sheet with smooth surface Stable and resilient material High dimensional stability Excellent restoration capability Suitable for lifting and shaping Good shock absorption with firm support Hygienic closed cell structure Washable and moisture resistant Thermoformable for precise shaping Reliable nora quality material Technical Specifications Material: nora® Lunatec SE expanded EVA Hardness: approximately 45 Shore A Density: approximately 0.29 g per cubic centimetre Sheet size: approximately 920 × 590 mm (36.2 × 23.2 inches) Surface: smooth Available colours and thicknesses 09 white — 6 mm, 10 mm, 14 mm 137 terra — 6 mm, 10 mm, 14 mm Performance and properties High stability under load Strong resilience and recovery Good support for lifting applications Durable for daily use Suitable for structural orthotic elements Excellent bonding with standard EVA adhesives Hygienic and easy to clean Processing notes Thermoformable at approximately 120 to 170 degrees Celsius Suitable for single block forming process Use standard EVA bonding methods Easy to cut, grind, and shape Typical applications in orthotics, prosthetics, and footwear Lift material for shoes Insoles and sport insoles Foot beddings Rearfoot stabilisation elements Orthotic shaping components Ankle caps Paralysis caps Semi rigid tongues Interim footwear Bathing shoes Orthopedic footwear fabrication The nora® Lunatec SE expanded EVA sheet is a strong and stable lifting material designed for orthopedic and orthotic fabrication, providing excellent support, reliable shaping properties, and long term durability in professional workshop use.

Read more less

The nora® Lunasoft SL Color smooth EVA sheets are lightweight expanded EVA materials designed for orthopedic, prosthetic, and footwear applications where cushioning, flexibility, and durable surface covering are required. This colour range offers the same performance as Lunasoft SL with the added advantage of bright, attractive colours, making it ideal for insoles, children’s footwear, prosthetic covers, and custom orthotic devices. With a hardness of approximately 40 Shore A and low density, Lunasoft SL Color provides good shock absorption, high resilience, and excellent dimensional stability. The material remains flexible under load while maintaining shape, ensuring high walking comfort and long service life. The closed cell structure makes the material hygienic, washable, and resistant to moisture absorption, which is especially important for medical and orthopedic use. The smooth surface allows easy bonding, trimming, and thermoforming, making it suitable for both structural and cosmetic applications. Key Features Expanded EVA sheet with smooth surface Lightweight with good cushioning properties Flexible and resilient material Dimensionally stable under load Available in multiple bright colours Hygienic closed cell structure Washable and moisture resistant Suitable for covering, cushioning, and shaping Thermoformable for easy processing Reliable nora quality material Technical Specifications Material: nora® Lunasoft SL expanded EVA Hardness: approximately 40 Shore A Density: approximately 0.20 g per cubic centimetre Sheet size: approximately 1140 × 740 mm (44.9 × 29.1 inches) Surface: smooth Available colours and thicknesses 65 blue — 2, 3, 4, 6 mm 69 orange — 2, 3, 4, 6 mm 70 yellow — 2, 3, 4, 6 mm 89 red — 2, 3, 4, 6 mm 98 green — 2, 3, 4, 6 mm 111 royal blue — 2, 3, 4, 6 mm 348 lime — 2, 3, 4, 6 mm 349 blackberry — 2, 3, 4, 6 mm Performance and properties Very lightweight material Good resilience and recovery Comfortable under load Stable during daily use Durable and flexible Hygienic closed cell structure Resistant to sweat and moisture Excellent bonding with standard EVA adhesives Processing notes Thermoformable at approximately 110 to 130 degrees Celsius Use standard EVA bonding methods Adjust pressure according to flexibility of the material Easy to cut, grind, and laminate Typical applications in orthotics, prosthetics, and footwear Insoles and foot beddings Sports insoles Cushioning layers Insole top covers Children’s shoe midsoles Prosthetic socket covers Outer shell covering for two layer sockets Shaping elements Rehabilitation footwear Workshop fabrication The nora® Lunasoft SL Color EVA sheet is a lightweight, flexible, and hygienic material designed for orthopedic, prosthetic, and footwear workshops, offering excellent cushioning, easy processing, and attractive colour options for professional custom fabrication.

Read more less

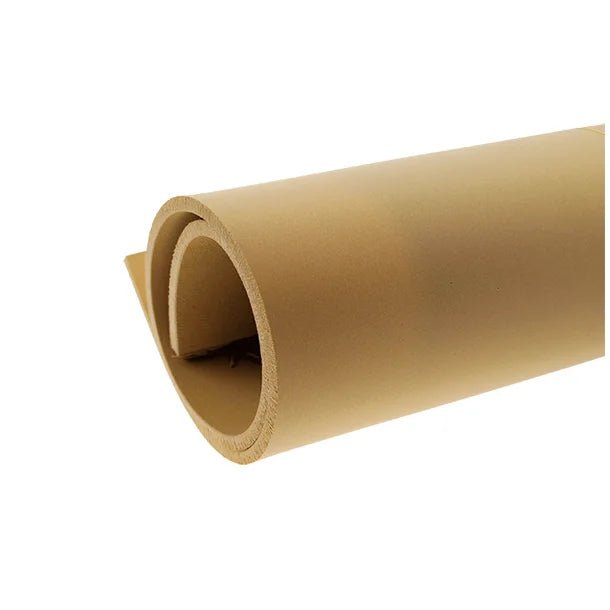

The nora® Lunasoft SL smooth EVA sheets are very lightweight expanded EVA materials designed for orthopedic, prosthetic, and footwear applications where cushioning, flexibility, and dimensional stability are required. These sheets are commonly used as lift materials, cushioning layers, and covering sheets in orthotic and prosthetic fabrication. With a hardness of approximately 40 Shore A and low density, Lunasoft SL provides an excellent balance between softness and support. The material offers good shock absorption, reliable restoration after compression, and high walking comfort, making it suitable for insoles, foot beddings, soft sockets, and shaping elements. The closed cell structure ensures the material remains hygienic, washable, and resistant to moisture absorption, which is important for medical and orthopedic use. Lunasoft SL can be easily cut, bonded, and thermoformed, allowing efficient workshop processing for both custom devices and repair work. Key Features Expanded EVA sheet with smooth surface Very lightweight with good cushioning properties Flexible and dimensionally stable Good recovery after compression Comfortable under load Suitable for lifts, cushions, and covers Hygienic closed cell structure Washable and moisture resistant Thermoformable for easy shaping Reliable nora quality material Technical Specifications Material: nora® Lunasoft SL expanded EVA Hardness: approximately 40 Shore A Density: approximately 0.20 g per cubic centimetre Sheet size: approximately 1140 × 740 mm (44.9 × 29.1 inches) Surface: smooth Available colours and thicknesses 07 beige — 2, 3, 4, 5, 6, 8, 10, 12, 20 mm 09 white — 2, 3, 4, 6, 8, 10, 12 mm 46 dark brown — 2, 3, 4, 6, 8, 10, 12, 14, 20 mm 81 black — multiple thicknesses 17 grey beige — 2, 3, 4, 6, 8, 10, 20 mm 19 stone — multiple thicknesses 35 medium brown — multiple thicknesses 56 stone grey — multiple thicknesses 78 dark blue — multiple thicknesses Performance and properties Very low weight Flexible with good stability High walking comfort Good shock absorption Reliable resilience Durable for daily use Hygienic closed cell structure Excellent bonding with standard EVA adhesives Processing notes Use standard EVA bonding methods Adjust contact pressure according to flexibility of the material Thermoformable at approximately 110 to 130 degrees Celsius Easy to cut, grind, and laminate Typical applications in orthotics, prosthetics, and footwear Insoles and foot beddings Sports insoles Cushioning layers Lift and build up sheets Soft prosthetic sockets Orthotic covers Interim footwear Shaping elements Rehabilitation footwear Workshop fabrication The nora® Lunasoft SL smooth EVA sheet is a versatile lightweight material for orthopedic, prosthetic, and footwear workshops, providing excellent comfort, easy processing, and reliable performance for cushioning, lifting, and covering applications.

Read more less
