Description

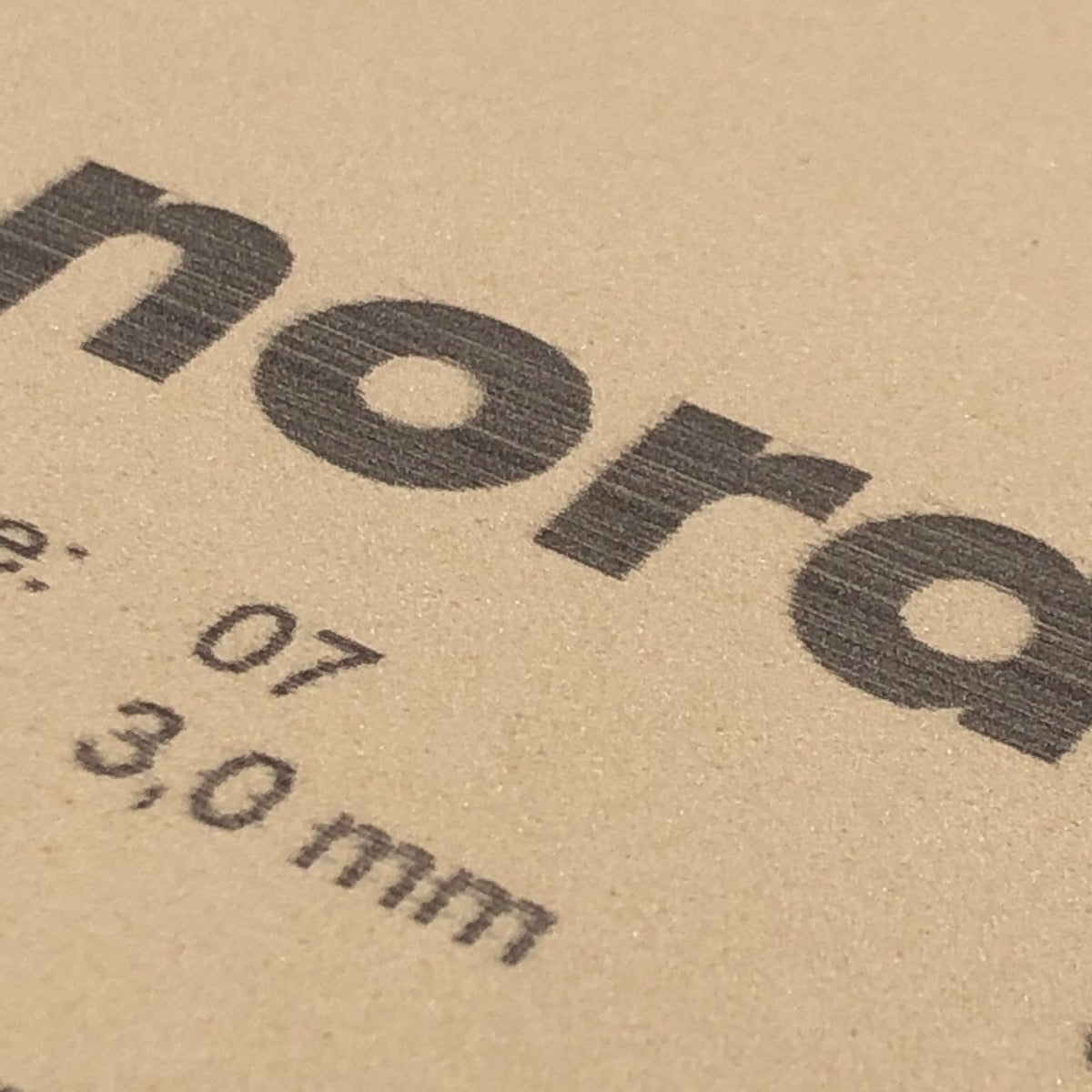

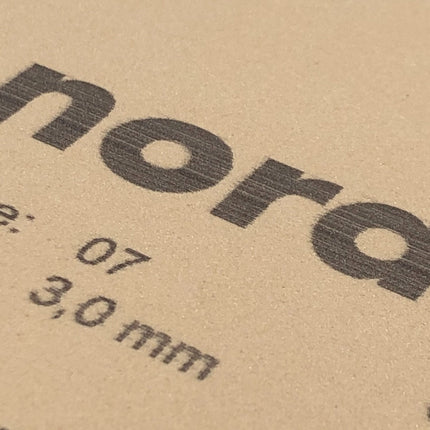

nora® Lunalight A is a high-density expanded EVA sheet designed for applications requiring increased rigidity, dimensional stability, and durable structural support. With a hardness of approximately 60 Shore A and a density of around 0.35 g/cm³, this material provides excellent resistance to compression while maintaining the workability needed for orthotic and prosthetic fabrication. It is widely used for lift constructions, mid-soles, shell bottoms, and corrective build-ups where a firm and stable EVA layer is required.
The smooth surface finish allows clean bonding and precise finishing, making Lunalight A suitable for both manual fabrication and CAD/CAM milling workflows. The material can be thermoformed and bonded using standard EVA processing techniques, ensuring compatibility with existing workshop equipment.
Material specification
-
Hardness: approx. 60 Shore A
-
Density: approx. 0.35 g/cm³
-
Sheet format: approx. 860 × 550 mm (33.9" × 21.7")
-
Surface: smooth, closed-cell expanded EVA
-
Thermoforming temperature: 120° – 170°C (248° – 338°F)
-
Bonding: compatible with standard EVA adhesives
Available colours
-
05 light beige
-
07 beige
-
09 white
-
17 grey beige
-
19 stone
-
35 medium brown
-
41 pale brown
-
46 dark brown
-
56 stone grey
-
60 bright grey
-
78 dark blue
-
80 anthracite
-
81 black
-
89 red
-
352 jeans blue
Available thicknesses
-
3 mm
-
4 mm
-
5 mm
-
6 mm
-
8 mm
-
10 mm
-
12 mm
-
14 mm
-
16 mm
-
20 mm
-
24 mm
(selected colours available in multiple thickness options)
Typical applications
-
Lift sheets for orthopaedic footwear
-
Roll soles (butterfly rolls, joint rolls)
-
Outer and inner edge elevation
-
Mid-sole construction
-
Shell bottoms and base layers
-
Structural orthotic build-ups
-
Prosthetic foot and sole components
Key properties
-
High rigidity and stability
-
Excellent compression resistance
-
Dimensionally stable under load
-
Clean grinding and finishing
-
Reliable bonding with standard adhesives
-
Suitable for thermoforming and milling
nora® Lunalight A is a proven material for orthopaedic, prosthetic, and footwear workshops requiring a firm EVA sheet that maintains shape and performance even under high mechanical stress.
