Description

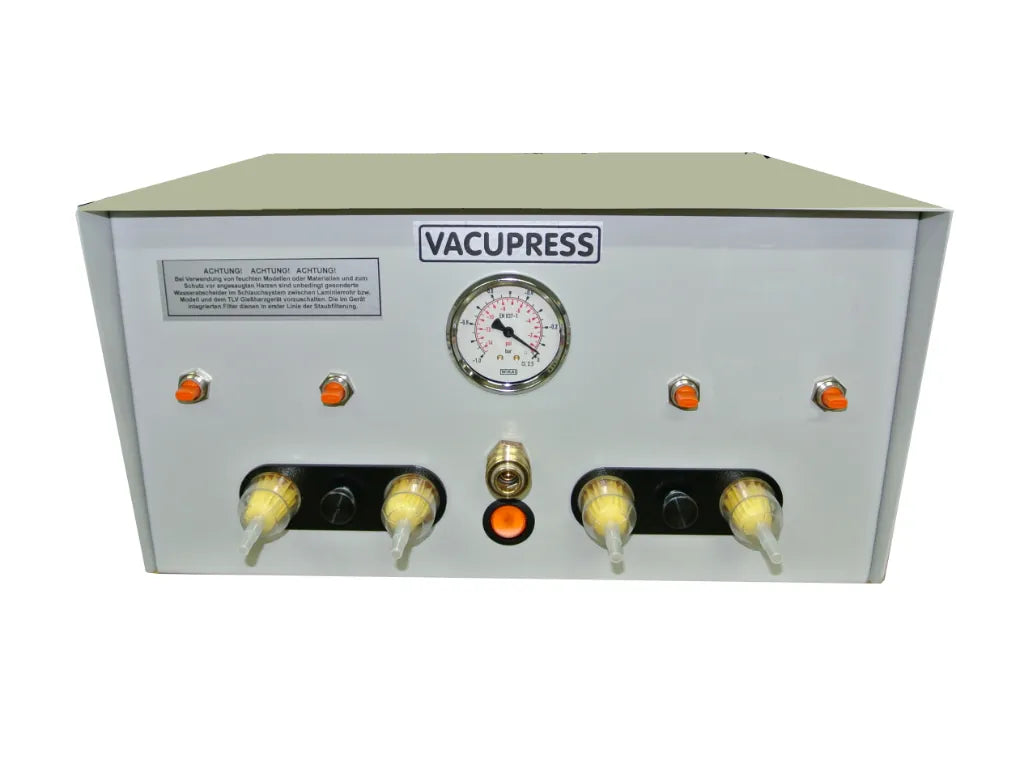

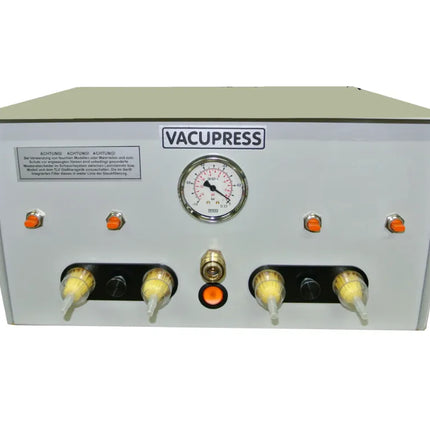

The VACUPRESS TLV6-II is a compact yet powerful vacuum lamination unit built to support professional-level composite lamination or thermoforming workflows. With its efficient vacuum pump, multiple output connections and built-in vacuum safety features, the TLV6-II is a practical backbone for laminating, resin infusion, or vacuum-forming tasks — ideal for orthotic/prosthetic workshops, small production labs, or composite-part fabrication.
Core Features & Advantages
-
Strong vacuum performance: Equipped with a dry-running, oil-free, maintenance-free vacuum pump delivering 6 m³/h suction and capable of reaching a final vacuum pressure around 200 mbar — enough to reliably support lamination or composite work.
-
Multi-station capability: Provides up to four separately switchable 8 mm vacuum outlets, making it possible to supply two independent lamination workstations simultaneously. There is also an additional DIN coupling outlet for thermoforming or other vacuum-based operations.
-
Vacuum automation & internal tank: The pump activates automatically only when vacuum is required, and an internal vacuum tank ensures rapid suction — particularly valuable during thermoforming or composite layup cycles where fast vacuum build-up is important.
-
Fine-filter protection per connection: Each outlet is equipped with a fine dust filter to protect internal components and maintain clean airflow — helping prolong pump life and keep work environment safe.
-
Compact, workshop-friendly design: With dimensions of approximately 435 × 390 × 240 mm and a weight around 22 kg, TLV6-II fits comfortably in small workshops, labs, or clinics. Its manageable footprint and portability make it a practical option even where space is limited.
-
Versatility: In addition to lamination tasks, the extra vacuum outlet allows connection to vacuum forming presses or other vacuum-based equipment — making the TLV6-II a flexible central vacuum source for a variety of manufacturing/production applications.
Typical Use Cases
-
Composite lamination: Vacuum infusion or layup for carbon-fiber or fiberglass sockets, orthotic shells, braces, or prosthetic components.
-
Resin infusion and lamination of structural parts in orthotics/prosthetics or rehabilitation-device manufacturing.
-
Supporting small to medium-size vacuum-forming or thermoforming setups when a central vacuum source is required.
-
Multi-station lamination workshops where two or more technicians work in parallel — ideal for small labs or clinics scaling production.
-
Labs that need a clean, maintenance-free vacuum supply without bulky industrial vacuum infrastructure.
Why Choose VACUPRESS TLV6-II
The TLV6-II stands out as a balanced, efficient and versatile vacuum lamination unit — delivering professional-grade suction, multi-station flexibility, and compact convenience. For orthotic and prosthetic labs, composite-part manufacturers, or small-scale production workshops, it combines practicality with performance: you get stable vacuum, reliable lamination capability, and the ability to support multiple workstations — all in a lightweight, easy-to-operate package.
