Description

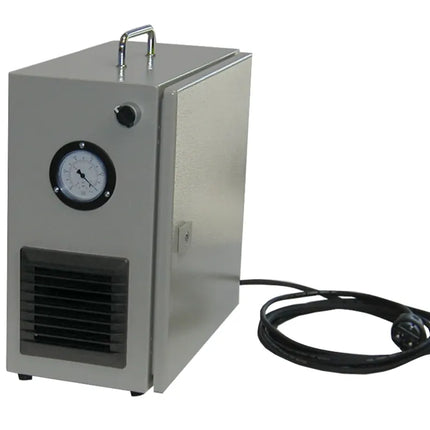

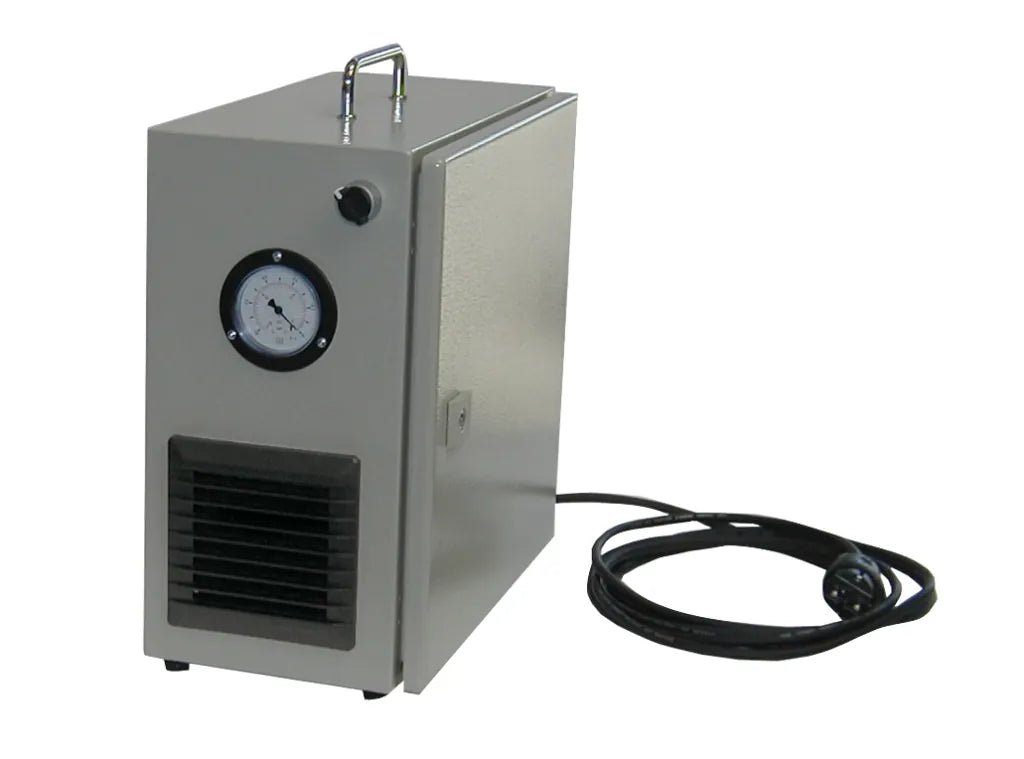

The Vacuum Aggregate TLV10 is a robust, maintenance-free vacuum supply unit engineered for modern orthopaedic, prosthetic, and thermoforming workflows. Designed with portability and reliability in mind, it provides consistent vacuum suction for vacuum forming presses, lamination stations, or multi-station workshops — making it a versatile “central vacuum heart” for clinics, labs, or mobile setups.
🔧 Key Features & Benefits
-
Strong, two-stage oil-free vacuum pump: The TLV10 delivers a flow rate of 10 m³/h, achieving final vacuum pressure down to 200 mbar — sufficient for reliable vacuum forming, lamination, or composite work even when connected to multiple devices.
-
Fully automated vacuum control: The built-in electronics continuously monitor vacuum levels. The pump automatically activates when vacuum is requested (e.g. when a connected press closes) and shuts off when target vacuum is reached — reducing energy use, noise, and wear.
-
Quiet, compact & portable housing: The TLV10 is designed to be mobile-friendly — compact dimensions (approx. 210 × 410 × 390 mm) and light weight (~11 kg) make it easy to transport or relocate — useful for mobile clinics, hospital visits, or small workshops.
-
Integrated dust filter with water separator: A fine dust filter (with water separation) protects the pump from contamination, ensuring longevity and consistent suction performance — crucial when dealing with plastic dust, resin fumes, or workshop debris.
-
Standard vacuum connection (DIN coupling): Ensures easy integration with existing vacuum-forming presses, lamination stations, or vacuum-based equipment, without specialized adapters or complicated piping.
-
Versatile for multiple uses: Whether you’re vacuum-forming foot orthoses, laminating composite shells, or running multiple thermoforming stations, the TLV10 serves as a reliable central vacuum hub — ideal for orthotics/prosthetics labs, custom footwear workshops, or rehabilitation clinics.
Typical Use Cases
-
Powering vacuum-forming presses for insoles, foot orthoses, AFO shells, or prosthetic components.
-
Central vacuum supply in lamination and composite-shell manufacturing (e.g. carbon-fiber or fiberglass laminates).
-
Multi-station workshop setups — allowing several thermoforming or lamination machines to share a single vacuum source, optimizing cost and space.
-
Mobile clinics or rehabilitation units that require portable vacuum capability for on-site orthotic fabrication or custom shell forming.
-
Clinics or labs seeking a clean, quiet, and maintenance-free vacuum system — ideal in hospital, patient-care, or small-workshop environments.
Why Choose VACUPRESS Vacuum Aggregate TLV10
The TLV10 combines power, practicality, and portability — offering a perfect balance for clinics and labs that need a dependable vacuum supply without bulky or high-maintenance industrial systems. Its oil-free maintenance-free pump, automatic vacuum regulation, compact design, and protective filtration make it a reliable backbone for an O&P workshop or mobile setup. For professionals seeking a versatile, easy-to-integrate, and long-lasting vacuum source — the TLV10 is a smart, future-proof investment.
