Description

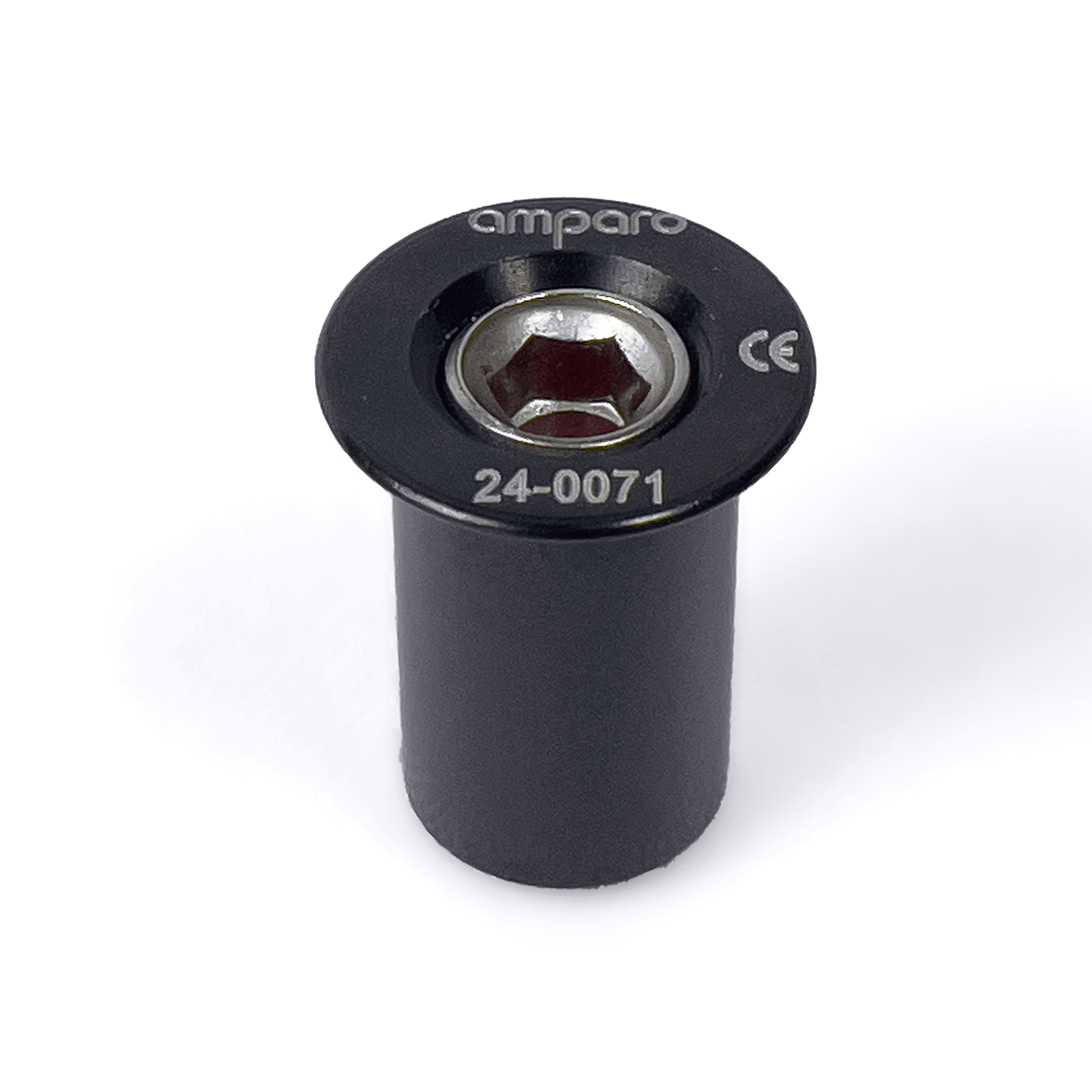

The Amparo Passive Vacuum System is a compact distal valve designed to provide secure suspension, comfort and reliable socket fit for lower-limb prosthetic users.
Its one-way valve design allows air to escape from the socket during donning and movement, helping create a passive vacuum that keeps the residual limb securely positioned within the prosthesis. This snug and consistent fit can help reduce unwanted movement within the socket while avoiding excessive localised pressure.
Designed for use together with a prosthetic liner and sealing sleeve, the Passive Vacuum System provides a simple and dependable suspension solution without the complexity of an active vacuum pump.
Key Features
- One-way distal valve for passive vacuum suspension
- Helps maintain a secure and snug socket fit
- Designed to minimise unwanted movement within the socket
- Supports comfortable pressure distribution
- Lightweight and extremely compact
- Simple, reliable design with no powered components
- Used in combination with a prosthetic liner and sleeve
Technical Specifications
-
Reference: VAL
-
Weight: 4.4 g
-
Dimensions: 18 × 19 × 19 mm
-
Suspension type: Passive vacuum
-
Recommended use: With prosthetic liner and sealing sleeve
