Description
Heavy-duty professional screw clamp designed for secure, controlled clamping in prosthetic, orthotic and general workshop applications.

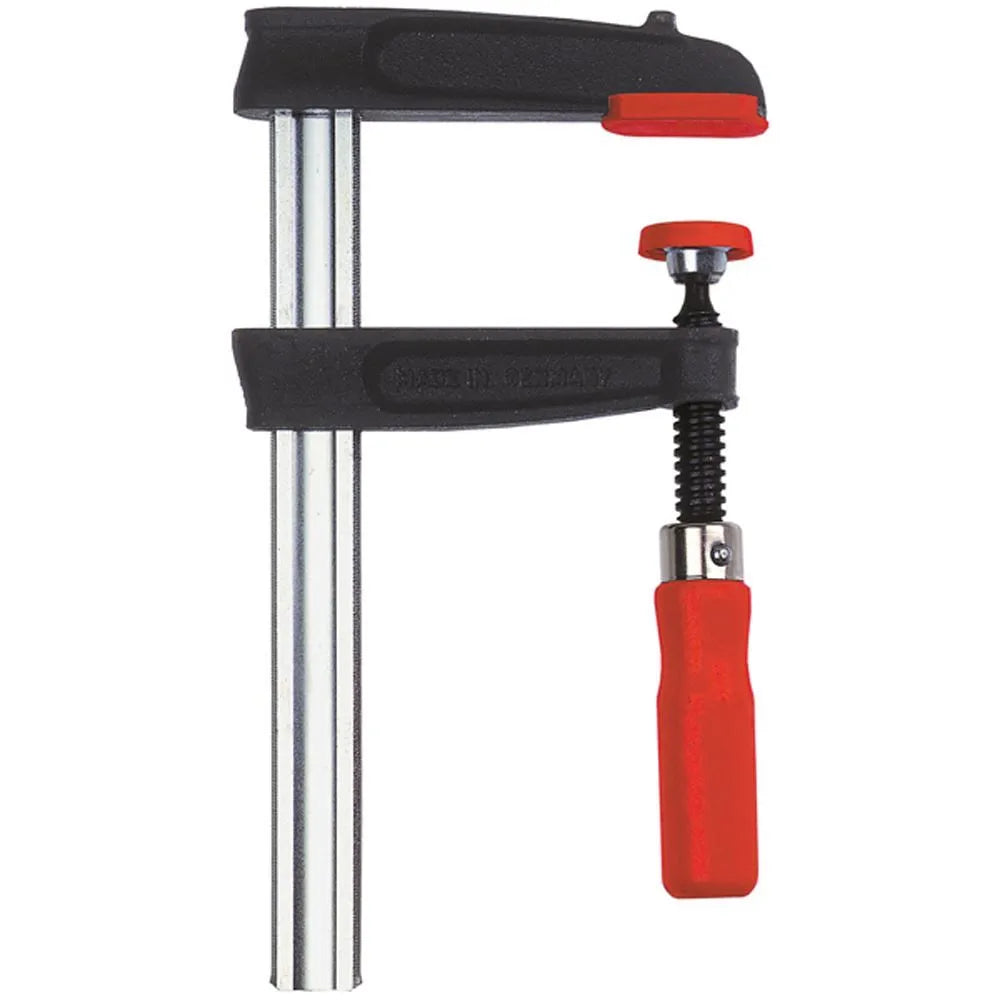

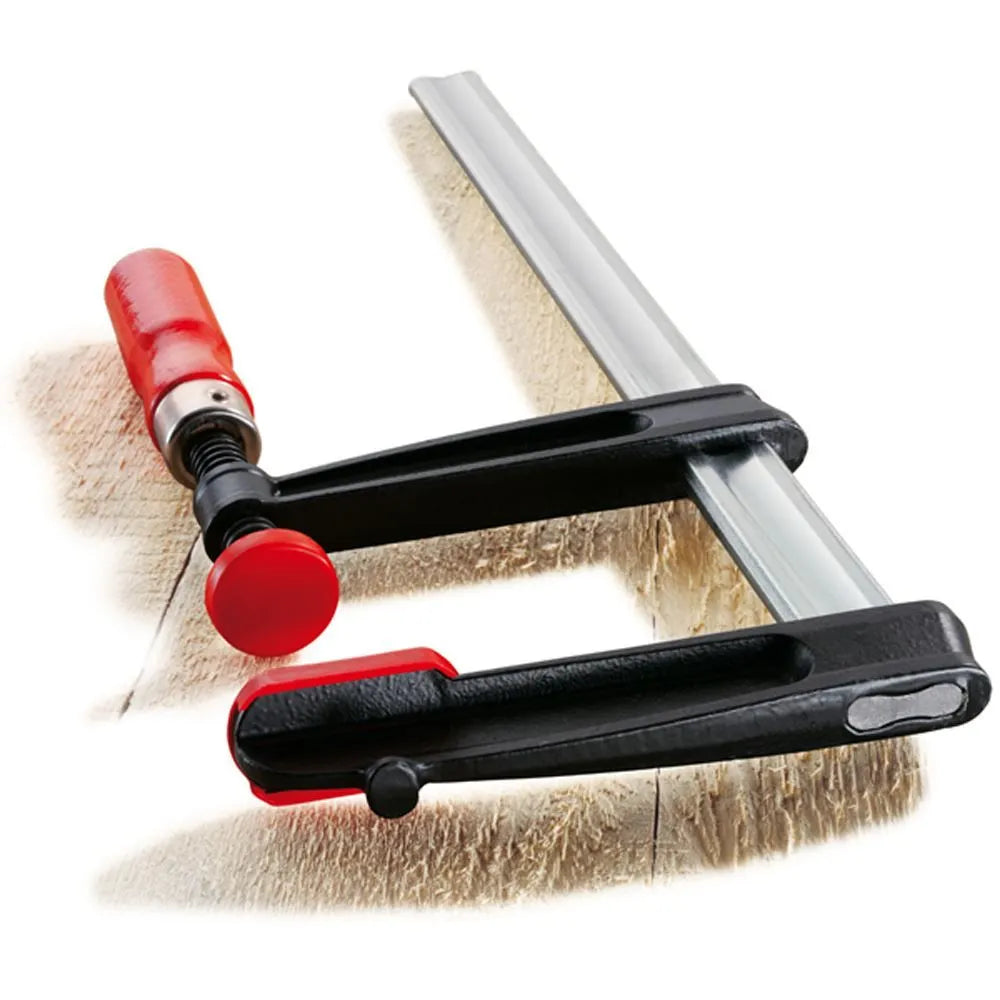

The Qaadir Malleable Cast Iron Screw Clamp combines a robust malleable cast-iron clamping system with a strong profiled steel rail to provide dependable clamping pressure during fabrication, assembly, bonding and workshop processes.
Based on the professional 300/140 mm format, the clamp provides a 300 mm maximum opening and 140 mm throat depth, making it particularly useful for larger workpieces and demanding workshop applications. The benchmark Bessey TPN30BE provides clamping force of up to 5,500 N with a 32 × 10 mm profiled rail.
Key Features
-
Heavy-Duty Construction: Robust malleable cast-iron fixed and sliding arms for durability and long service life.
-
High Clamping Force: Designed to provide powerful, controlled pressure for demanding workshop applications.
-
300 mm Opening: Generous clamping capacity accommodates a wide range of components and workpieces.
-
140 mm Throat Depth: Deep reach provides greater flexibility when positioning the clamp.
-
Strong Profiled Steel Rail: Serrated rail construction provides stability and helps prevent unwanted movement under load.
-
Ergonomic Wooden Handle: Comfortable traditional handle provides good grip and controlled tightening.
-
Protective Clamping Caps: Helps protect workpiece surfaces from marking or damage during clamping.
-
Versatile Workshop Tool: Suitable for fabrication, bonding, assembly, positioning and general workshop use.
Technical Specifications
| Specification |
Details |
| Product |
Qaadir Malleable Cast Iron Screw Clamp |
| Maximum Opening |
300 mm |
| Throat Depth |
140 mm |
| Rail Size |
32 × 10 mm |
| Clamping Force |
Up to 5,500 N |
| Handle |
Ergonomic wooden handle |
| Clamp Body |
Malleable cast iron |
| Rail |
Profiled steel |
| Clamping Surfaces |
Protective caps |
| Application |
P&O fabrication and general workshop use |
The 300 mm opening, 140 mm throat depth, 32 × 10 mm rail and up-to-5,500 N clamping force correspond to the Bessey TPN30BE 300/140 specification.
Qaadir Workshop Tools — professional tools selected for the everyday demands of prosthetic and orthotic fabrication.
