Description

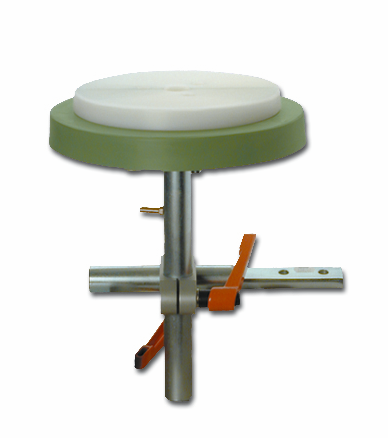

The Qaadir Dual Disc Vacuum Table is a versatile vacuum-forming workstation designed for use with both Type A and Type B Blister Forming Frames. Its dual-size configuration accommodates two disc diameters—320 mm and 265 mm—within a single table, eliminating the need for separate vacuum tables.
Developed for orthotic and prosthetic workshops, the table provides a secure, airtight forming surface for thermoplastic fabrication. It is supplied with a silicone sealing ring and the necessary assembly components for reliable installation and effective vacuum performance.
Key Features
- Dual-disc design for two forming diameters
- Includes 320 mm and 265 mm vacuum discs
- Compatible with Type A and Type B Blister Forming Frames
- One table replaces two separate vacuum-forming tables
- Silicone sealing ring provides an effective airtight seal
- Supplied with the required assembly parts
- Suitable for routine orthotic and prosthetic thermoplastic fabrication
- Space-saving and cost-effective workshop solution
Technical Information
| Specification |
Details |
| Product |
Dual Disc Vacuum Table |
| Disc diameters |
320 mm and 265 mm |
| Compatible frames |
Blister Forming Frame Type A and Type B |
| Included components |
Vacuum pipe with both discs, silicone sealing ring and assembly parts |
| Application |
Vacuum forming of thermoplastic materials |
The Qaadir Dual Disc Vacuum Table offers O&P workshops a practical, compact solution for working with two commonly used blister-forming frame sizes from one vacuum connection and forming station.
