Description
Premium professional keyless drill chuck engineered for fast tool changes, secure clamping and reliable precision in prosthetic, orthotic and general workshop applications.

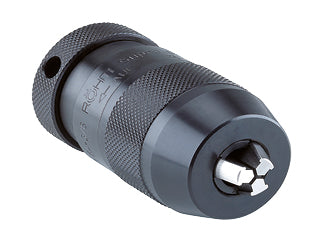

The Qaadir Plus Quick Action Drill Chuck provides quick and convenient tool clamping without the need for a separate chuck key. Its 1–13 mm clamping range accommodates a wide selection of drill bits and rotary tools, while the B16 taper mounting makes it suitable for compatible workshop drilling machines.

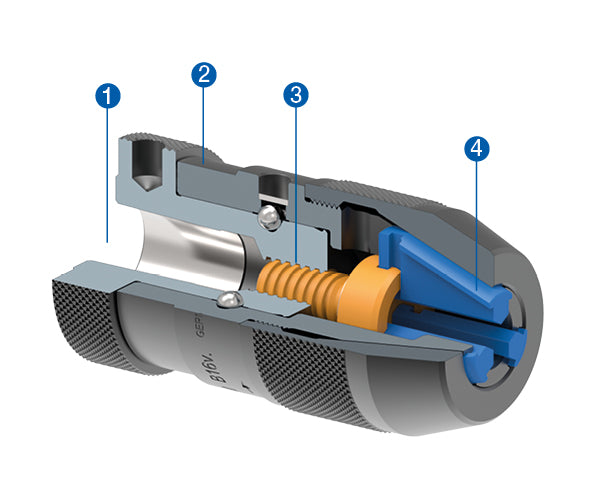

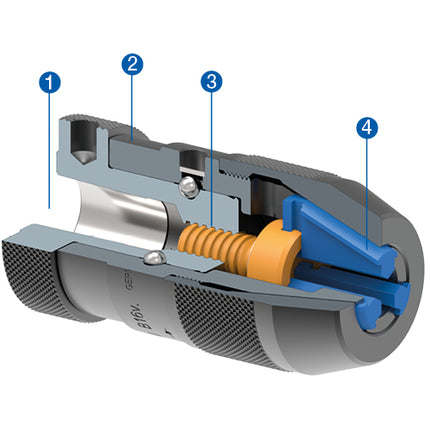

The self-tightening design automatically increases clamping force in proportion to the cutting force during drilling, helping prevent the drill bit from slipping even under demanding loads.
Key Features
-
Quick-Action Keyless Operation: Allows tools to be inserted, tightened and removed quickly without a chuck key.
-
1–13 mm Clamping Range: Suitable for a broad selection of drill bits and workshop tooling.
-
B16 Taper Mount: Designed for secure and precise mounting on compatible machine spindles and arbors.
-
Automatic Retightening: Clamping force increases in response to cutting force during clockwise drilling, helping maintain a secure grip on the tool.
-
All-Steel Construction: Robust metal construction designed for professional industrial and workshop use.
-
Hardened Components: Working components are hardened and superfinished for durability and reliable operation.
-
Hardened Flat Jaws: Provide excellent holding force and accurate tool positioning.
-
High Concentricity: The 1–13 mm B16 SUPRA-S configuration has a maximum specified concentricity deviation of 0.17 mm.
-
Professional Workshop Quality: Ideal for drilling, fabrication, modification and maintenance operations in P&O workshops.
Technical Specifications
| Specification |
Details |
| Product |
Qaadir Plus Quick Action Drill Chuck |
| Type |
Self-tightening, keyless |
| Clamping Range |
1–13 mm |
| Mount / Receiver |
B16 taper |
| Construction |
All steel |
| Jaws |
Hardened flat jaws |
| Maximum Concentricity Deviation |
0.17 mm |
| External Diameter |
40.2 mm |
| Length Open |
82.3 mm |
| Length Closed |
89.6 mm |
| Weight |
Approx. 581 g
|
| Operation |
Clockwise rotation |
The technical configuration is based on the professional RÖHM SUPRA-S 13S, 1–13 mm, B16 quick-action drill chuck.
Qaadir Plus — professional workshop equipment for prosthetic and orthotic fabrication.
