Description

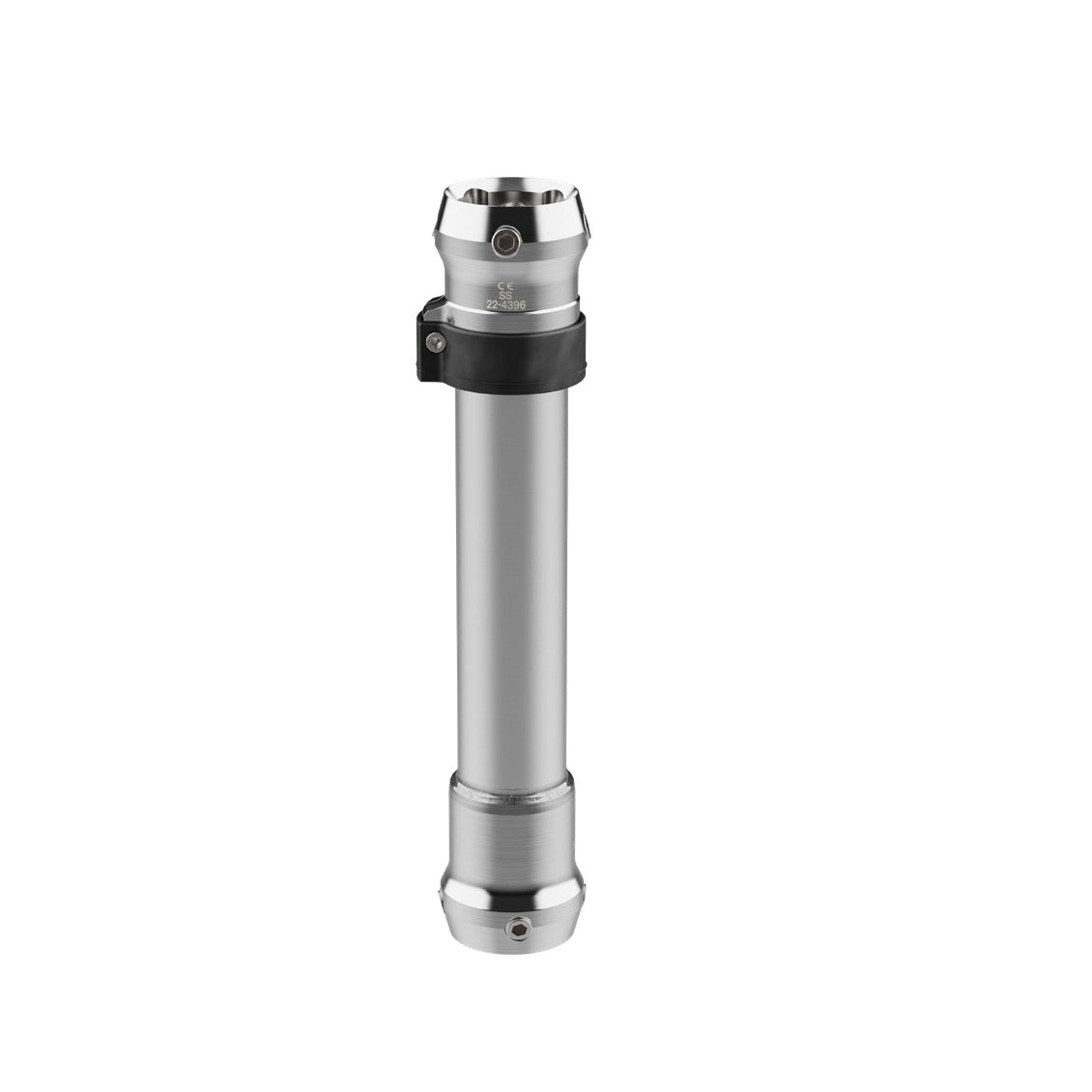

The Circleg Pylon Kit, 250mm provides the structural link between socket, knee and foot in a Circleg prosthesis. It includes an aluminium pylon and two stainless steel female pyramid adapters, one fixed and one clamping.
The pylon is supplied at 250mm and can be cut to length to suit the individual user. It is rated for users up to 110kg and is used in both transfemoral and transtibial builds.
Key Features
Aluminium pylon with two stainless steel female pyramid adapters
One fixed and one clamping adapter
Cut to length for each user
Rated for users up to 110kg
For transfemoral and transtibial prostheses
CE marked, developed under an ISO 13485 certified quality management system
What's in the Kit
Technical Characteristics
Length: 250mm (adjustable by cutting)
Diameter: 30mm
Proximal Connection: Pyramid clamp adapter
Distal Connection: Pyramid adapter
Maximum Body Weight: 110kg
Activity Level: K1, K2, K3
Amputation Level: Transfemoral & transtibial
Typical Applications in Prosthetics
Assembly of Circleg above-knee and below-knee prostheses
Replacement pylons for existing fittings
Length changes as users' needs change
Typical Users
Prosthetic & orthotic clinics
Prosthetic workshops and laboratories
Rehabilitation hospitals and centres
Public and humanitarian prosthetic services
The Circleg Pylon Kit, 250mm is a simple, strong and adjustable pylon solution that completes any Circleg build.
