The Circleg Transfemoral Prosthetic Kit is a complete modular above-knee prosthetic system supplied as a single order: the Circleg Polycentric Knee, Circleg Dynamic Foot and Circleg TF Cosmetic Cover, with or without the Circleg 250mm Pylon Kit. Developed in Switzerland for demanding environments and diverse patient populations, it gives prosthetic clinics a dependable, clinically proven transfemoral build at a fraction of the cost of premium imported components. The fully mechanical design has no electronics, needs no scheduled maintenance and uses standard pyramid connections throughout. Adjustable sizing, a bilateral foot and interchangeable parts mean a small number of kits can serve a wide range of users, cutting component stock by up to 80% and prosthetic finishing time by up to 70%. Choose the cover size to match the user's height, the foot size to match foot length and body weight, and whether the kit should include the pylon. Kits without the pylon suit clinics that already stock their own tube adapters. Key Features Complete transfemoral system: knee, foot, cosmetic cover and optional pylon Covers K1–K3 activity levels, from household to active community walkers Polycentric knee with high stance stability and up to 150° flexion Energy-returning Dynamic Foot (above 85% energy return) Bilateral foot: the same foot fits left or right Three foot sizes cover the full adult range of 21–30cm No electronics and no scheduled maintenance Every component individually replaceable Quick-fit clamp cosmetic cover for fast finishing CE marked, developed under an ISO 13485 certified quality management system What's in the Kit Circleg Polycentric Knee (PK1) Circleg Dynamic Foot, size S, M or L Circleg Cosmetic Cover TF, size S/M or M/L Circleg Pylon Kit, 250mm, with two female pyramid adapters (With Pylon option only) Choosing Sizes Cover TF S/M: user height 150–170cm Cover TF M/L: user height 170–190cm Foot S: foot length 21–24cm, body weight up to 70kg Foot M: foot length 24–27cm, body weight up to 90kg Foot L: foot length 27–30cm, body weight up to 110kg Technical Characteristics Amputation Level: Transfemoral Activity Level: K1, K2, K3 Maximum Body Weight: 110kg (limited by foot size selected) Connections: Pyramid adapter system Knee: Polycentric, 150° flexion, extension assist spring and flexion damper Structural Testing: ISO 10328 (knee 3,000,000 cycles, foot 2,000,000 cycles, no structural failure) Dust Resistance: IP5KX, whole system tested to ISO 20653 Field Record: Zero structural failures across 3+ years of market use Typical Applications in Prosthetics Definitive above-knee prostheses First fittings and interim prostheses Large-volume public and humanitarian prosthetic programmes Fittings in hot, dusty, humid or rough-terrain environments Clinics standardising on a small, low-stock component range Typical Users Prosthetic & orthotic clinics Rehabilitation hospitals and centres Ministry of Health and public hospital prosthetic services NGO and humanitarian prosthetic programmes Prosthetic workshops and laboratories Universities & P&O training institutions The Circleg Transfemoral Prosthetic Kit gives clinics a complete, durable and affordable above-knee solution, combining clinical-grade performance with a simple, low-stock operating model that lets prosthetists fit more patients with fewer components.

Read more less

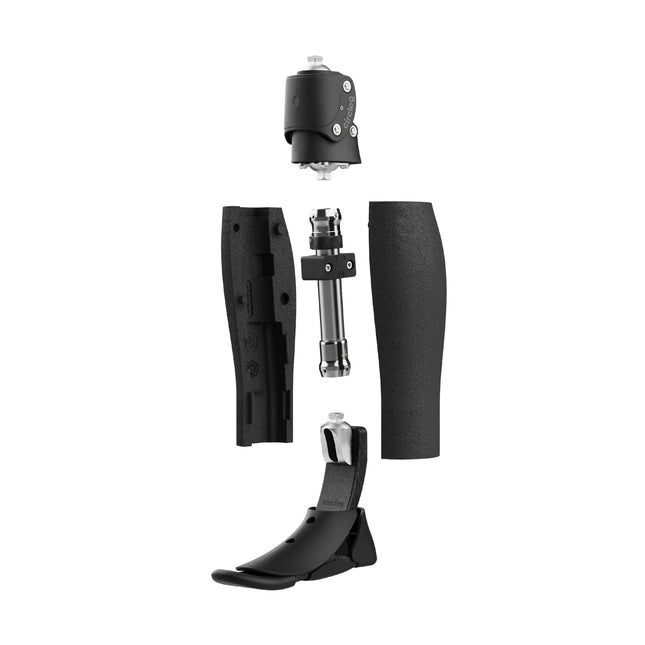

The Circleg Transtibial Prosthetic Kit is a modular below-knee prosthetic system supplied as a single order: the Circleg Dynamic Foot and Circleg TT Cosmetic Cover, with or without the Circleg 250mm Pylon Kit. Swiss-designed for demanding settings, it delivers a stable, energy-returning transtibial build that is quick to fit and simple to maintain. The bilateral Dynamic Foot fits either side and adjusts to the individual user, so just three foot sizes cover all adults. The cosmetic cover gives a natural leg shape, protects the components and clamps on quickly to cut finishing time. Choose the foot size to match foot length and body weight, and whether the kit should include the pylon. Kits without the pylon suit clinics that already stock their own tube adapters. Key Features Complete transtibial system: foot, cosmetic cover and optional pylon Covers K1–K3 activity levels Energy-returning Dynamic Foot (above 85% energy return) Bilateral foot: the same foot fits left or right Three foot sizes cover the full adult range of 21–30cm Lightweight cover fits users 150–190cm tall No electronics and no scheduled maintenance Every component individually replaceable CE marked, developed under an ISO 13485 certified quality management system What's in the Kit Circleg Dynamic Foot, size S, M or L Circleg Cosmetic Cover TT Circleg Pylon Kit, 250mm, with two female pyramid adapters (With Pylon option only) Choosing a Foot Size S: foot length 21–24cm, body weight up to 70kg M: foot length 24–27cm, body weight up to 90kg L: foot length 27–30cm, body weight up to 110kg Technical Characteristics Amputation Level: Transtibial Activity Level: K1, K2, K3 Maximum Body Weight: 110kg (limited by foot size selected) Connections: Pyramid adapter system Cosmetic Cover TT: length 250–310mm, 127g, user height 150–190cm Structural Testing: ISO 10328 (foot 2,000,000 cycles, no structural failure) Dust Resistance: IP5KX, whole system tested to ISO 20653 Typical Applications in Prosthetics Definitive below-knee prostheses First fittings and interim prostheses Large-volume public and humanitarian prosthetic programmes Fittings in hot, dusty, humid or rough-terrain environments Typical Users Prosthetic & orthotic clinics Rehabilitation hospitals and centres Ministry of Health and public hospital prosthetic services NGO and humanitarian prosthetic programmes Prosthetic workshops and laboratories Universities & P&O training institutions The Circleg Transtibial Prosthetic Kit offers clinics a reliable, affordable below-knee solution that is fast to fit, easy to stock and built to keep users walking in demanding conditions.

Read more less

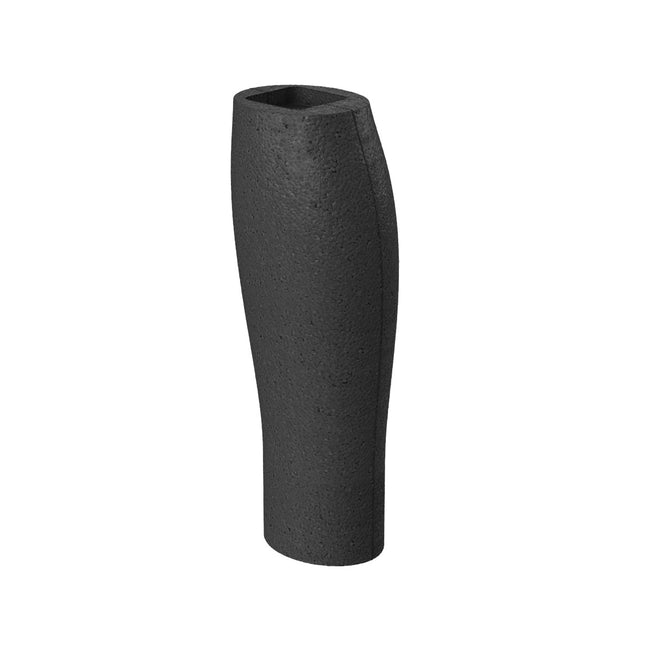

The Circleg Cosmetic Cover gives a Circleg prosthesis its distinctive finished look while giving the components inside full protection. Available in two transfemoral sizes and one transtibial size, it provides a natural leg shape for users from 150 to 190cm tall. The lightweight cover can be trimmed in length and shaped to suit the individual user. A simple clamp system lets prosthetists fit it quickly, reducing cosmetic finishing time. The cover also makes an ideal base for personalised finishes such as leather or textile wraps. Key Features Natural leg shape with full component protection Extra lightweight (127–151g) Adjustable in length and shape Quick-fit clamp system Ideal base for leather or textile wraps Transfemoral and transtibial versions CE marked, developed under an ISO 13485 certified quality management system Sizes TF S/M: transfemoral, length 250–310mm, 129g, user height 150–170cm TF M/L: transfemoral, length 310–370mm, 151g, user height 170–190cm TT: transtibial, length 250–310mm, 127g, user height 150–190cm Technical Characteristics Compatibility: Circleg prosthetic system Amputation Level: Transfemoral & transtibial Fitting: Clamp system Component Length: 250–370mm depending on size Typical Applications in Prosthetics Cosmetic finishing of Circleg above-knee prostheses Cosmetic finishing of Circleg below-knee prostheses Replacement of worn or damaged covers Custom wrapped or decorated prosthetic finishes Typical Users Prosthetic & orthotic clinics Rehabilitation hospitals and centres Prosthetic workshops and laboratories Public and humanitarian prosthetic services The Circleg Cosmetic Cover combines protection, a natural appearance and fast fitting, helping clinics deliver a well-finished prosthesis with less workshop time.

Read more less

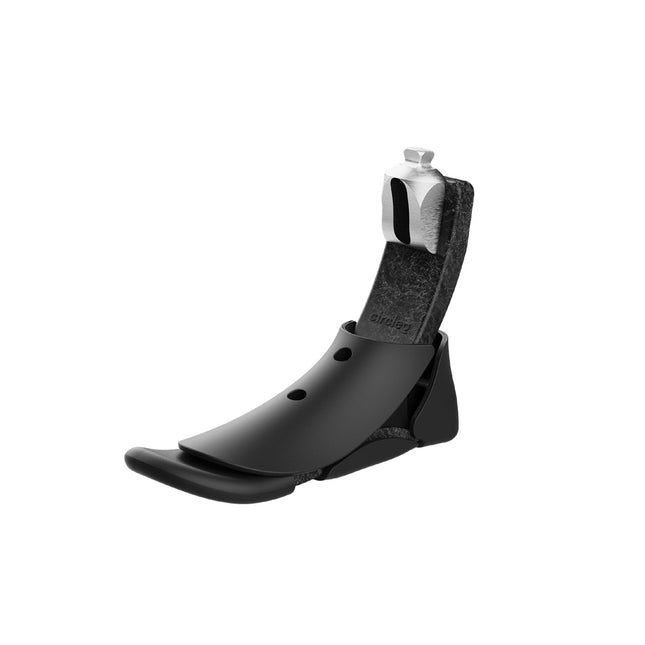

The Circleg Dynamic Foot is an energy-returning prosthetic foot designed for both active and less active users. Made from lightweight yet durable glass fibre and high-performance plastics, it delivers stability, comfort and a smooth, natural roll-over. Energy return exceeds 85%, releasing stored energy at toe-off to support an efficient, assistive gait. The foot geometry gives consistent ground contact and predictable weight shifting, reducing stumble risk on varied terrain. Each size adjusts to the individual user and works on either the left or right side, so only three sizes are needed to cover adult feet from 21 to 30cm. The universal polyurethane cover protects against moisture and dirt and is field-replaceable. Key Features Energy return above 85% Suitable for K1–K3 users Bilateral design: fits left or right Three sizes cover the full adult range Each size adjustable to the individual user Glass fibre and reinforced polypropylene construction Field-replaceable universal cover Up to 80% reduction in foot stock CE marked, developed under an ISO 13485 certified quality management system Sizes S: foot length 21–24cm, body weight up to 70kg, 915g M: foot length 24–27cm, body weight up to 90kg, 1030g L: foot length 27–30cm, body weight up to 110kg, 1125g Technical Characteristics Activity Level: K1, K2, K3 Connection: Pyramid adapter Side: Left & right Component Height: 200mm Amputation Level: Transfemoral & transtibial Structural Testing: ISO 10328, 2,000,000 cycles and static >400kg without failure Field Record: Zero structural failures across 3+ years of market use Typical Applications in Prosthetics Above-knee and below-knee prostheses Definitive and interim fittings Users walking on uneven or outdoor terrain Clinics reducing foot inventory Typical Users Prosthetic & orthotic clinics Rehabilitation hospitals and centres Ministry of Health and public hospital prosthetic services NGO and humanitarian prosthetic programmes Prosthetic workshops and laboratories Universities & P&O training institutions The Circleg Dynamic Foot brings dependable energy return and stability to a simple three-size range, helping clinics fit more users with less stock.

Read more less

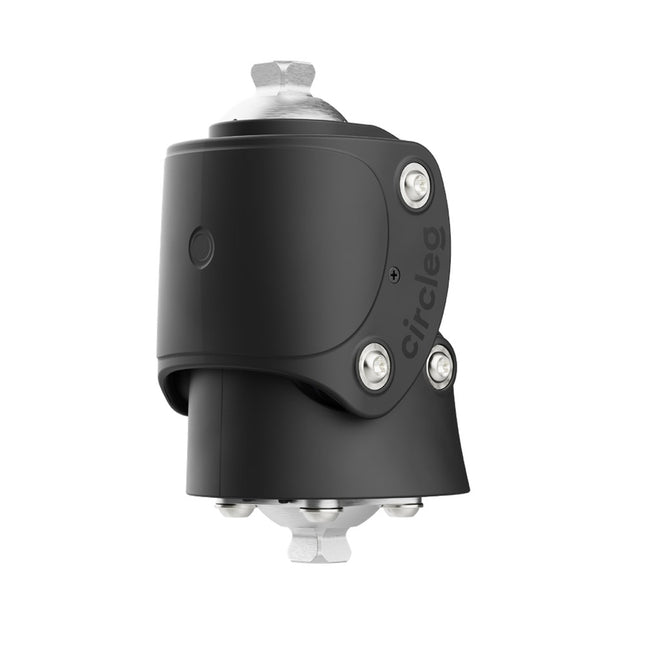

The Circleg Polycentric Knee is a mechanical polycentric knee joint that balances the high stance-phase stability required by low-mobility users with the natural swing-phase dynamics active users need. It is clinically indicated for K1–K3 activity levels. The polycentric design gives high stability at heel strike and extra ground clearance during swing. An integrated extension assist spring and flexion damper smooth the stance-to-swing transition and keep the response predictable as walking speed increases. Gait analysis carried out with ETH Zurich found its knee kinematics comparable to far more costly components. Stability is set simply by rotating the knee in the sagittal plane, with no complex adjustment mechanisms. A protective knee cap keeps out dust and dirt and gives a natural shape when seated, and the knee needs no scheduled maintenance. Key Features Polycentric design for high stance stability Suitable for K1–K3 users Up to 150° knee flexion Extension assist spring and flexion damper Additional ground clearance in swing phase Simple stability adjustment by joint rotation Knee cap protects against dust and dirt No electronics and no scheduled maintenance CE marked, developed under an ISO 13485 certified quality management system Technical Characteristics Activity Level: K1, K2, K3 Proximal Connection: Pyramid adapter Distal Connection: Pyramid adapter Maximum Body Weight: 110kg Knee Flexion Angle: 150° Component Height: 150mm Component Weight: 870g Amputation Level: Transfemoral Structural Testing: ISO 10328, 3,000,000 cycles and static >400kg without failure Dust Resistance: IP5KX (ISO 20653) Typical Applications in Prosthetics Definitive above-knee prostheses First fittings for new transfemoral users Elderly and low-mobility users needing a stable knee Active community walkers Fittings in dusty, humid or rough-terrain environments Typical Users Prosthetic & orthotic clinics Rehabilitation hospitals and centres Ministry of Health and public hospital prosthetic services NGO and humanitarian prosthetic programmes Prosthetic workshops and laboratories Universities & P&O training institutions The Circleg Polycentric Knee gives prosthetists a robust, low-maintenance knee that performs across the full K1–K3 range, lowering total cost of ownership compared with hydraulic and electronic knees.

Read more less

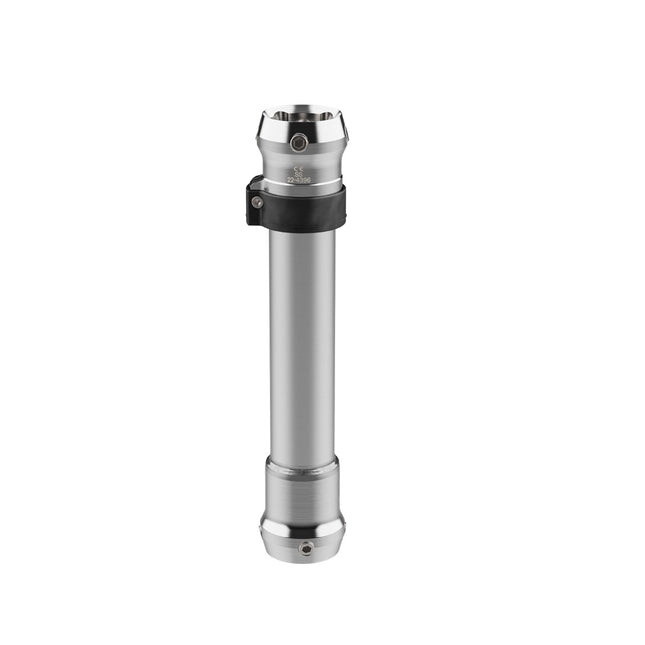

The Circleg Pylon Kit, 250mm provides the structural link between socket, knee and foot in a Circleg prosthesis. It includes an aluminium pylon and two stainless steel female pyramid adapters, one fixed and one clamping. The pylon is supplied at 250mm and can be cut to length to suit the individual user. It is rated for users up to 110kg and is used in both transfemoral and transtibial builds. Key Features Aluminium pylon with two stainless steel female pyramid adapters One fixed and one clamping adapter Cut to length for each user Rated for users up to 110kg For transfemoral and transtibial prostheses CE marked, developed under an ISO 13485 certified quality management system What's in the Kit Aluminium pylon, 250mm Fixed female pyramid adapter Clamping female pyramid adapter Technical Characteristics Length: 250mm (adjustable by cutting) Diameter: 30mm Proximal Connection: Pyramid clamp adapter Distal Connection: Pyramid adapter Maximum Body Weight: 110kg Activity Level: K1, K2, K3 Amputation Level: Transfemoral & transtibial Typical Applications in Prosthetics Assembly of Circleg above-knee and below-knee prostheses Replacement pylons for existing fittings Length changes as users' needs change Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres Public and humanitarian prosthetic services The Circleg Pylon Kit, 250mm is a simple, strong and adjustable pylon solution that completes any Circleg build.

Read more less

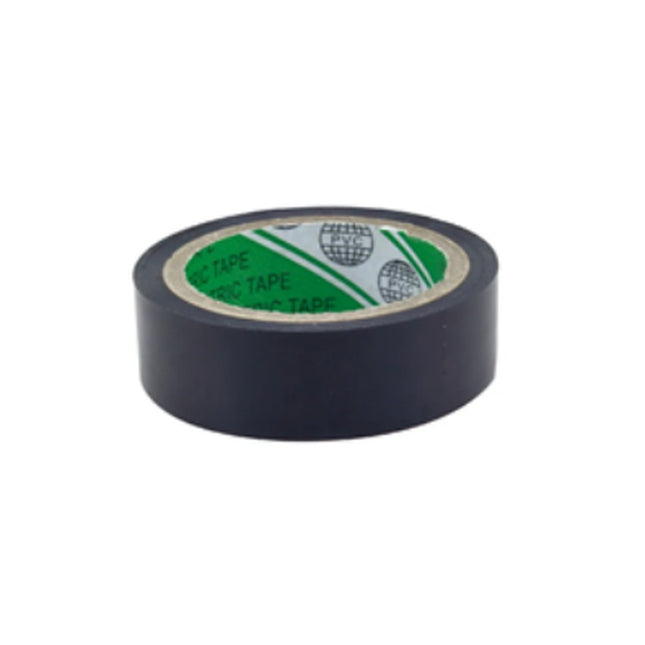

The Circleg Black Tape for CC1 is the finishing tape used with the Circleg CC1 Cosmetic Cover. It gives a neat, durable finish when fitting, trimming or refreshing a cover. Keeping a roll in the workshop lets prosthetists finish and maintain Circleg covers without waiting for parts. Key Features Matched to the Circleg CC1 Cosmetic Cover Black finish to match the cover For new fittings and cover maintenance Genuine Circleg spare part Technical Characteristics Compatibility: Circleg Cosmetic Cover CC1 (TF S/M, TF M/L, TT) Colour: Black Supplied: Single roll Typical Applications in Prosthetics Finishing new Circleg cosmetic covers Refreshing covers during follow-up appointments Repairing worn cover edges Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres Public and humanitarian prosthetic services The Circleg Black Tape for CC1 is a small but essential consumable for a clean, professional cover finish.

Read more less

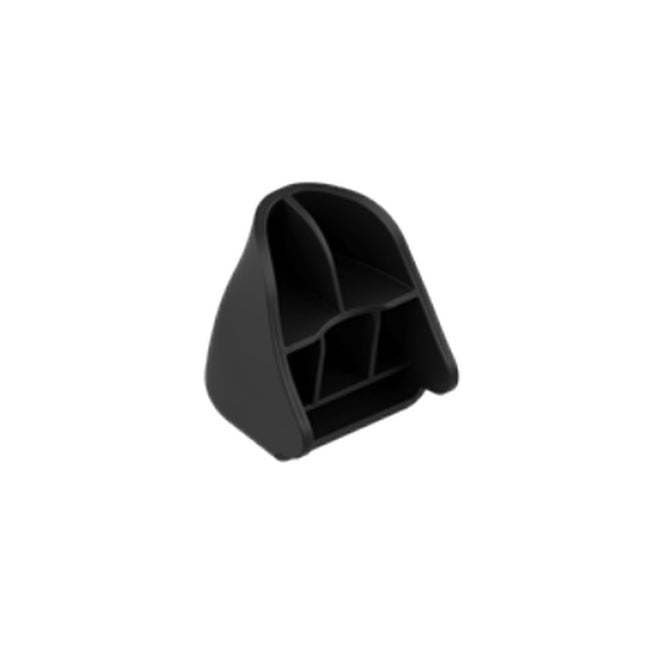

The Circleg Heel Cover for Dynamic Foot F1 is a genuine replacement heel component for the Circleg Dynamic Foot. Because every part of the Circleg system is individually replaceable, a worn heel cover can be changed in the clinic, restoring the foot without replacing the whole component. Key Features Genuine Circleg replacement part Restores the heel of a worn Dynamic Foot Avoids replacing the complete foot Quick clinic replacement Technical Characteristics Compatibility: Circleg Dynamic Foot F1 Supplied: Single heel cover Typical Applications in Prosthetics Routine maintenance of the Dynamic Foot Repair of worn or damaged heels Extending foot service life in high-use settings Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres Public and humanitarian prosthetic services The Circleg Heel Cover for Dynamic Foot F1 keeps Circleg feet in service for longer at minimal cost.

Read more less

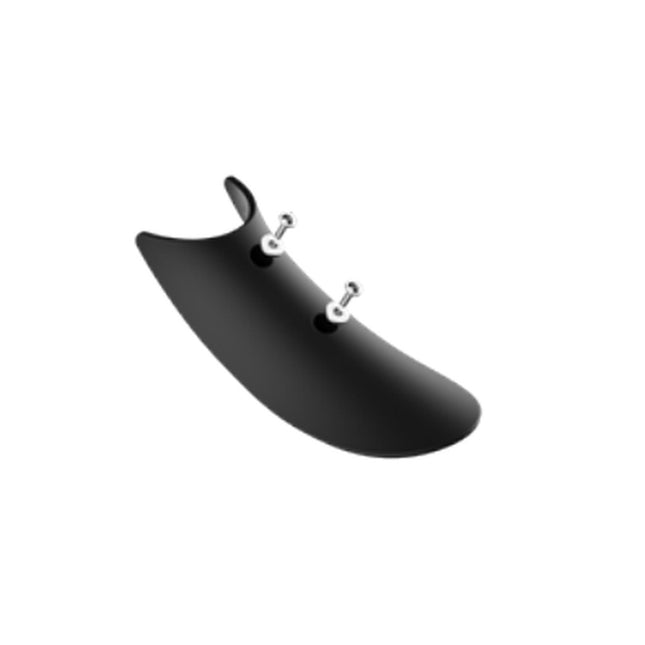

The Circleg Instep Cover for Dynamic Foot F1 is a genuine replacement instep component for the Circleg Dynamic Foot. Replacing the instep cover on its own lets clinics restore a worn foot quickly and cheaply, in line with Circleg's fully replaceable component design. Key Features Genuine Circleg replacement part Restores the instep of a worn Dynamic Foot Avoids replacing the complete foot Quick clinic replacement Technical Characteristics Compatibility: Circleg Dynamic Foot F1 Supplied: Single instep cover Typical Applications in Prosthetics Routine maintenance of the Dynamic Foot Repair of worn or damaged instep covers Extending foot service life Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres Public and humanitarian prosthetic services The Circleg Instep Cover for Dynamic Foot F1 is a cost-effective way to keep Circleg feet looking and working as new.

Read more less

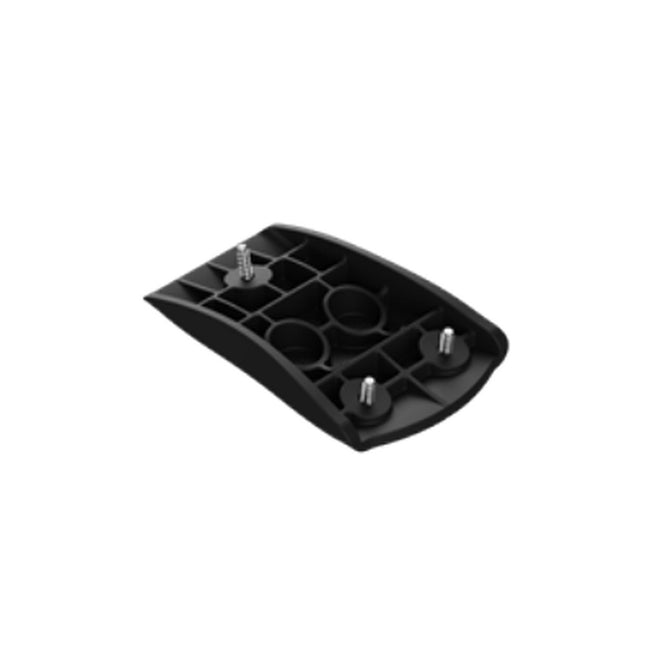

The Circleg Sole Pad Kit is a genuine replacement sole for the Circleg Dynamic Foot F1, available in S, M and L to match each foot size. The sole pad takes the wear of daily walking. Swapping it in the clinic restores grip and ground contact without replacing the foot itself. Key Features Genuine Circleg replacement part Sizes S, M and L to match the Dynamic Foot Restores grip and ground contact Avoids replacing the complete foot Quick clinic replacement Technical Characteristics Compatibility: Circleg Dynamic Foot F1 Sizes: S (21–24cm foot), M (24–27cm foot), L (27–30cm foot) Supplied: Kit Typical Applications in Prosthetics Routine maintenance of the Dynamic Foot Replacement of worn soles in high-use or outdoor settings Extending foot service life Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres Public and humanitarian prosthetic services The Circleg Sole Pad Kit keeps Dynamic Feet walking safely for longer, matched size for size.

Read more less

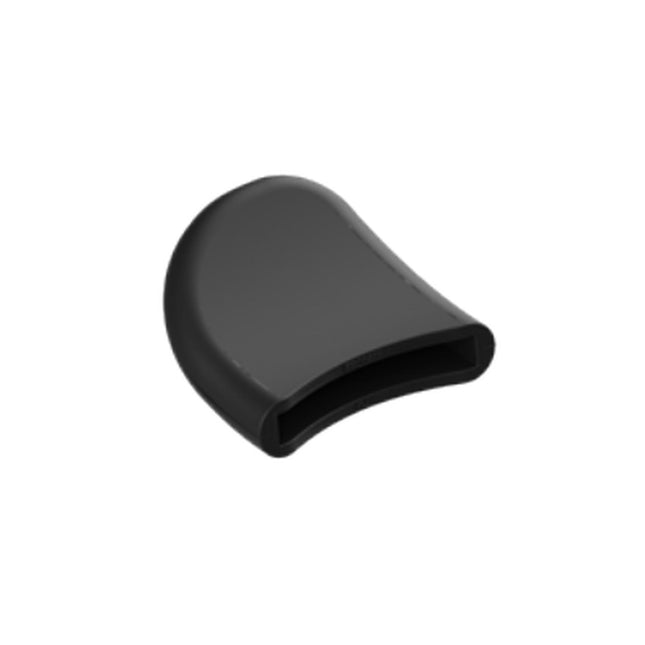

The Circleg Toe Cover for Dynamic Foot F1 is a genuine replacement toe component for the Circleg Dynamic Foot. The toe area takes significant wear at toe-off. A replacement toe cover restores the foot in minutes without replacing the full component. Key Features Genuine Circleg replacement part Restores the toe of a worn Dynamic Foot Avoids replacing the complete foot Quick clinic replacement Technical Characteristics Compatibility: Circleg Dynamic Foot F1 Supplied: Single toe cover Typical Applications in Prosthetics Routine maintenance of the Dynamic Foot Repair of worn or damaged toe covers Extending foot service life Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres Public and humanitarian prosthetic services The Circleg Toe Cover for Dynamic Foot F1 is a simple, low-cost way to extend the life of Circleg feet.

Read more less

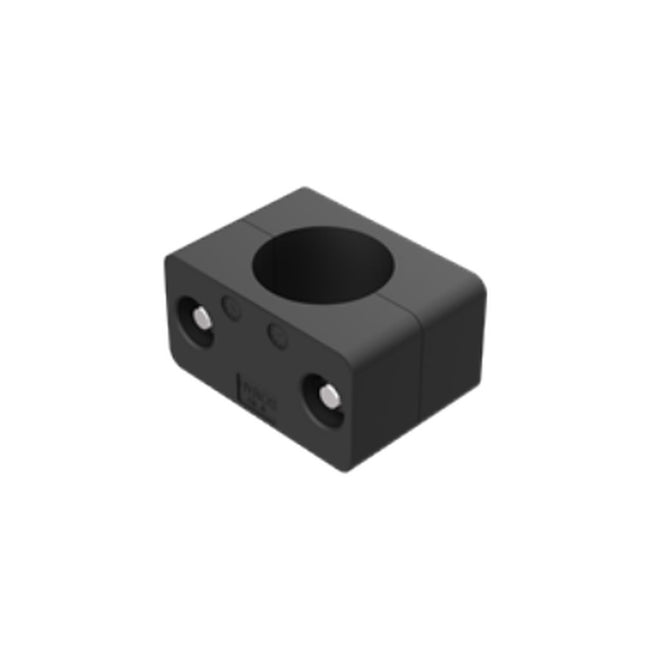

The Circleg Tube Clamp Set is a genuine replacement clamp set for the Circleg prosthetic system. Keeping spare clamp sets in stock lets clinics service and rebuild Circleg prostheses without waiting for complete kits, supporting the system's fully replaceable design. Key Features Genuine Circleg replacement part For servicing and rebuilding Circleg prostheses Individually replaceable Supports long system service life Technical Characteristics Compatibility: Circleg prosthetic system Supplied: Clamp set Typical Applications in Prosthetics Replacement of worn or lost clamp parts Servicing and rebuilding prostheses Workshop spare-parts stock Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres Public and humanitarian prosthetic services The Circleg Tube Clamp Set helps clinics keep every Circleg prosthesis serviceable for the long term.

Read more less

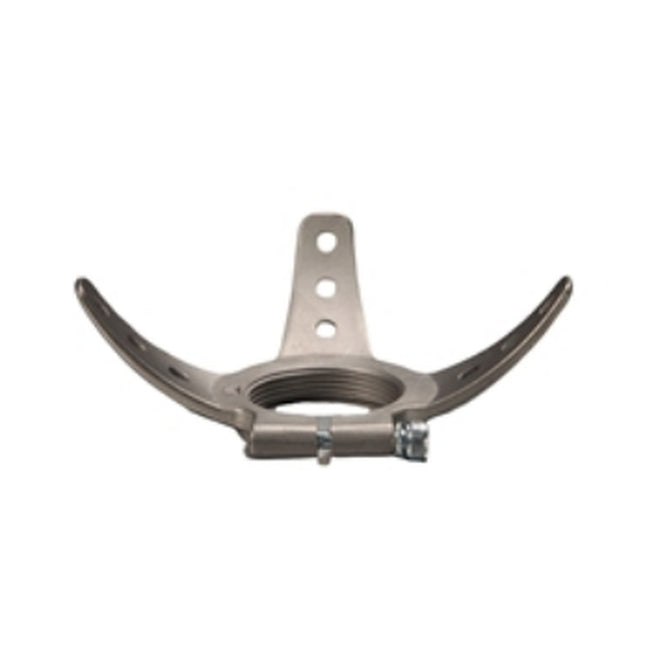

The Circleg 3-Arm Lamination Anchor is a metal anchor that is laminated into the distal end of a prosthetic socket to provide a secure connection to the modular system. It is supplied by Circleg as a third-party component for use with Circleg builds. Its three arms spread the load into the laminate, creating a strong, permanent bond between socket and componentry. Key Features Three-arm design spreads load into the laminate Permanent connection between socket and modular components For use with the Circleg prosthetic system Supplied through the Circleg range Technical Characteristics Type: Lamination anchor, 3-arm Connection: Socket to modular prosthetic system Installation: Laminated into the socket Typical Applications in Prosthetics Laminated transfemoral sockets Laminated transtibial sockets Connecting custom sockets to Circleg components Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres P&O training institutions The Circleg 3-Arm Lamination Anchor gives prosthetists a dependable way to connect a laminated socket to a Circleg build.

Read more less

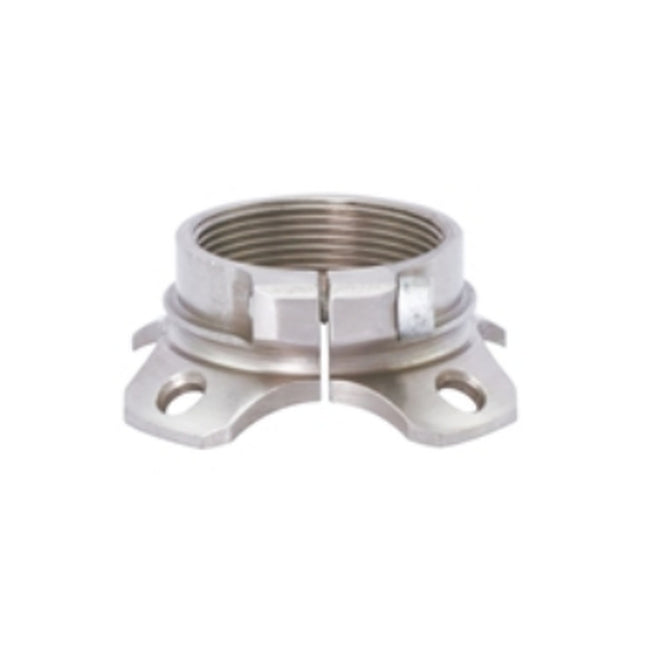

The Circleg 4-Ear Lamination Anchor is a metal lamination anchor with four ears, laminated into the socket to give a secure, rotationally stable connection to the modular system. It is supplied by Circleg as a third-party component for use with Circleg builds. The four-ear design anchors firmly in the laminate, providing a robust interface for the distal connection. Key Features Four-ear design for a secure, stable bond Permanent connection between socket and modular components For use with the Circleg prosthetic system Supplied through the Circleg range Technical Characteristics Type: Lamination anchor, 4-ear Connection: Socket to modular prosthetic system Installation: Laminated into the socket Typical Applications in Prosthetics Laminated transfemoral sockets Laminated transtibial sockets Connecting custom sockets to Circleg components Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres P&O training institutions The Circleg 4-Ear Lamination Anchor provides a strong, stable base for connecting laminated sockets to the Circleg system.

Read more less

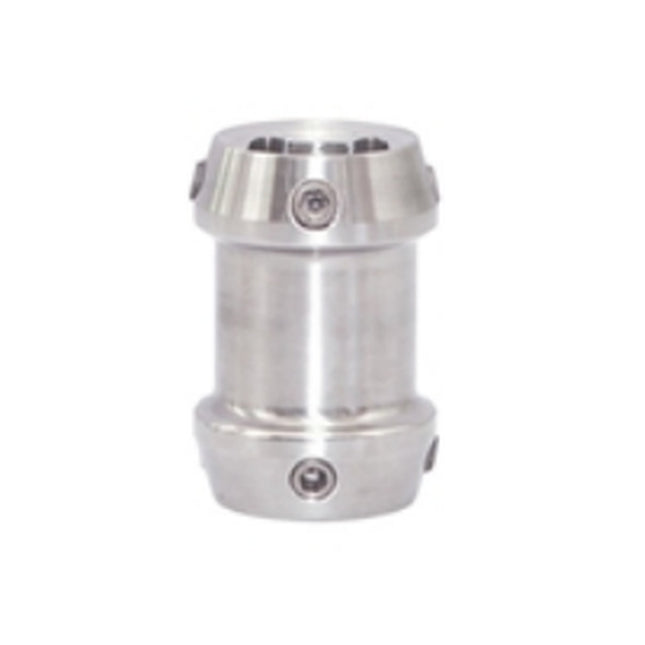

The Circleg Double Adapter is a metal modular adapter used to join prosthetic components and set the overall length of a build. It is available in 32mm, 45mm and 60mm lengths and is supplied by Circleg as a third-party component for use with Circleg prostheses. Choosing the right length lets prosthetists fine-tune limb length and alignment, particularly in short builds where a full pylon will not fit. Key Features Three lengths: 32mm, 45mm and 60mm Joins modular prosthetic components Helps set limb length in short builds For use with the Circleg prosthetic system Supplied through the Circleg range Technical Characteristics Type: Double adapter Lengths: 32mm, 45mm, 60mm Typical Applications in Prosthetics Short transtibial and transfemoral builds Length and alignment adjustment Connecting modular components without a pylon Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres P&O training institutions The Circleg Double Adapter offers a simple, flexible way to connect components and fine-tune length in Circleg builds.

Read more less

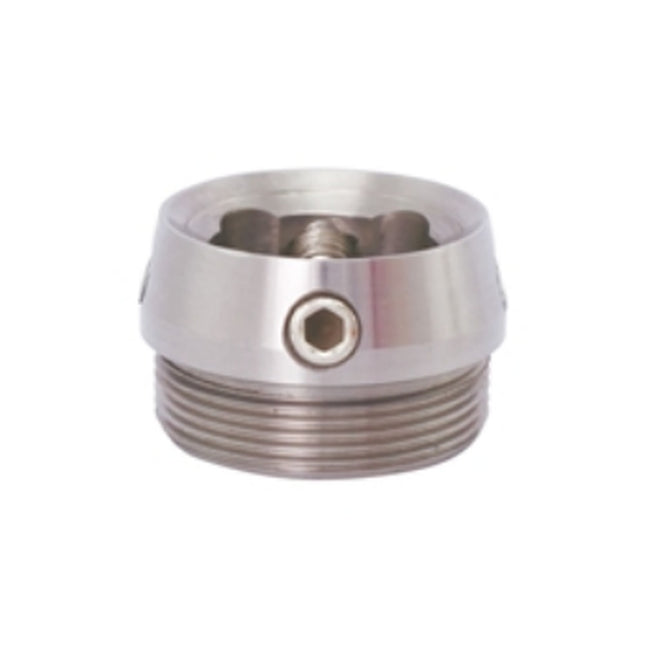

The Circleg Female Insert is a metal modular insert that provides a female connection point within a prosthetic build. It is supplied by Circleg as a third-party component for use with Circleg prostheses. It allows prosthetists to create a secure female interface for joining components in socket and modular assemblies. Key Features Female connection for modular assemblies Secure fit for socket and modular connections For use with the Circleg prosthetic system Supplied through the Circleg range Technical Characteristics Type: Female insert Connection: Modular prosthetic system Typical Applications in Prosthetics Socket-to-component connections Modular prosthetic assemblies Replacement of worn inserts Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres P&O training institutions The Circleg Female Insert is a dependable connection component for building and servicing Circleg prostheses.

Read more less

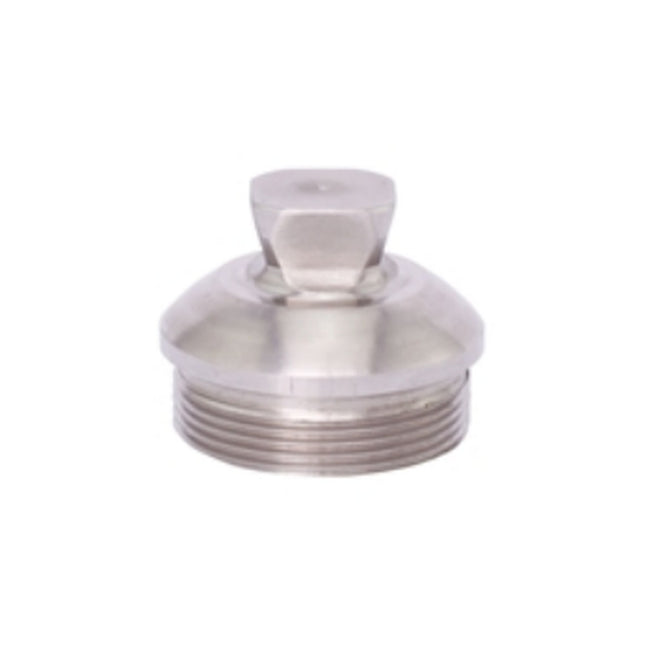

The Circleg Pyramid Insert is a metal modular insert that provides a male pyramid connection within a prosthetic build. It is supplied by Circleg as a third-party component for use with Circleg prostheses. The pyramid connection is the industry-standard interface for aligning and joining modular components, allowing angular adjustment during fitting. Key Features Male pyramid connection Allows alignment adjustment during fitting For use with the Circleg prosthetic system Supplied through the Circleg range Technical Characteristics Type: Pyramid insert Connection: Pyramid (male) Typical Applications in Prosthetics Socket-to-component connections Alignment of modular prosthetic components Replacement of worn inserts Typical Users Prosthetic & orthotic clinics Prosthetic workshops and laboratories Rehabilitation hospitals and centres P&O training institutions The Circleg Pyramid Insert provides a standard, adjustable pyramid interface for Circleg builds.

Read more less
