Description

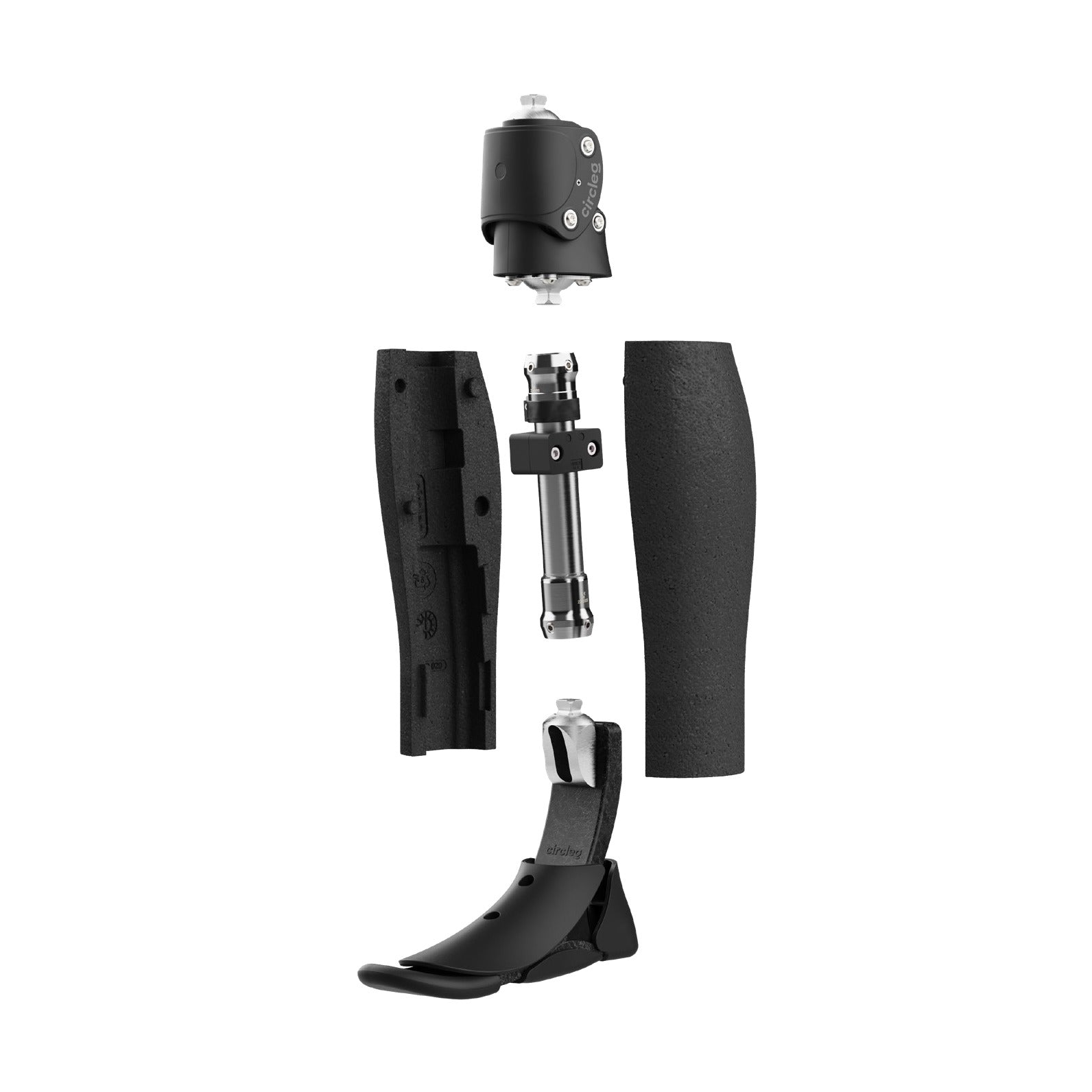

The Circleg Transfemoral Prosthetic Kit is a complete modular above-knee prosthetic system supplied as a single order: the Circleg Polycentric Knee, Circleg Dynamic Foot and Circleg TF Cosmetic Cover, with or without the Circleg 250mm Pylon Kit. Developed in Switzerland for demanding environments and diverse patient populations, it gives prosthetic clinics a dependable, clinically proven transfemoral build at a fraction of the cost of premium imported components.
The fully mechanical design has no electronics, needs no scheduled maintenance and uses standard pyramid connections throughout. Adjustable sizing, a bilateral foot and interchangeable parts mean a small number of kits can serve a wide range of users, cutting component stock by up to 80% and prosthetic finishing time by up to 70%.
Choose the cover size to match the user's height, the foot size to match foot length and body weight, and whether the kit should include the pylon. Kits without the pylon suit clinics that already stock their own tube adapters.
Key Features
Complete transfemoral system: knee, foot, cosmetic cover and optional pylon
Covers K1–K3 activity levels, from household to active community walkers
Polycentric knee with high stance stability and up to 150° flexion
Energy-returning Dynamic Foot (above 85% energy return)
Bilateral foot: the same foot fits left or right
Three foot sizes cover the full adult range of 21–30cm
No electronics and no scheduled maintenance
Every component individually replaceable
Quick-fit clamp cosmetic cover for fast finishing
CE marked, developed under an ISO 13485 certified quality management system
What's in the Kit
Circleg Polycentric Knee (PK1)
Circleg Dynamic Foot, size S, M or L
Circleg Cosmetic Cover TF, size S/M or M/L
Circleg Pylon Kit, 250mm, with two female pyramid adapters (With Pylon option only)
Choosing Sizes
Cover TF S/M: user height 150–170cm
Cover TF M/L: user height 170–190cm
Foot S: foot length 21–24cm, body weight up to 70kg
Foot M: foot length 24–27cm, body weight up to 90kg
Foot L: foot length 27–30cm, body weight up to 110kg
Technical Characteristics
Amputation Level: Transfemoral
Activity Level: K1, K2, K3
Maximum Body Weight: 110kg (limited by foot size selected)
Connections: Pyramid adapter system
Knee: Polycentric, 150° flexion, extension assist spring and flexion damper
Structural Testing: ISO 10328 (knee 3,000,000 cycles, foot 2,000,000 cycles, no structural failure)
Dust Resistance: IP5KX, whole system tested to ISO 20653
Field Record: Zero structural failures across 3+ years of market use
Typical Applications in Prosthetics
Definitive above-knee prostheses
First fittings and interim prostheses
Large-volume public and humanitarian prosthetic programmes
Fittings in hot, dusty, humid or rough-terrain environments
Clinics standardising on a small, low-stock component range
Typical Users
Prosthetic & orthotic clinics
Rehabilitation hospitals and centres
Ministry of Health and public hospital prosthetic services
NGO and humanitarian prosthetic programmes
Prosthetic workshops and laboratories
Universities & P&O training institutions
The Circleg Transfemoral Prosthetic Kit gives clinics a complete, durable and affordable above-knee solution, combining clinical-grade performance with a simple, low-stock operating model that lets prosthetists fit more patients with fewer components.
