Description

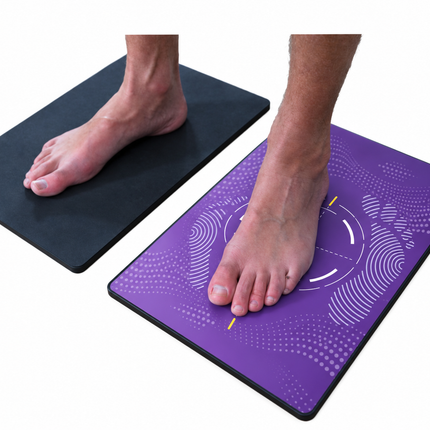

The Qaadir Insight Mini is a compact, wireless foot pressure (baropodometry) platform that brings plantar pressure assessment into any clinic, pharmacy or outreach setting. Weighing just 0.95kg, it connects by Bluetooth or USB to a smartphone, tablet or PC and displays foot pressure in both static and dynamic modes within seconds.
Its 800 resistive sensors cover a 400 x 200mm active area, capturing data at up to 100Hz. The Insight Mini scores diabetic foot risk and highlights the areas most at risk of ulceration, helping clinicians identify high-risk patients early and explain findings visually. Force curves, gait line and left/right and front/back load distribution support orthotic prescription, footwear advice and follow-up.
Light, portable and simple to use, it suits podiatrists, orthotists and foot health teams who need reliable pressure data without a full gait lab. Results are saved to a patient database and can be printed or shared as a PDF report in one click.
Key Features
-
Static and dynamic plantar pressure display
-
800 sensors across a 400 x 200mm active area
-
Ultra-light at 0.95kg and only 11mm thick
-
Diabetic foot scoring with ulcer-risk areas highlighted
-
Bluetooth or USB connection
-

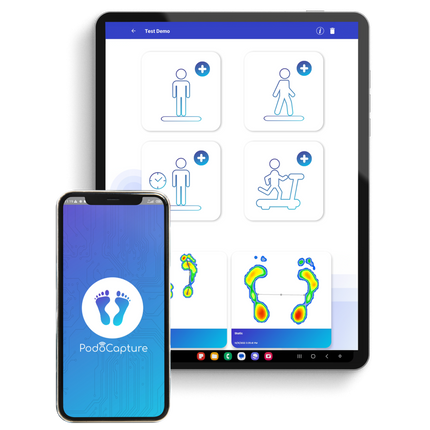

Free companion app for Android smartphones and tablets from Google Play
-

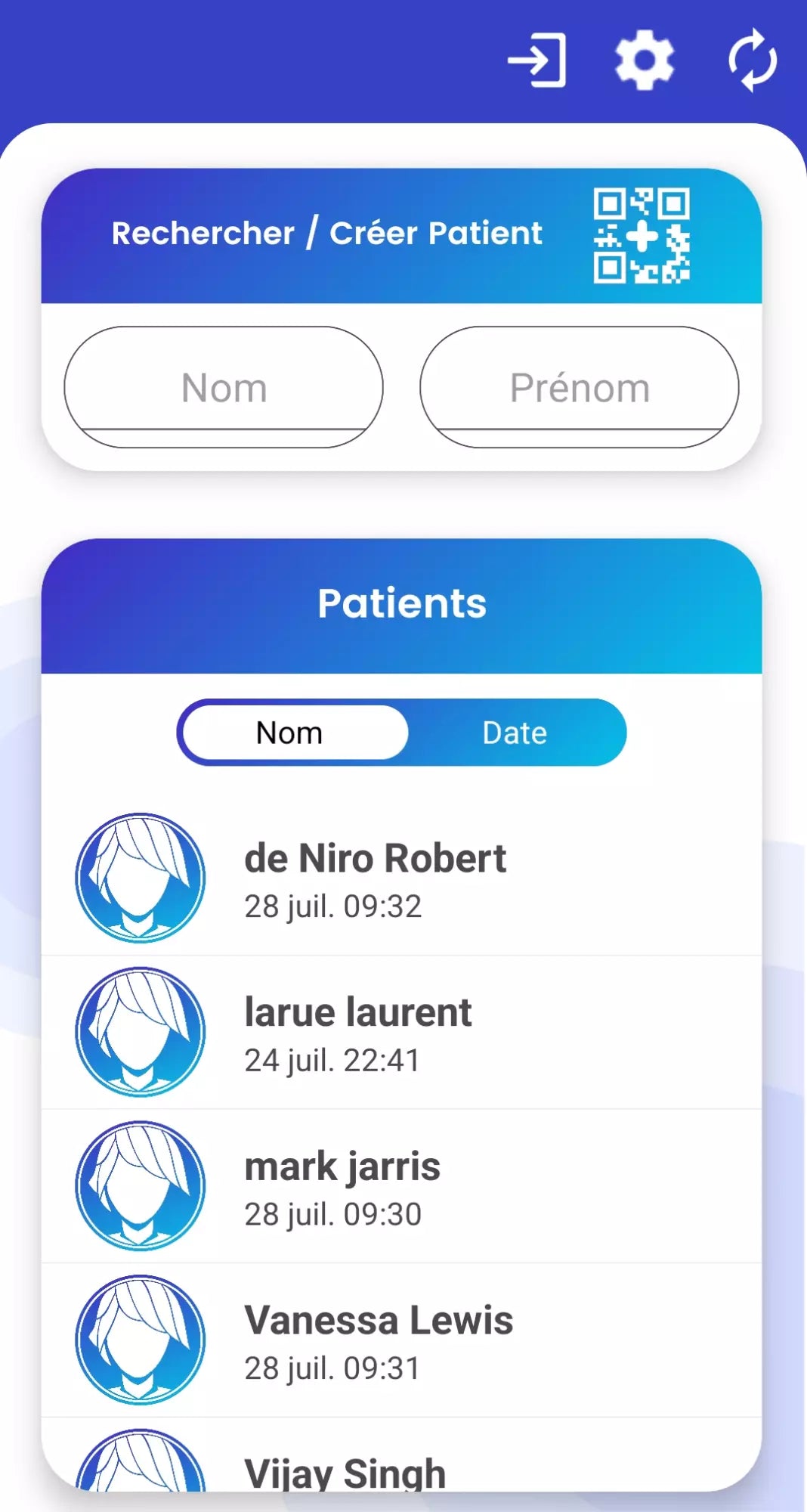

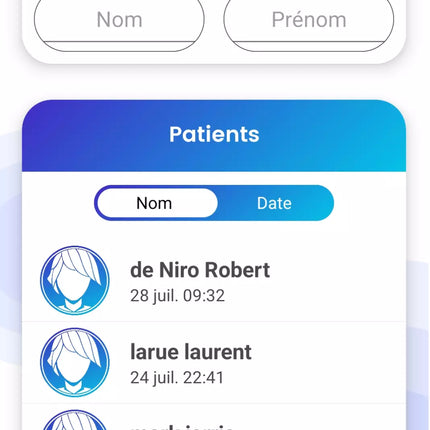

Patient database with full history, voice or written notes and photos
-

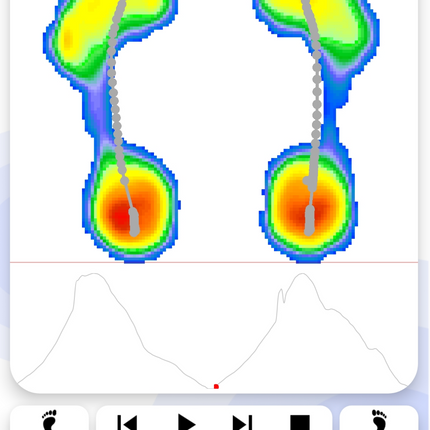

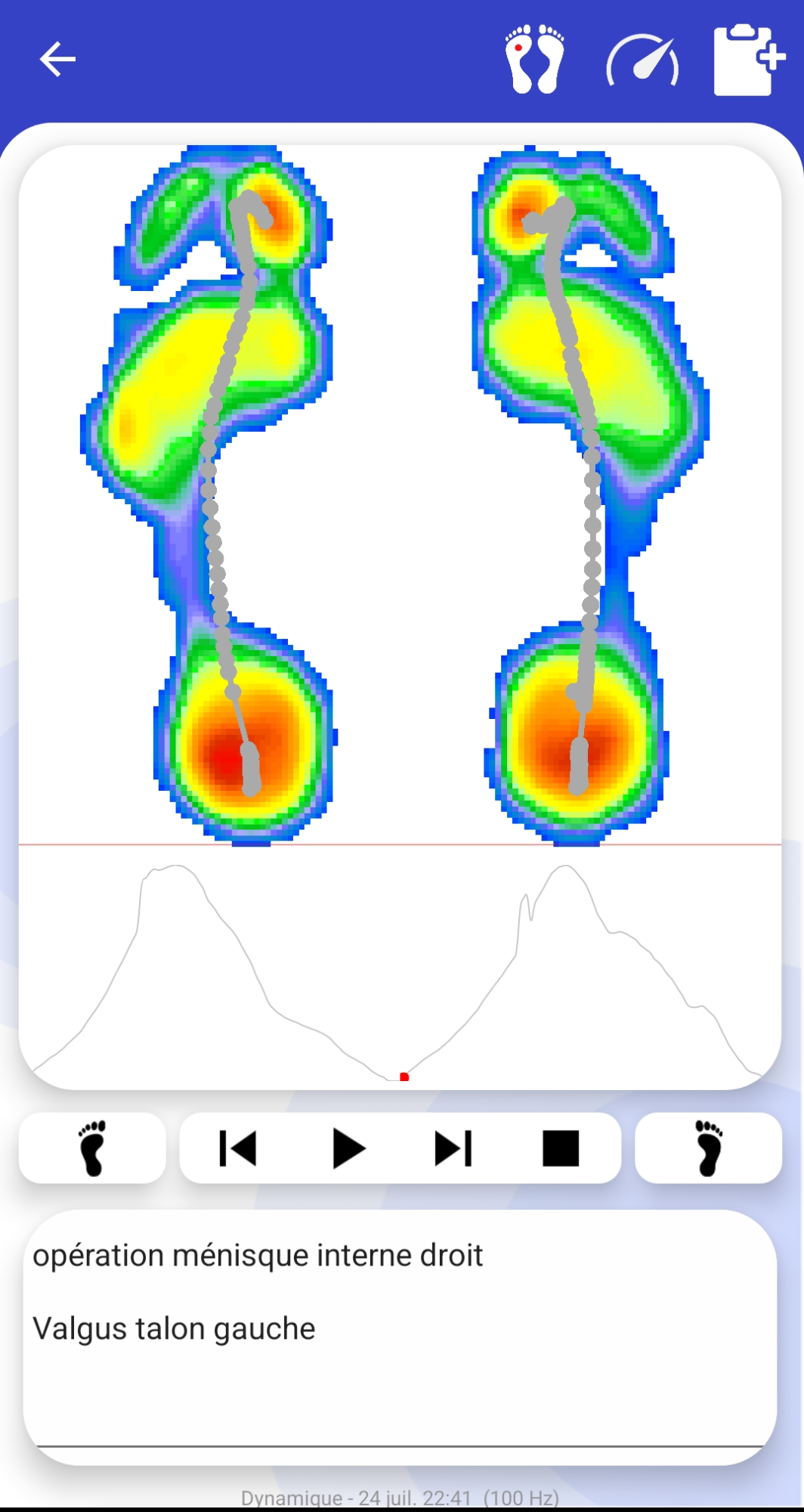

Force curves, gait line, left/right and anterior/posterior analysis
-
Average and maximum pressure and contact surface measurements
-

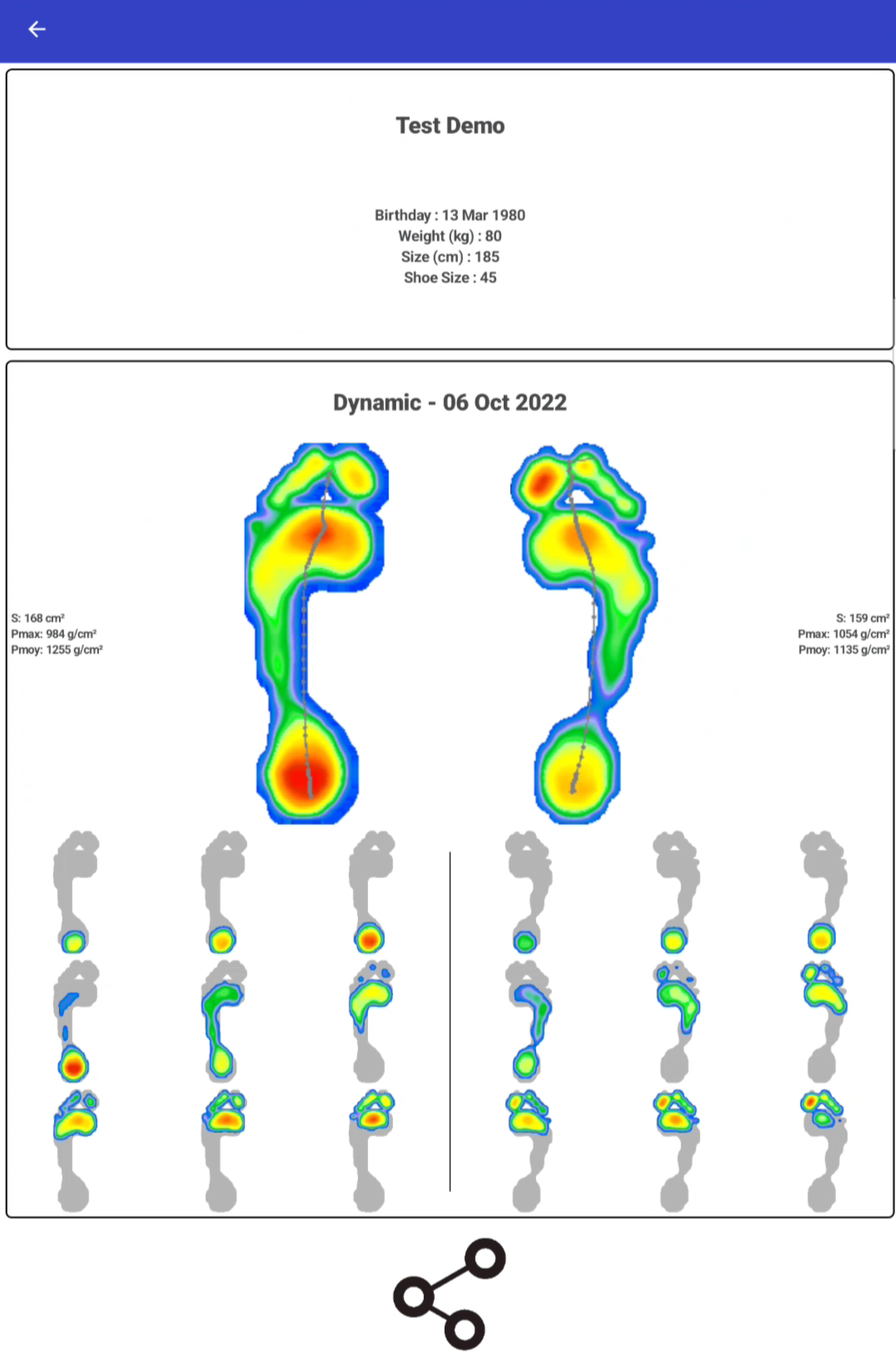

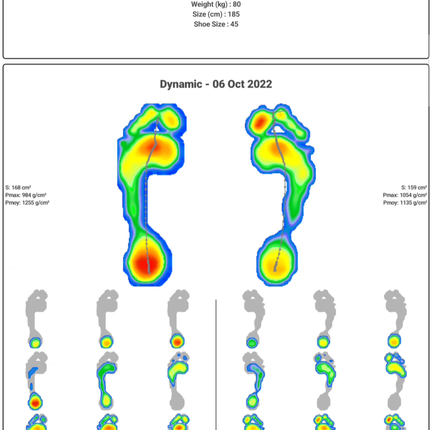

Instant PDF reports, one-click printing over Wi-Fi
-
Share results by email, WhatsApp or SMS
-
Sensors rated for more than 1,000,000 actuations
-

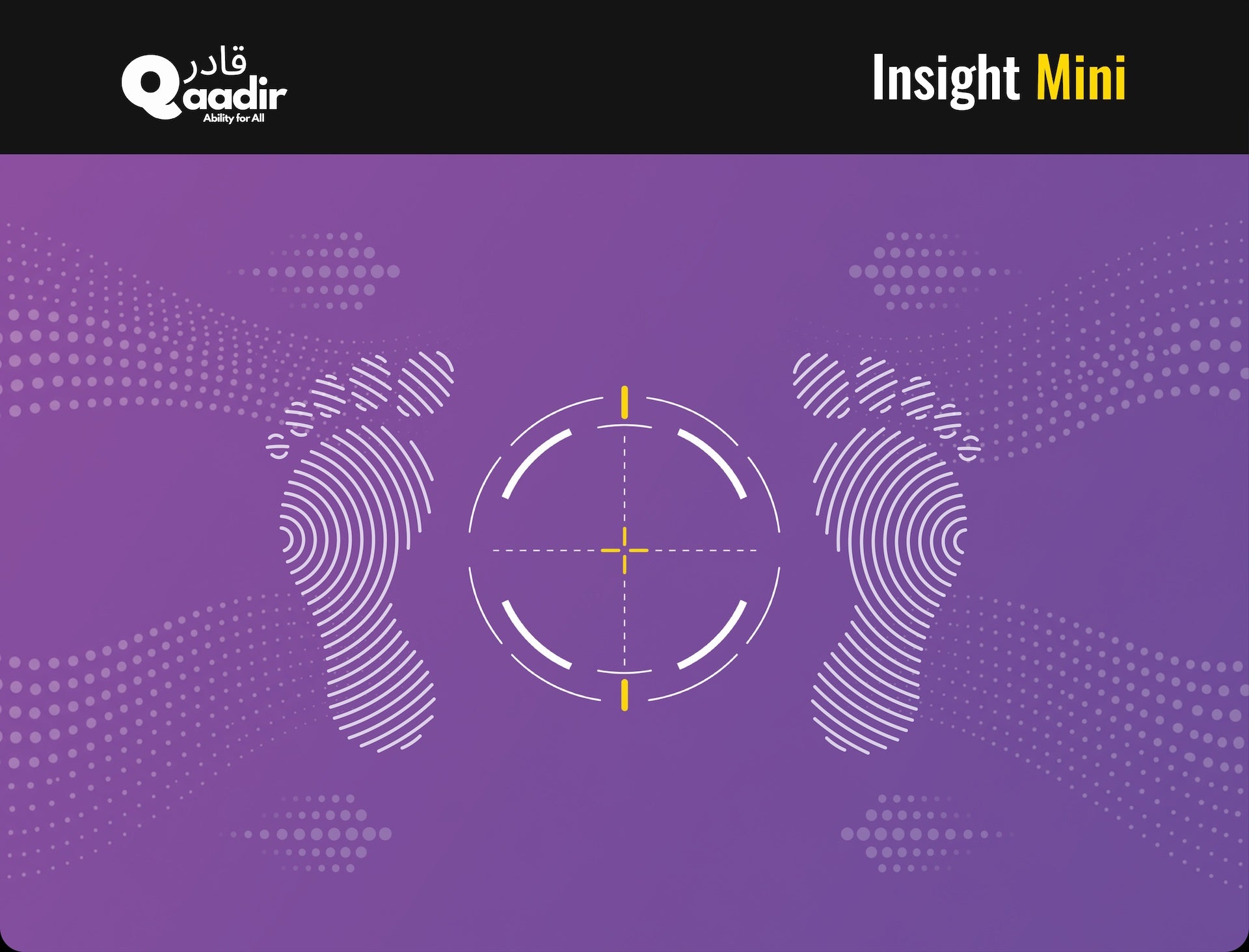

Qaadir-branded plate and app
Technical Characteristics
-
Size (L x W): 430 x 280mm
-
Thickness (sensor area): 11mm
-
Active Area: 400 x 200mm
-
Weight: 0.95kg
-
Sensor Type: Resistive
-
Sensor Size: 10 x 10mm
-
Number of Sensors: 800 (40 x 20)
-
Maximum Pressure: 100 N/cm²
-
Acquisition Frequency: Up to 100Hz
-
A/D Conversion: 8 bits
-
Sensor Lifetime: More than 1,000,000 actuations
-
Temperature Range: −40°C to +85°C
-
Interface: Bluetooth and USB
-
Power Supply: USB
-
Modes: Static and dynamic acquisition
-
Outputs: Pressure maps, average and maximum pressures, surfaces, force curves, gait line, diabetic foot risk score
-
Reports: Instant PDF, print, email, WhatsApp, SMS
Accessories (available separately)
Typical Applications in Prosthetics & Orthotics
-
Diabetic foot screening and ulcer prevention
-
Custom foot orthotic and insole prescription
-
Footwear assessment and fitting advice
-
Pre- and post-treatment comparison
-
Sports and running assessments
-
Community and outreach screening programmes
Typical Users
-
Podiatry and chiropody clinics
-
Orthotic and prosthetic clinics
-
Diabetes and wound care centres
-
Pharmacies and foot health retailers
-
Sports medicine and physiotherapy practices
-
Mobile and outreach health teams
The Qaadir Insight Mini puts fast, visual foot pressure assessment in the palm of your hand, helping clinicians screen diabetic feet, guide orthotic decisions and show patients exactly where their feet are under pressure.
