Description

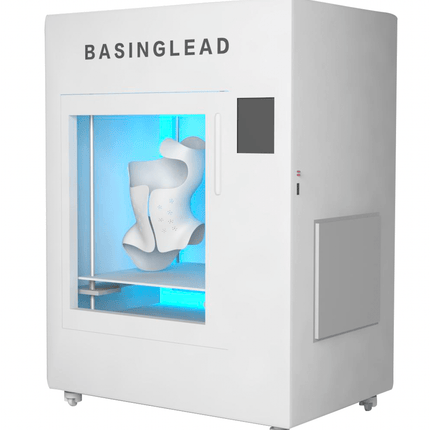

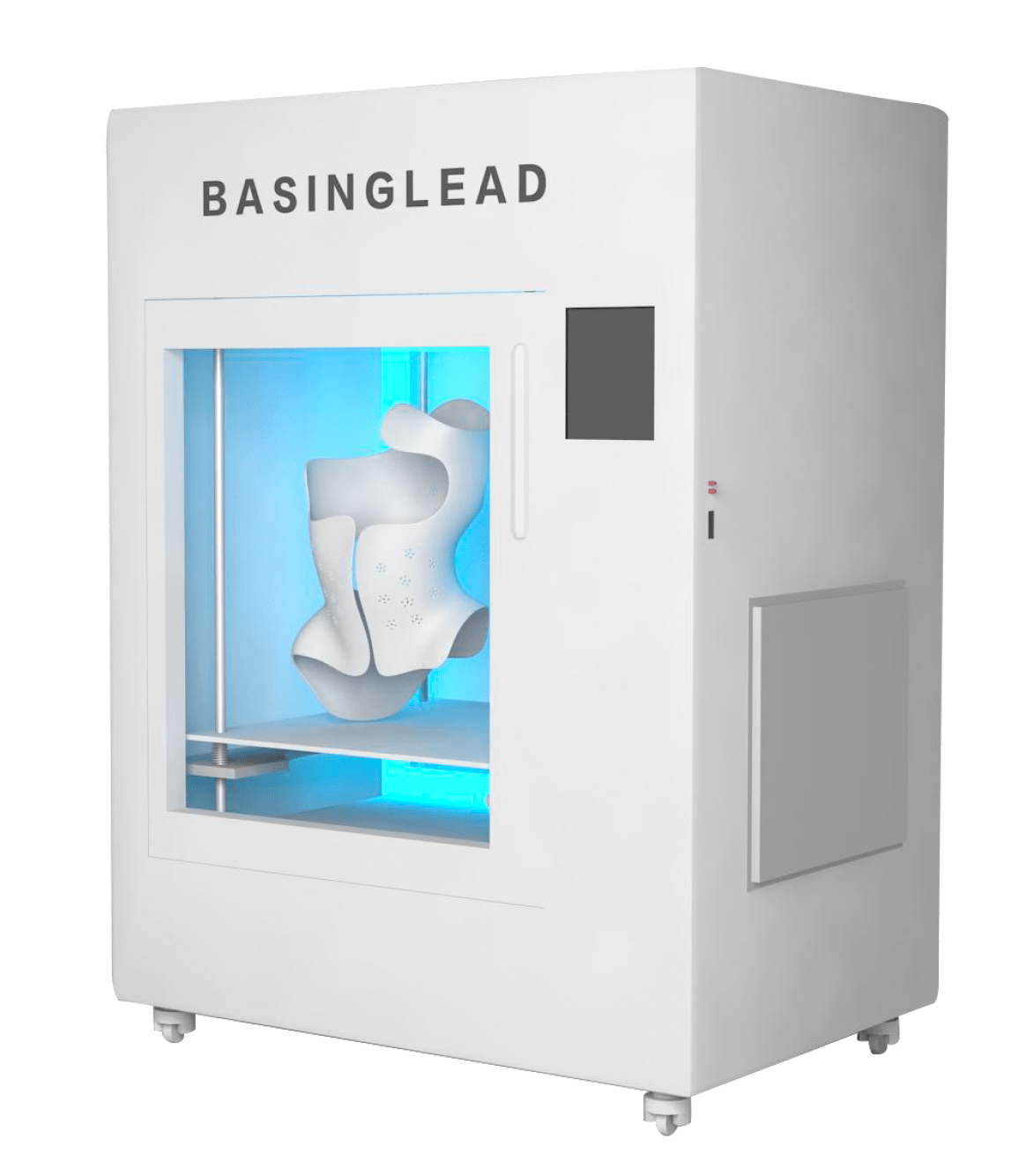

The Basinglead Truth-600 3D Printer is an industrial-grade large-format FDM printer designed specifically for the production of spinal braces, orthotic shells, and large custom rehabilitation devices. With an extra-large build volume of 600 × 600 × 1000 mm, the Truth-600 allows full-size torso orthoses, scoliosis braces, TLSO, and other large orthotic components to be printed in a single build, making it ideal for modern digital orthotics workflows.
The system features a fully enclosed chassis, dual Z-axis mechanical structure, and high-precision servo-driven motion control, ensuring stable printing even for tall or complex models. A closed air filtration system, power-loss recovery, and material-runout detection provide reliable long-duration printing, which is essential when producing large orthotic devices that may require many hours of continuous operation.
With support for flexible and rigid materials including TPU, PETG, PLA, and ABS, the Truth-600 enables production of lightweight, ventilated, and patient-specific braces using CAD/CAM and 3D scanning workflows.
This printer is ideal for prosthetic & orthotic laboratories, hospitals, scoliosis clinics, and digital orthotics manufacturing centres.
Key Features
-
Large-format 3D printer for spinal brace production
-
Extra-large build volume for full torso orthoses
-
High precision servo motion control system
-
Fully enclosed industrial chassis
-
Dual Z-axis synchronous screw structure
-
Built-in air filtration system
-
Power-loss resume printing function
-
Filament run-out detection alarm
-
High temperature extrusion for engineering materials
-
Compatible with flexible and rigid filaments
-
Built-in LED lighting for monitoring prints
-
Large colour touchscreen control panel
Technical Specifications
-
Model: Truth-600
-
Printing Technology: FDM (Fused Deposition Modelling)
-
Build Volume: 600 × 600 × 1000 mm
-
Layer Resolution: 0.05 – 0.3 mm
-
Positioning Accuracy: ≤ 0.0125 mm
-
Number of Nozzles: 1
-
Printing Speed: 30 – 250 mm/s
-
Nozzle Diameter Options:
-
0.3 mm
-
0.4 mm
-
0.5 mm
-
0.6 mm
-
0.8 mm
-
Max Nozzle Temperature: 310°C
-
Supported Materials: PLA, ABS, TPU, PETG
-
Chassis Structure: Fully enclosed, front door + top opening
-
Motion System: Dual Z-axis synchronous screw + linear guide + servo motor
-
Filtration System: Included
-
Power-loss Resume: Supported
-
Material Run-out Alarm: Supported
-
Control Screen: 10.1 inch colour display
-
CPU: 32-bit ARM microcontroller
-
File Formats: STL, OBJ
-
External Storage: USB / SD card / U-disk
-
Operating System Support: Windows / Linux / Mac
-
Power Supply: AC100–240V, 50/60 Hz
-
Machine Size: 1200 × 950 × 1850 mm
-
Packing Size: 1350 × 1100 × 2000 mm
-
Gross Weight: ≥ 330 kg
-
Recommended Operating Temperature: 15–32°C
-
Storage Temperature: 0–32°C
-
Filament Storage: Suspended feeding system
Typical Applications in Orthotics & Prosthetics
-
Scoliosis braces (TLSO, LSO, Boston brace)
-
Custom spinal orthoses
-
Large AFO / KAFO shells
-
Prosthetic check sockets
-
Seating and positioning shells
-
Rehabilitation supports
-
Research and development devices
Typical Users
-
Orthotic & prosthetic laboratories
-
Scoliosis clinics
-
Rehabilitation hospitals
-
Universities & research centres
-
Digital orthotics manufacturers
-
Humanitarian fabrication centres
The Basinglead Truth-600 Spinal Brace 3D Printer provides a powerful large-format digital manufacturing solution, enabling orthotic professionals to produce full-size custom braces with high precision, improved ventilation design, and reduced fabrication time compared with traditional methods.
