nora® Lunatec combiCAD 1 is an advanced multilayer expanded EVA milling sheet developed for CAD CAM fabrication in orthotics, prosthetics, and orthopaedic footwear production. This innovative composite material combines three different EVA qualities vulcanised together during the manufacturing process, creating a stable, high performance milling blank without the need for adhesive bonding between layers.
The combiCAD construction is designed to combine the excellent milling behaviour of nora® Lunatec CAD materials with the functional advantages of vulcanised composite sheets. Because the layers are permanently fused during production, the material provides superior strength, consistent structure, and clean machining without irregularities caused by glue layers. This results in improved durability, better surface quality, and reliable mechanical performance in finished orthotic devices.

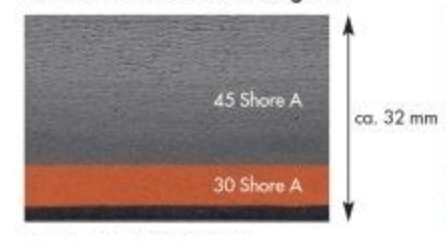

Material construction
Top stabilising layer
Middle cushioning layer
-
Material: nora® Lunasoft SLW
-
Hardness: approx. 30 Shore A
-
Density: approx. 0.20 g/cm³
-
Colour: 137 terra
-
Thickness: approx. 6 mm
Base milling layer
-
Material: nora® Lunatec CAD 45
-
Hardness: approx. 45 Shore A
-
Density: approx. 0.22 g/cm³
-
Colour: 56 stone grey
-
Thickness options: approx. 24 mm or approx. 32 mm
Formats
Intended applications
-
CAD CAM milled foot orthotics
-
Composite orthotic blanks
-
Functional footbeds with integrated cushioning
-
Orthopaedic footwear components
-
Structural and comfort combination insoles
-
Central fabrication workflows
-
Digital orthotic production
-
High performance orthotic builds
Key properties
-
Composite EVA sheet vulcanised during manufacture
-
No adhesive layers between materials
-
Excellent milling behaviour
-
Clean cutting with smooth surface finish
-
High tensile strength and elongation values
-
Consistent material structure
-
No irregularities caused by glue layers
-
Stable bonding between layers
-
Optimised functional performance
-
Reliable replication in CAD CAM production
Advantages of combiCAD construction
-
Stronger than bonded multilayer sheets
-
No risk of layer separation
-
Improved machining accuracy
-
Better durability in finished orthoses
-
Reduced production time
-
Consistent quality in automated milling
-
Ideal for central fabrication
Processing notes
-
Designed for CNC and CAD CAM milling machines
-
No additional bonding required between layers
-
Can be bonded to other EVA materials using standard adhesives
-
Use appropriate tool speed and feed for best results
nora® Lunatec combiCAD 1 is an ideal composite milling material for orthotic, prosthetic, and orthopaedic footwear workshops requiring a high quality multilayer EVA blank with excellent machining properties, strong internal bonding, and reliable performance in modern CAD CAM production systems.
