Description

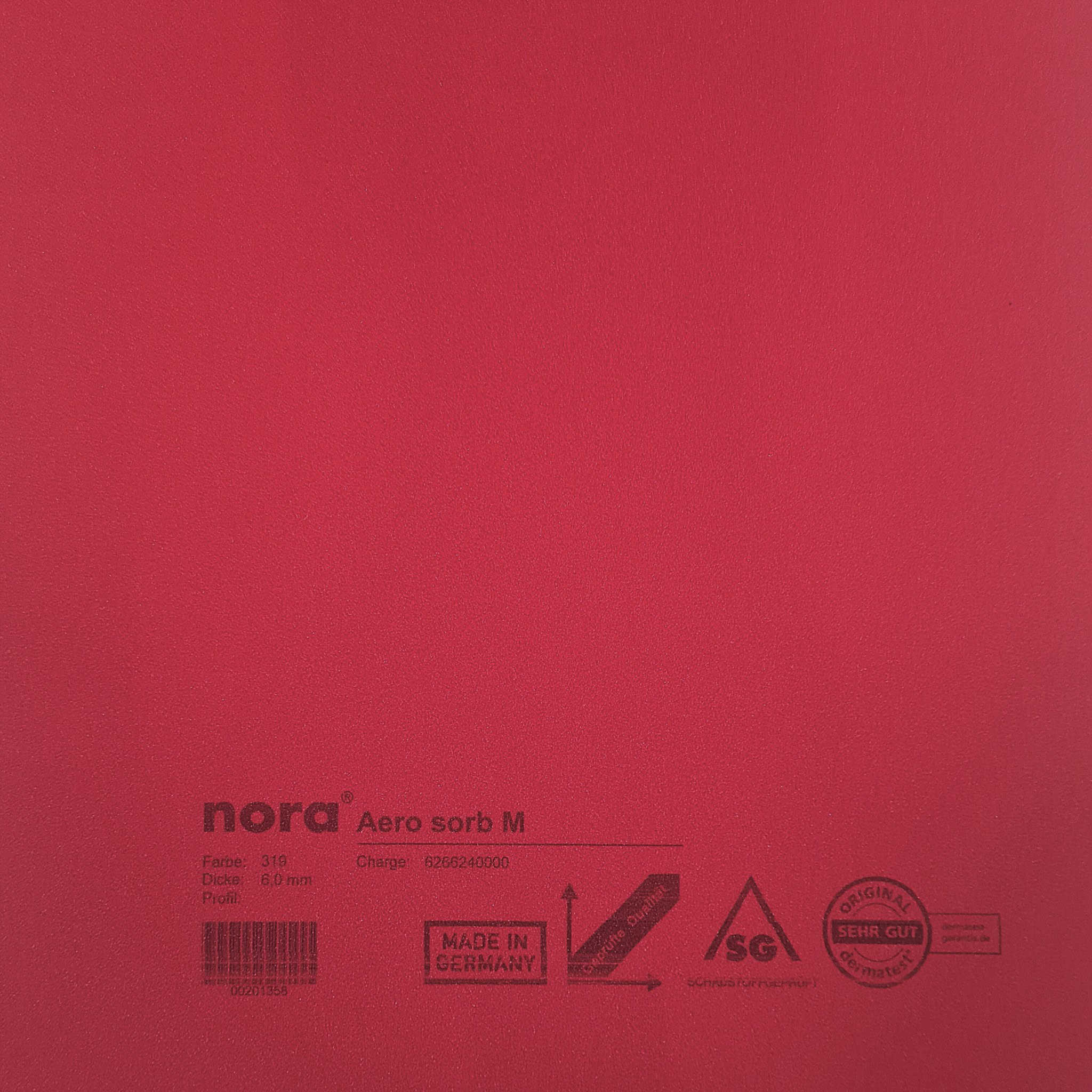

The nora® Aero sorb® M expanded rubber sheet – 319 velvet red is a lightweight, medium-soft cushioning material developed for orthotic, prosthetic, and orthopedic footwear applications requiring effective pressure relief combined with higher stability than ultra-soft grades. With its delayed recovery characteristics and excellent shock absorption, Aero sorb® M provides reliable cushioning while maintaining better support under load, making it ideal for patients who require comfort without excessive softness.
The material distributes concentrated pressure evenly across the contact surface, helping to reduce pain and protect sensitive tissue. This makes it particularly suitable for diabetic footbeds, heel spur relief, butterfly soles, and prosthetic or orthotic padding where both cushioning and resilience are required. Compared to softer grades, the medium hardness offers improved durability and performance for patients with higher body weight or increased activity levels.
The closed-cell expanded rubber structure prevents moisture and wound secretions from penetrating the material, ensuring hygienic use and long service life. Aero sorb® M is skin-tolerance tested and suitable for long-term clinical use, including diabetic-friendly applications.
Key Features
-
Medium-soft expanded rubber cushioning material
-
Delayed recovery for effective pressure distribution
-
Excellent shock absorbing properties
-
Good balance of cushioning and stability
-
Lightweight and durable structure
-
Suitable for diabetic and sensitive feet
-
Closed-cell, hygienic and disinfectable
-
Skin tolerance tested and certified
-
Excellent bonding properties
-
Thermoformable for custom shaping
-
Trusted nora® quality material
Technical Specifications
-
Material: nora® Aero sorb® M light-weight expanded rubber
-
Softness: M (medium)
-
Density: approx. 0.16 g/cm³
-
Sheet Size: approx. 800 × 550 mm (31.5" × 21.7")
-
Colour: 319 Velvet red
-
Thickness Options:
Performance & Properties
-
Shock-absorbing with delayed recovery capability
-
Even distribution of concentrated pressure
-
Excellent bedding characteristics
-
Suitable for higher load applications
-
Closed-cell structure prevents moisture penetration
-
Hygienic, washable, and durable
-
Dermatest certified skin compatibility
-
Diabetic-friendly material
Processing Notes
-
Thermoformable at approx. 110° – 130°C (230° – 266°F)
-
Excellent bonding with standard contact adhesives
-
Suitable for lamination with EVA, rubber, cork, and orthotic materials
-
Easy to cut, grind, and shape
Typical Applications in Orthotics & Prosthetics
-
Butterfly soles and relief inserts
-
Haglund heel cushioning
-
Heel spur cavities
-
Diabetic footbed cushioning layers
-
Local pressure relief pads
-
Prosthetic interface cushioning
-
Orthotic top covers
-
Sensitive foot applications
-
Rehabilitation footwear
-
Cushioning in braces and orthoses
The nora® Aero sorb® M expanded rubber sheet provides a balanced combination of cushioning, resilience, and durability, making it ideal for orthotic, prosthetic, and orthopedic footwear fabrication where reliable pressure relief and long-term comfort are required.
