Description

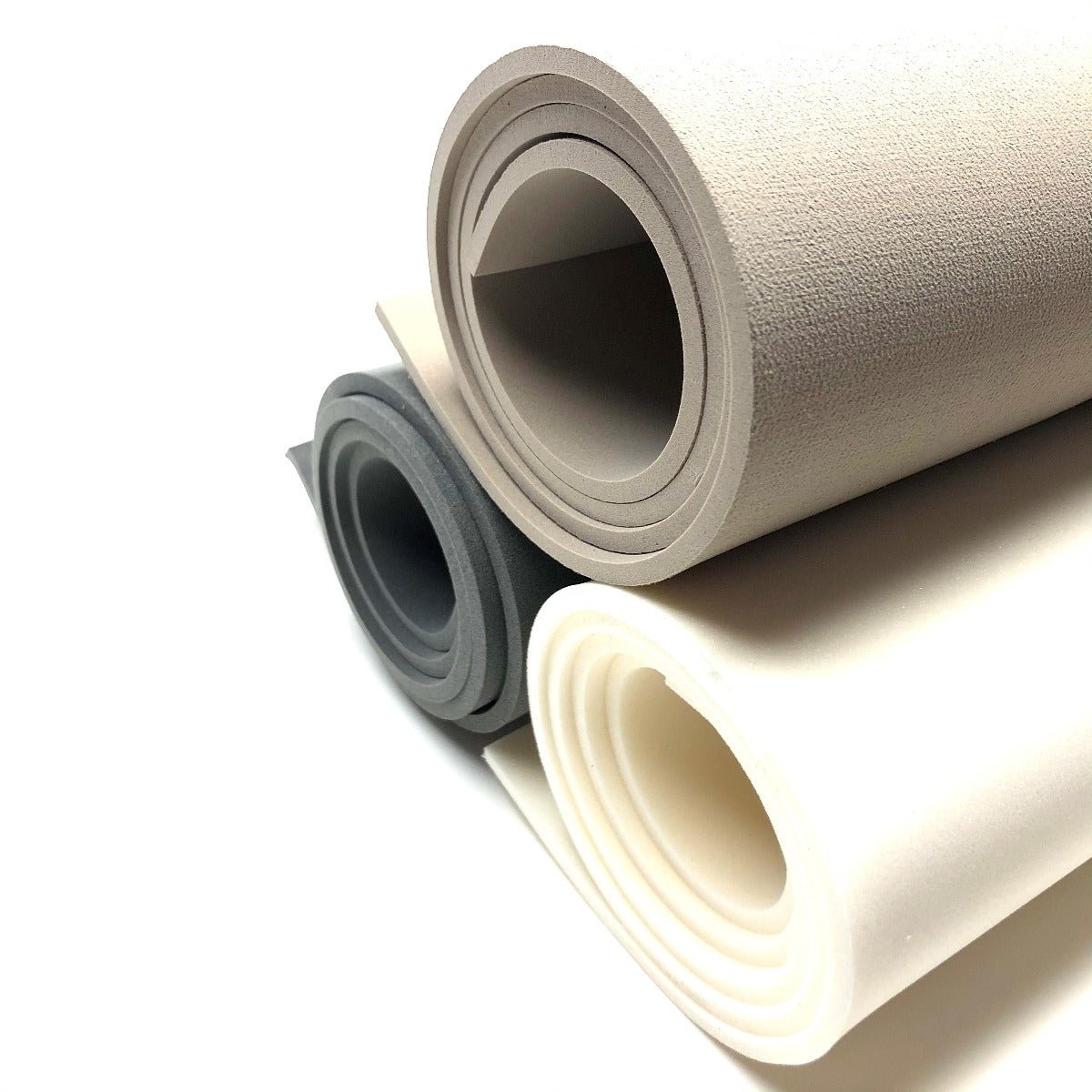

nora® Lunatec Motion A12 is an ultra soft expanded EVA sheet developed for applications requiring maximum cushioning, pressure relief, and shear force reduction. With a hardness of approximately 12 Shore A and a density of around 0.13 g/cm³, this material provides exceptional bedding and damping properties, making it ideal for sensitive feet, painful joints, and high risk patients.
The material is designed to absorb horizontal shear forces as well as vertical load, helping to reduce pain and improve comfort with every step. Its closed cell structure ensures durability, hygiene, and easy cleaning, while maintaining excellent flexibility and long term performance. Lunatec Motion A12 is widely used as a top layer, cushioning insert, or lining material in orthotic and orthopaedic applications.
Material specification
-
Hardness: approx. 12 Shore A
-
Density: approx. 0.13 g/cm³
-
Surface: smooth
-
Edges: trimmed for clean processing
-
Structure: closed cell expanded EVA
-
Thermoforming temperature: 110°C to 130°C (230°F to 266°F)
-
Bonding: compatible with standard EVA adhesives
Available formats
Format 1100 × 700 mm (43.3 inch × 27.5 inch)
Format 1400 × 1100 mm (55.0 inch × 43.3 inch)
Thicknesses
Intended applications
-
Foot orthotics and insoles
-
Cushioning layers in inner shoes
-
Top cover layers for orthotic devices
-
Pressure relief for sensitive feet
-
Diabetic and neuropathic foot care
-
Rheumatoid and painful joint conditions
-
Cushioning in orthoses
-
Functional lining for support orthoses and corsets
-
Protection of high pressure areas
Key properties
-
Extremely soft bedding material
-
Excellent damping and cushioning
-
Absorbs shear forces in the horizontal load plane
-
Helps reduce pain during walking
-
Flexible and comfortable
-
Closed cell hygienic structure
-
Durable and washable
-
Suitable for sensitive and diabetic feet
Processing notes
-
Use standard EVA bonding methods
-
Adjust contact pressure to suit the softness of the material
-
Thermoform at 110°C to 130°C (230°F to 266°F)
-
Avoid excessive pressure during forming to maintain cushioning properties
nora® Lunatec Motion A12 is an ideal material for orthotic, prosthetic, and orthopaedic footwear workshops requiring maximum comfort, pressure relief, and shear force protection, especially for diabetic, rheumatic, and highly sensitive patients.
