Description

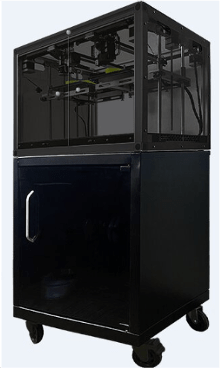

The Qaadir 3D Printer for Foot Orthotics is a high-speed, dual-platform 3D printing system developed specifically for the production of custom foot orthotics, insoles, and flexible orthopedic components. Designed for orthotic clinics, laboratories, and manufacturing facilities, the printer combines ultra-fast printing speed, stable material feeding, and multi-hardness material capability to deliver reliable, repeatable production of patient-specific devices.
Using hot-melt extrusion technology, the system supports TPU, TPE, PLA, ABS, and other thermoplastic materials commonly used in orthotic manufacturing. The dual independent workstations allow continuous production, enabling one platform to print while the other is prepared, significantly increasing productivity in busy workshops.
The fully enclosed vertical cabinet design ensures safe operation, stable temperature control, and reduced environmental interference, while the mobile floor-standing structure allows the printer to be easily positioned within clinic or lab environments.
With the ability to print multi-density orthotic structures, the Qaadir Orthotic 3D Printer is ideal for modern digital workflows including CAD/CAM foot orthotics, diabetic insoles, sports insoles, and rehabilitation devices.
Key Features
-
Designed specifically for foot orthotics and insole production
-
Dual independent printing platforms for continuous workflow
-
Ultra-high speed printing for high-volume production
-
Multi-material and multi-hardness printing capability
-
Stable continuous material feeding system
-
Fully enclosed vertical cabinet for safe operation
-
Automatic levelling for consistent print quality
-
Replaceable nozzle sizes for different resolutions
-
Compact floor-standing design with mobility
-
CE certified safety compliant system
Technical Specifications
-
Printing Process: Hot melt extrusion moulding (FDM)
-
Single Platform Build Volume: ≥ 200 × 320 × 200 mm
-
Machine Type: Floor-standing, dual-platform independent workstation
-
Printing Speed: 60 – 120 mm/s
-
Production Speed: Fastest approx. 37 minutes / pair (EU size 40 reference)
-
Printer Weight: ≥ 50 kg
-
Machine Size: Approx. 700 × 490 × 1220 mm to 720 × 520 × 1250 mm
-
Nozzle Sizes: 0.4 / 0.6 / 0.8 / 1.0 mm replaceable
-
Positioning Accuracy:
-
X: 0.11 mm
-
Y: 0.11 mm
-
Z: 0.025 mm
-
Extrusion Temperature Range: 175 – 260 °C
-
Heated Bed Temperature: 0 – 100 °C
-
Supported Materials: TPU, TPE, PLA, ABS, and similar filaments
-
Filament Diameter: 1.75 ± 0.03 mm
-
Feeding Mode: Continuous proximity material supply
-
Levelling Mode: Automatic levelling with manual adjustment option
-
Cooling System: Air-cooled with thermistor temperature control
-
Input Voltage: AC 100–220 V / 50–60 Hz
-
Maximum Power Consumption: < 700 W
-
Power Control: Dual power switch, independent platform control
-
Certification: CE safety certified
-
Operating Environment: Office / clinic / laboratory compatible
Typical Applications in Prosthetics & Orthotics
-
Custom foot orthotics
-
Diabetic insoles
-
Sports performance insoles
-
Multi-density orthotic devices
-
Rehabilitation footwear inserts
-
Digital orthotic CAD/CAM workflows
The Qaadir 3D Printer for Foot Orthotics provides a modern digital manufacturing solution for clinics and laboratories looking to transition from traditional milling to high-speed additive manufacturing while maintaining accuracy, flexibility, and production efficiency.
