Description

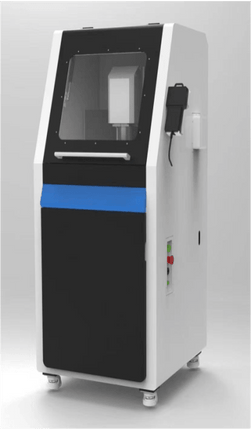

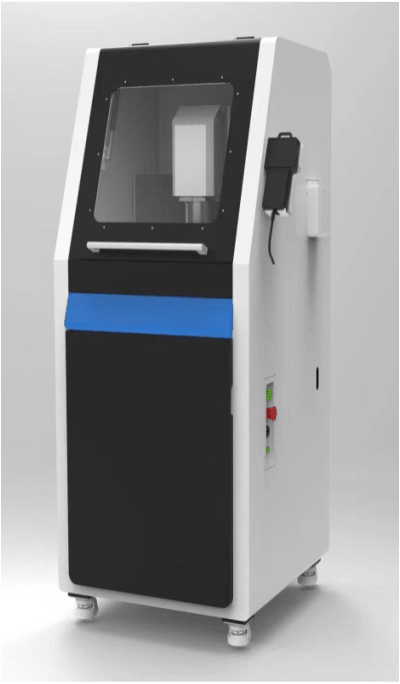

The Qaadir EVA Milling Machine is a high-precision CNC engraving system designed specifically for the batch production of EVA insoles, orthotic footbeds, and flat relief components used in prosthetic and orthotic workshops. Built for reliability and accuracy, this compact yet powerful milling unit delivers fast processing speeds, consistent repeatability, and excellent surface finish, making it ideal for clinics, laboratories, and manufacturing facilities producing custom or semi-custom orthotic devices.
Designed with a rigid cast-iron structure and precision drive system, the machine provides stable operation during continuous production, ensuring accurate carving of EVA blocks, foam materials, and similar orthotic substrates. The high-speed water-cooled spindle allows smooth cutting at high RPM, reducing vibration and improving tool life while maintaining tight dimensional tolerances.
The Qaadir EVA Milling Machine is particularly suited for workshops producing EVA insoles, AFO footplates, shoe inserts, and relief-type orthotic components where flat or layered machining is required.
Key Features
-
High-precision CNC engraving for EVA insoles and orthotic components
-
Suitable for batch production in orthotic laboratories
-
Stable cast-iron construction for vibration-free machining
-
High-speed water-cooled spindle for smooth cutting
-
Compact footprint suitable for clinic or workshop use
-
Easy clamping system for fast material changeover
-
Designed for EVA, foam, and similar orthotic materials
-
Reliable performance for continuous daily production
Technical Specifications
-
X / Y / Z Stroke: 400 × 300 × 120 mm
-
Relief Processing Size: 400 × 300 × 100 mm
-
3D Processing: Not supported (relief / flat machining only)
-
Machine Dimensions: 710 × 740 × 1640 mm
-
Weight: Approx. 280 kg
-
Frame Material: Integral cast iron with square steel bracket
-
Clamping Method: Top pressure / clamp / adhesive fixing
-
Engraving Precision: ± 0.01 mm
-
Spindle Speed: 0 – 24,000 rpm
-
Processing Speed: 0 – 3000 mm/min
-
Spindle Power: 1500 W water-cooled frequency conversion spindle
-
Drive Mode: Precision drive motor
-
Tool Shank Diameter: 2.3 – 6 mm
-
Voltage: AC 220V / 50–60 Hz
-
Maximum Power Consumption: 3 kW
Typical Applications in Prosthetics & Orthotics
The Qaadir EVA Milling Machine provides an efficient and affordable CNC solution for orthotic workshops looking to increase production capacity while maintaining high accuracy and repeatability.
