Description
Professional 44-piece HSS metric thread-cutting set for creating, repairing and restoring internal and external threads in prosthetic, orthotic and general workshop applications.

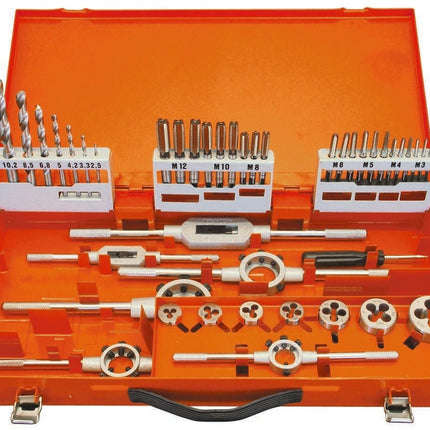

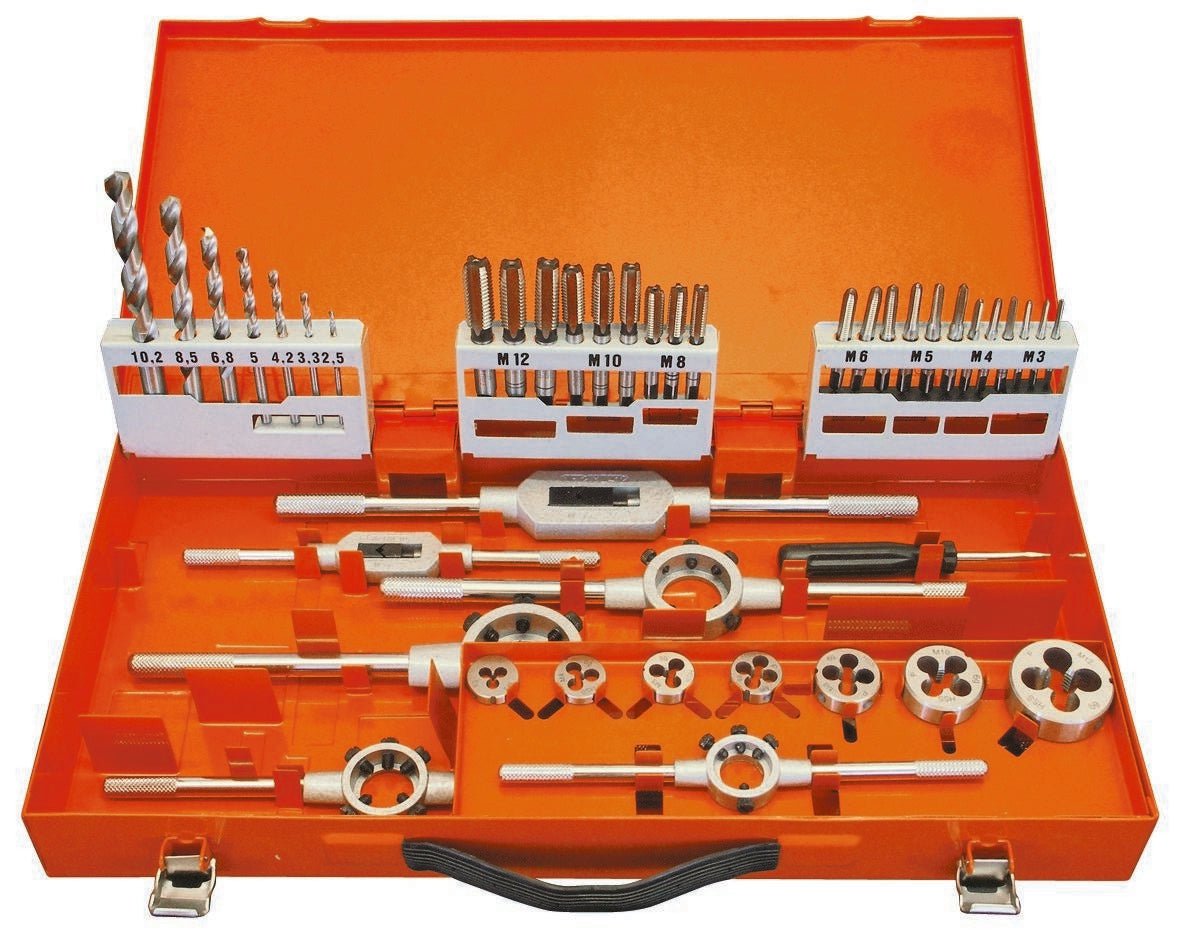

The Qaadir Tap & Die Set – 44 Piece provides a comprehensive selection of professional hand taps, dies, core drill bits and thread-cutting accessories covering the commonly used metric sizes from M3 to M12.
Manufactured from High-Speed Steel (HSS), the cutting tools provide the hardness, cutting performance and wear resistance required for regular workshop use. The set is particularly useful for fabrication, equipment maintenance, component modification and repairing damaged threads within a P&O workshop.
Each thread size includes a three-piece hand tap set, allowing threads to be progressively cut by hand for controlled and accurate results. The corresponding HSS dies provide the capability to produce or restore external threads.
Key Features
-
44-Piece Professional Set: Comprehensive solution for internal and external metric thread cutting.
-
Metric Range M3–M12: Covers seven commonly required workshop thread sizes.
-
HSS Hand Taps: Includes 21 HSS taps manufactured to DIN 352.
-
Three Taps per Size: Progressive three-piece hand tap sets for M3, M4, M5, M6, M8, M10 and M12.
-
HSS-G Dies: Seven ground HSS dies manufactured to DIN 223 B, covering M3 through M12.
-
Matching Core Drill Bits: Includes seven correctly sized HSS-G drill bits for preparing the tapping holes.
-
Die Holders: Five sizes for securely holding the supplied threading dies.
-
Tap Wrenches: Two hand tap wrenches provide controlled manual thread cutting.
-
Thread Gauge: Included for identifying and checking thread pitch.
-
Screwdriver Included: Provides an additional tool for adjustment of the supplied holders.
-
Metal Storage Case: Keeps the complete set organised, protected and readily accessible.
-
P&O Workshop Application: Ideal for fabrication jigs, machinery, fixtures, prosthetic and orthotic components and general equipment maintenance.
Thread Sizes
M3 / M4 / M5 / M6 / M8 / M10 / M12
Core Drill Sizes
The set includes the corresponding HSS-G tapping drill sizes:
Ø2.5 / 3.3 / 4.2 / 5.0 / 6.8 / 8.5 / 10.2 mm.
Set Contents
| Component |
Quantity / Sizes |
| HSS Hand Taps DIN 352 |
21 pcs – 3 each in M3, M4, M5, M6, M8, M10, M12 |
| HSS-G Dies DIN 223 B |
7 pcs – M3, M4, M5, M6, M8, M10, M12 |
| HSS-G Core Drill Bits |
7 pcs – Ø2.5, 3.3, 4.2, 5.0, 6.8, 8.5, 10.2 mm |
| Die Holders |
5 pcs – 20×5, 20×7, 25×9, 30×11, 38×14 mm |
| Tap Wrenches |
2 pcs – No. 1 & No. 2 |
| Thread Gauge |
1 pc |
| Screwdriver |
1 pc |
| Storage |
Metal case |
| Total |
44 pieces |
The Qaadir 44 Piece HSS Tap & Die Set provides P&O technicians with a complete professional solution for producing new threads, restoring damaged threads and carrying out routine fabrication and workshop maintenance.
Qaadir — practical professional tools for prosthetic and orthotic fabrication.
